Output Shaft End Play

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

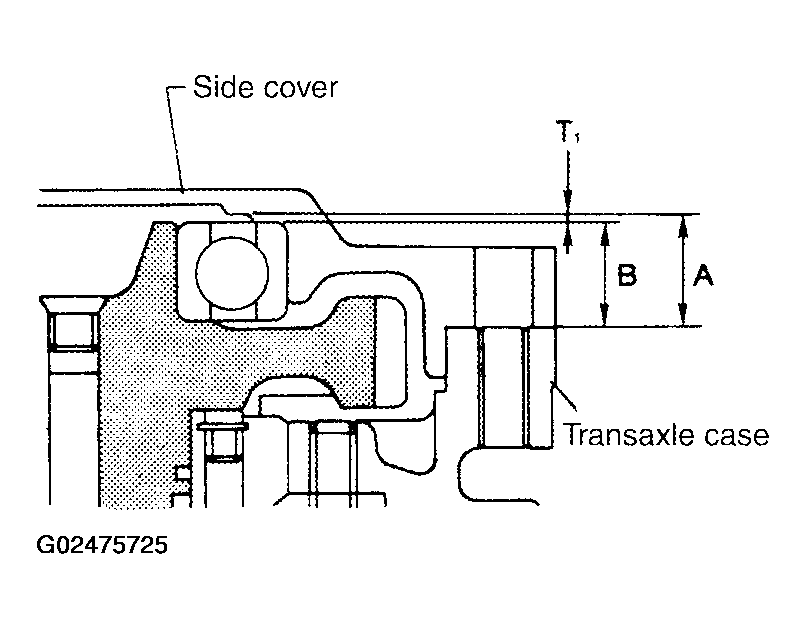

Measure clearance between side cover and the end of the output shaft bearing.
Select proper thickness of adjusting shim so that clearance is within specifications.

Fig 1: Measuring Clearance Between Side Cover & End Of Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.

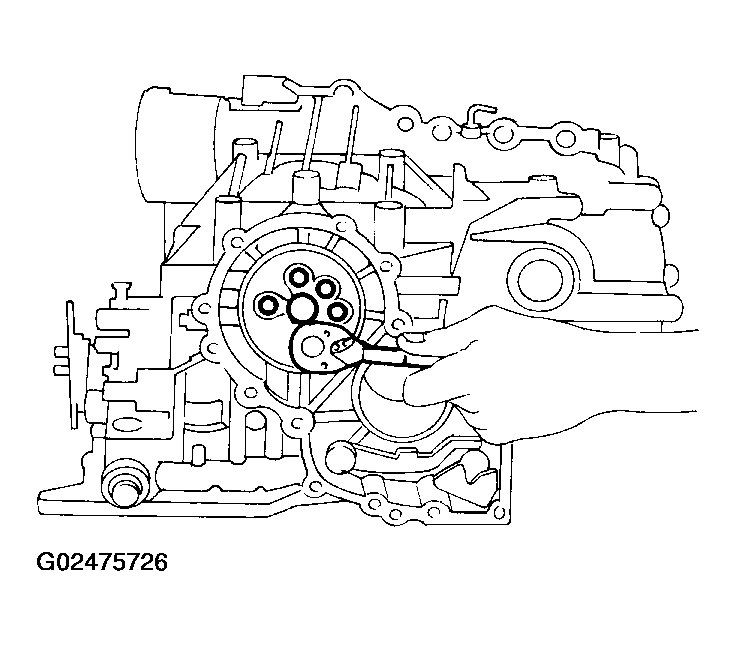

Install bearing retainer for output shaft.

Fig 2: Installing Output Shaft Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

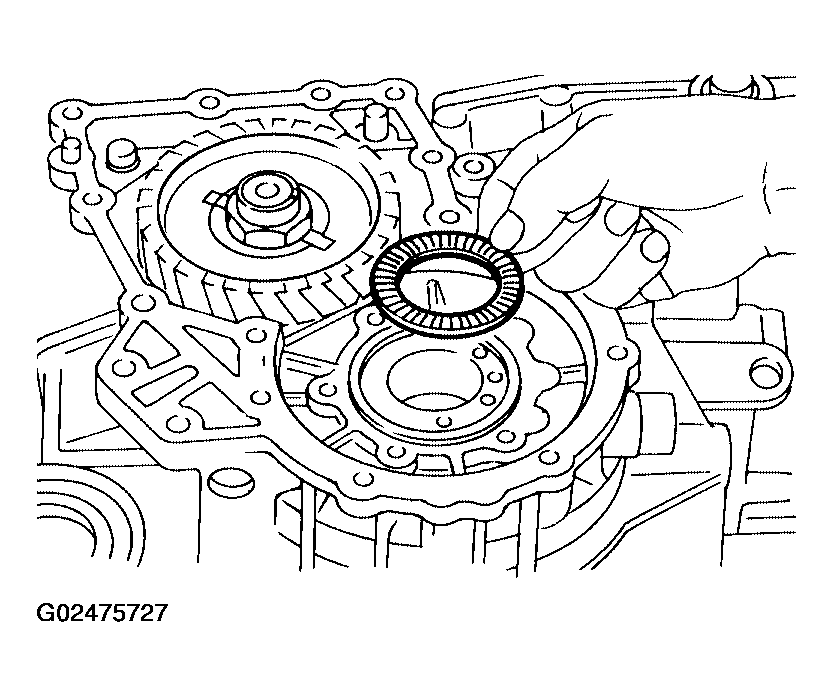

Install needle bearing on bearing retainer.

Fig 3: Installing Needle Bearing On Bearing Retainer
Courtesy of NISSAN MOTOR CO., U.S.A.

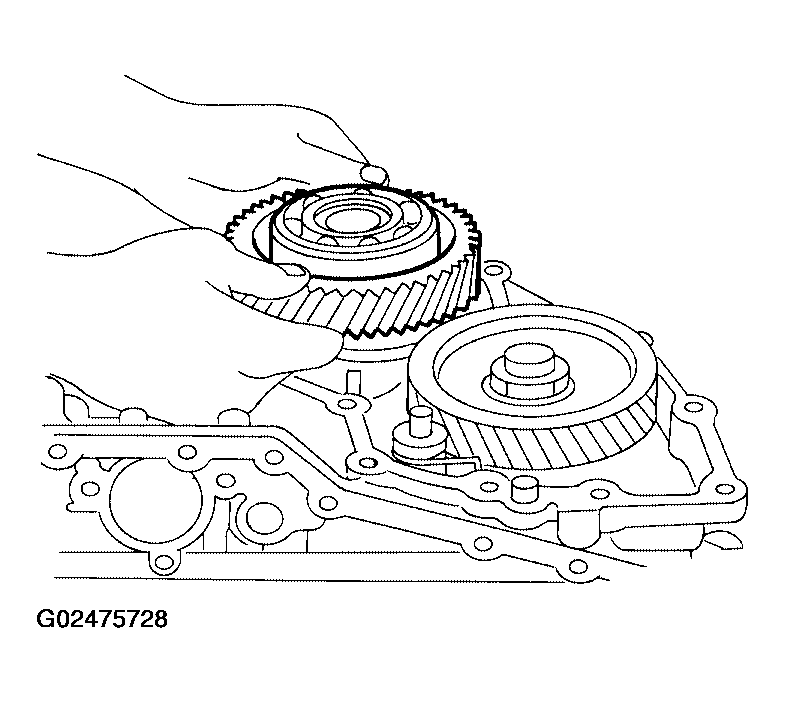

Install output shaft on transaxle case.

Fig 4: Installing Output Shaft On Transaxle Case
Courtesy of NISSAN MOTOR CO., U.S.A.

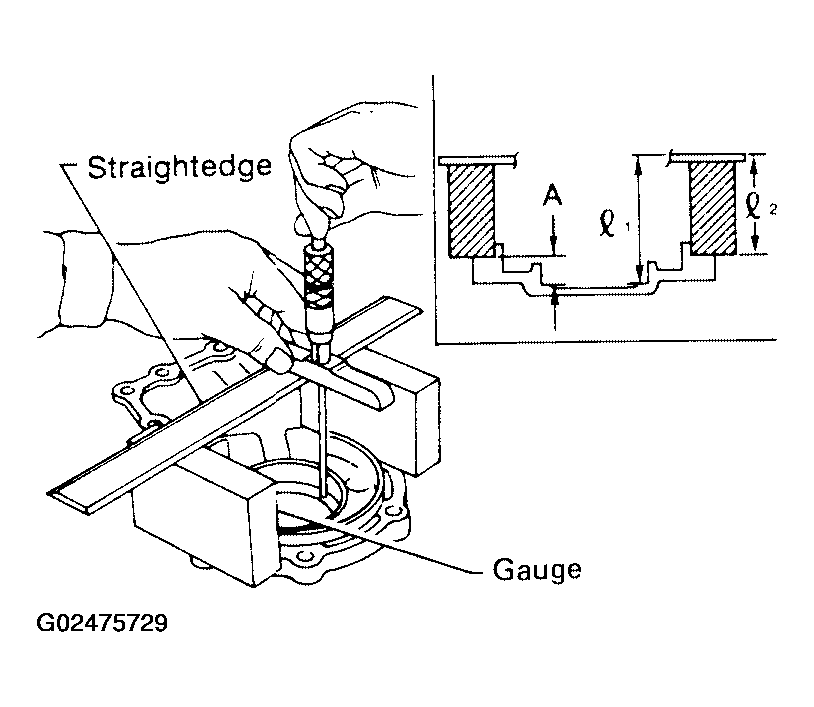

Measure dimensions "l 1" and "l 2" at side cover and then calculate dimension "A".
- Measure dimension "l 1" and "l 2" in at least two places.
  - "A": Distance between transaxle case fitting surface and adjusting shim mating surface.
  - A= l1 - l2
  - l2: Height of gauge
  Fig 5: Measuring Dimensions At Side Cover
  Courtesy of NISSAN MOTOR CO., U.S.A.

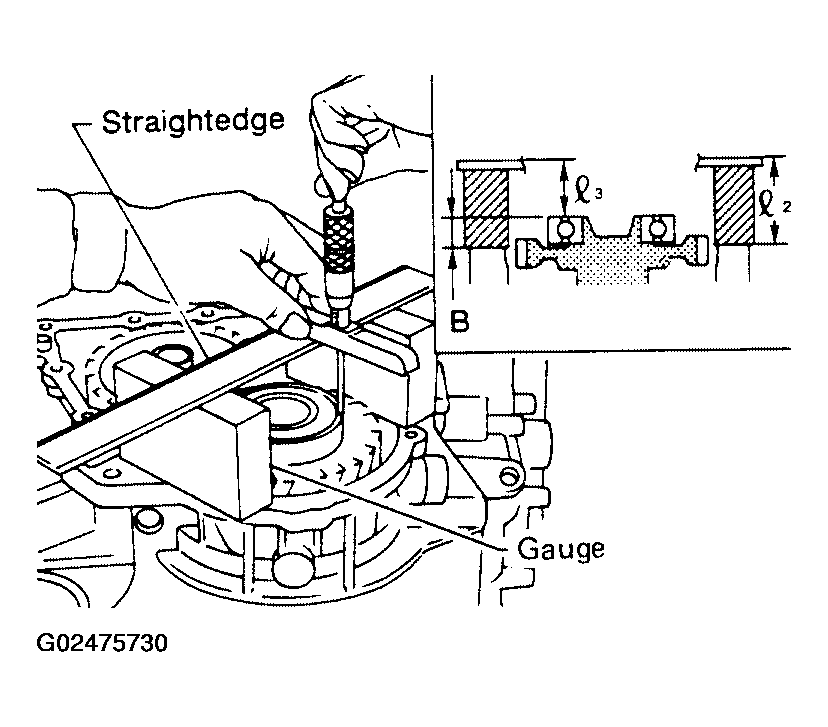

Measure dimensions "l 2" and "l 3" and then calculate dimension "B".
- Measure "l 2" and "l 3" in at least two places.
  - "B": Distance between the end of output shaft bearing outer race and the side cover fitting surface of transaxle case.
  - B=l 2 - l 3
  - l 2: Height of gauge
  Fig 6: Measuring Dimensions
  Courtesy of NISSAN MOTOR CO., U.S.A.
Select proper thickness of adjusting shim so that output shaft end play (clearance between side cover and output shaft bearing) is within specifications.
- Output shaft end play (A-B): 0 - 0.15 mm (0 - 0.0059 in)
- Output shaft end play adjusting shims: Refer to " OUTPUT SHAFT ADJUSTING SHIMS ".

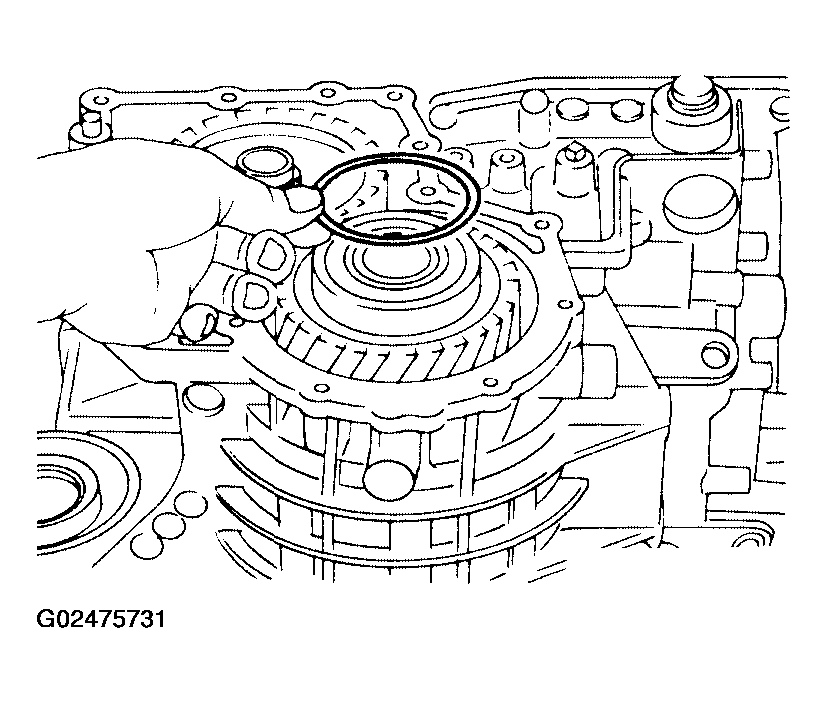

Install adjusting shim on output shaft bearing.

Fig 7: Installing Adjusting Shim On Output Shaft Bearing
Courtesy of NISSAN MOTOR CO., U.S.A.
