Wiring Diagram - TURN -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

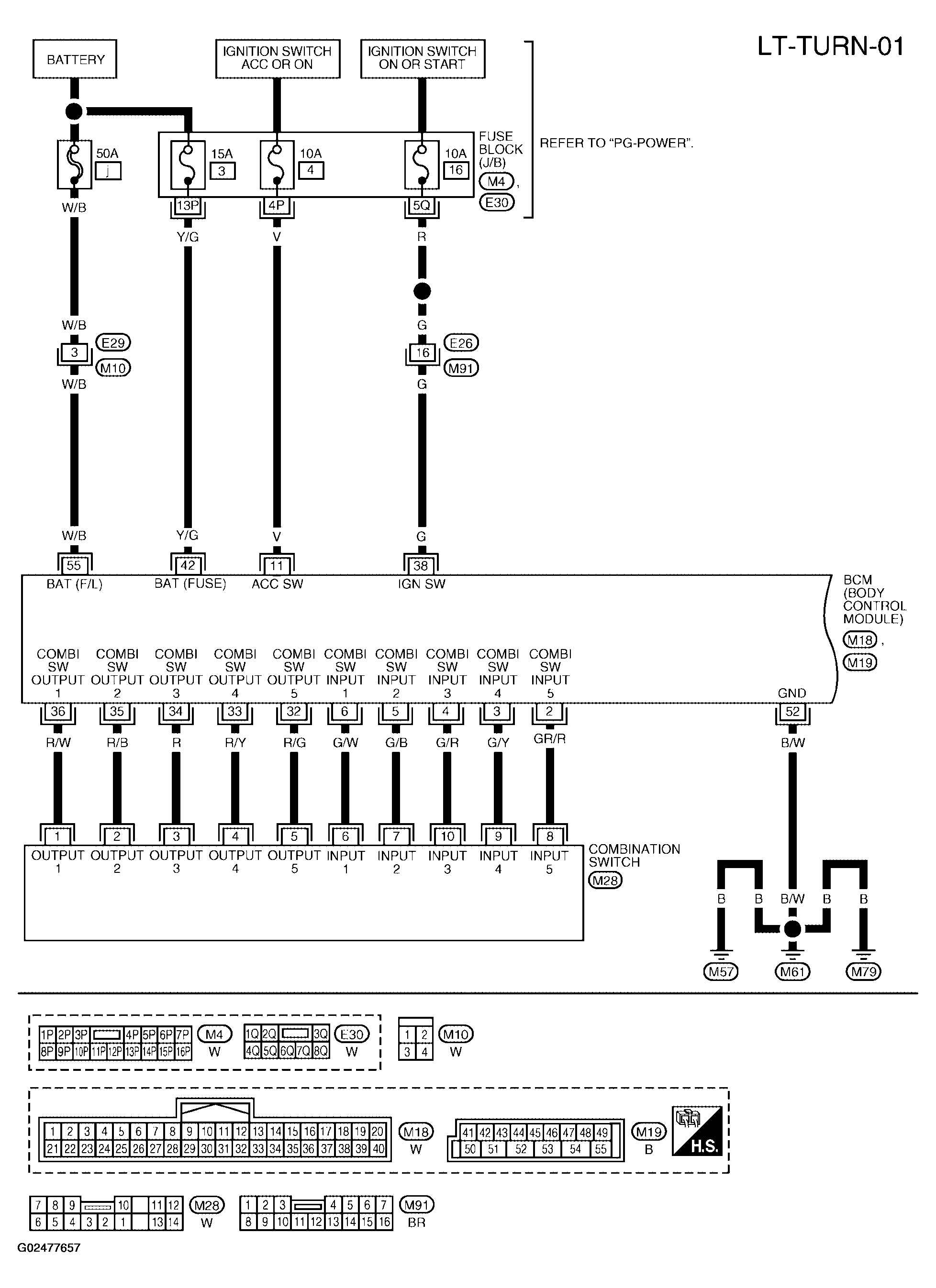

Fig 1: Turn Signal & Hazard Warning Lamps - Wiring Diagram (LT-TURN-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

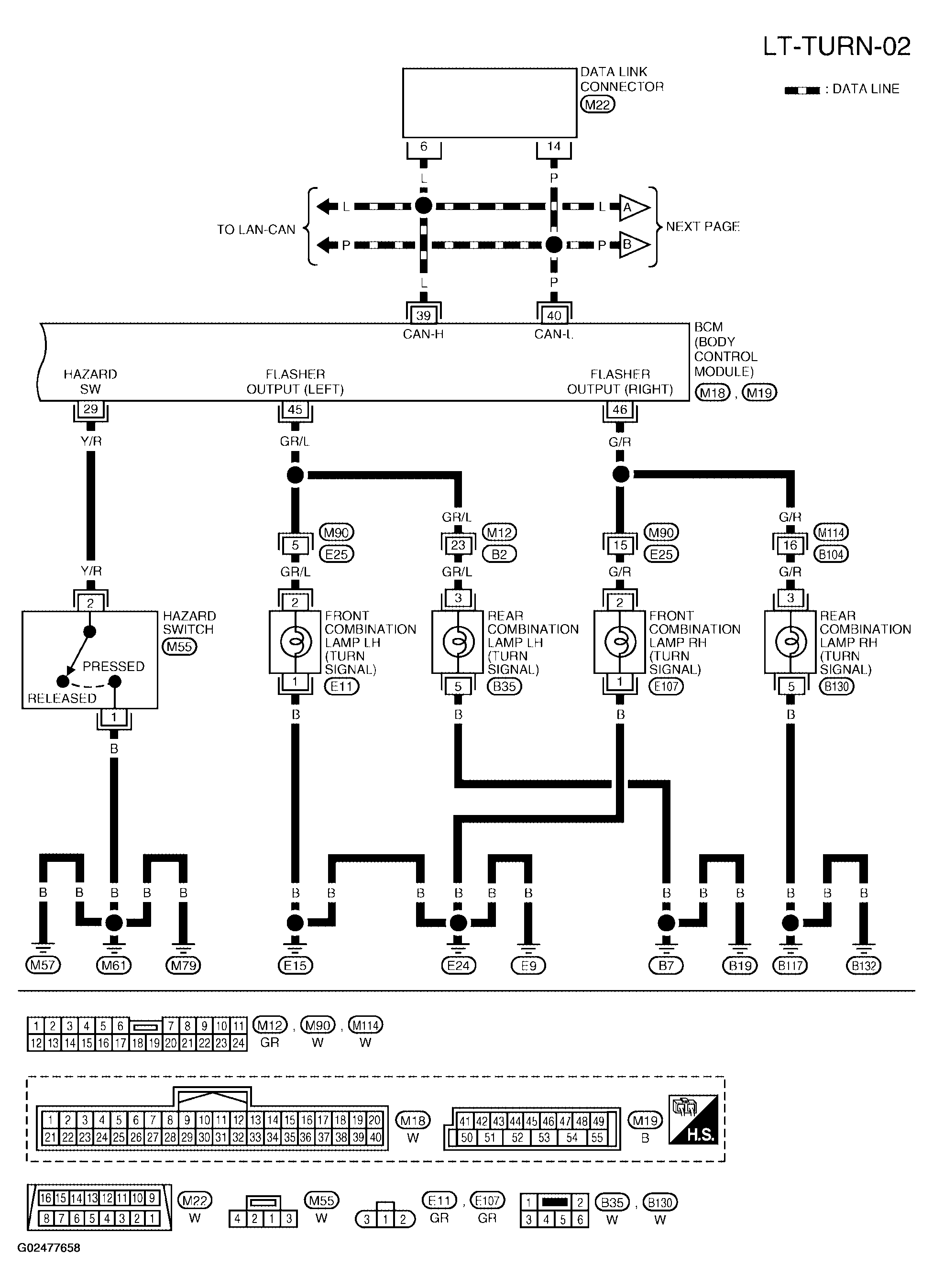

Fig 2: Turn Signal & Hazard Warning Lamps - Wiring Diagram (LT-TURN-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

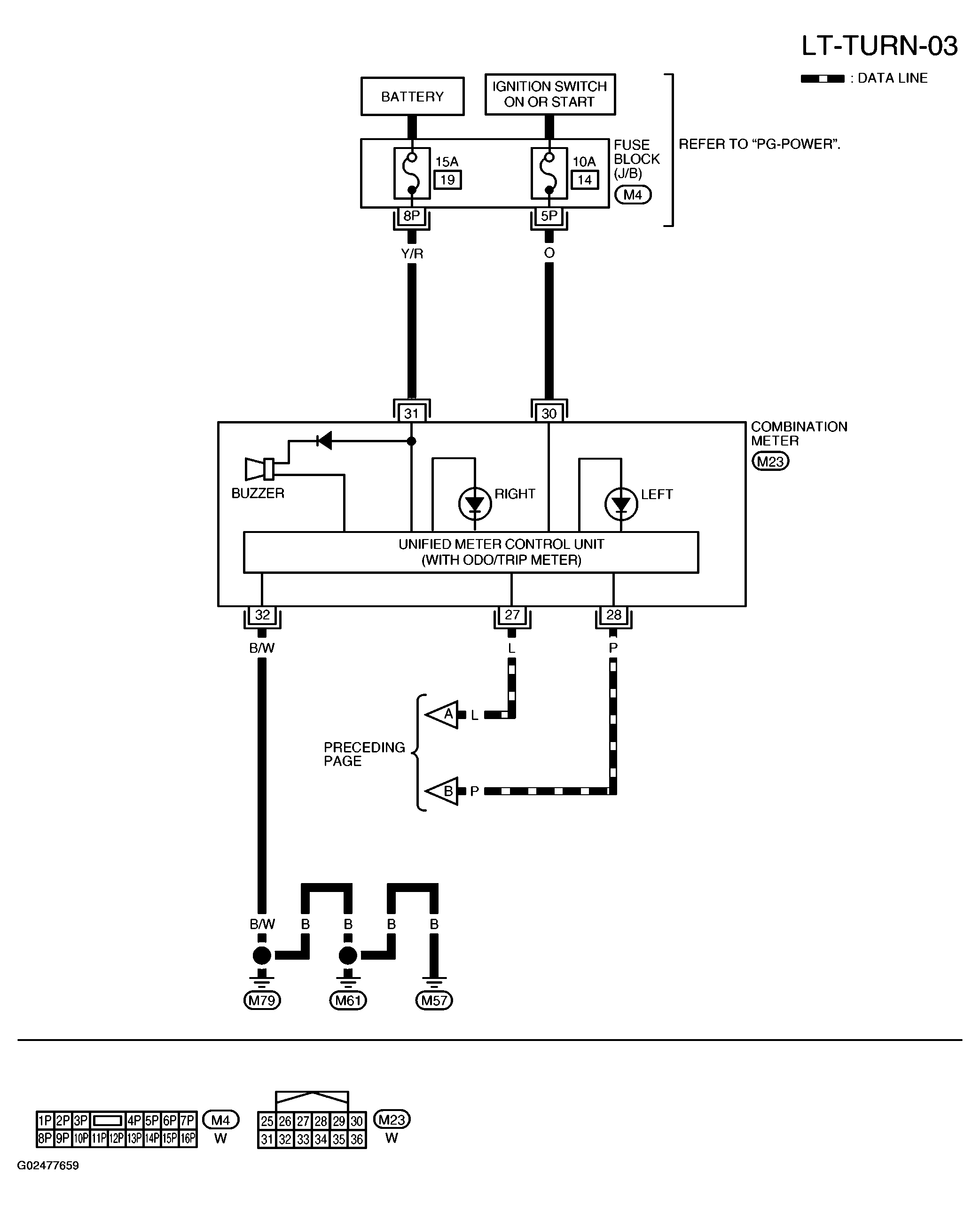

Fig 3: Turn Signal & Hazard Warning Lamps - Wiring Diagram (LT-TURN-03)

Courtesy of NISSAN MOTOR CO., U.S.A.
