Rear Turn Signal Lamp Does Not Operate

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CHECK TAIL LAMPS AND STOP LAMPS
Check bulb standard of each turn signal lamp is correct. Refer to "EXTERIOR LAMP ".

OK or NG
- OK: GO TO 2.
- NG: Replace turn signal lamp bulb. Refer to "BULB REPLACEMENT (REAR TURN SIGNAL LAMP) ".
CHECK TURN SIGNAL LAMPS CIRCUIT
1. Disconnect BCM connector and rear combination lamp connector.
2. Check continuity between BCM harness connector M19 terminal 46 (G/R) and rear combination lamp RH harness connector B130 terminal 3 (G/R).
  46 (G/Y) - 3 (G/R): Continuity should exist.
3. Check continuity between BCM harness connector M19 terminal 45 (GR/L) and rear combination lamp LH harness connector B35 terminal 3 (GR/L).

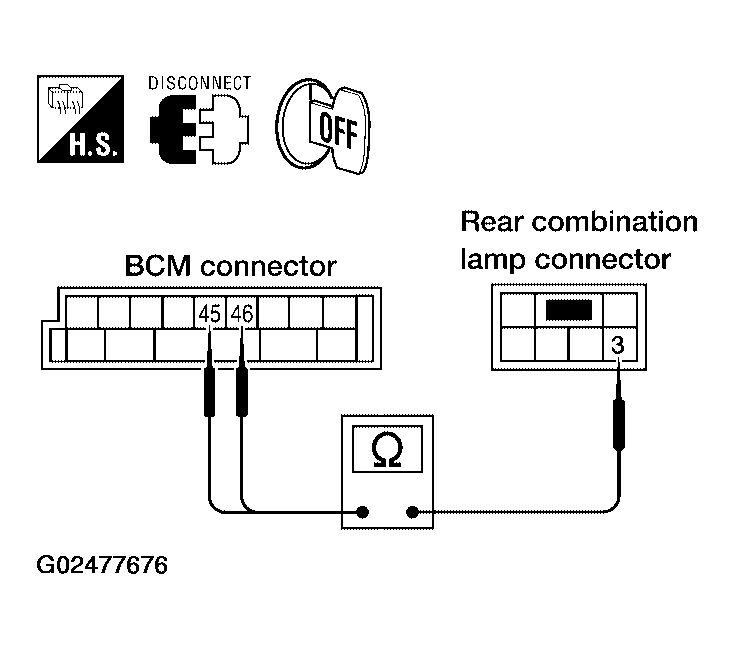

  Fig 1: Checking Continuity Between BCM Harness Connector M19 Terminal 45 & Rear Combination Lamp LH Harness Connector B35 Terminal 3
  Courtesy of NISSAN MOTOR CO., U.S.A.

  45 (GR/L) - 3 (GR/L): Continuity should exist.
OK or NG
- OK: GO TO 3.
- NG: Repair harness or connector.
CHECK GROUND CIRCUIT
Check continuity between rear combination lamp harness connector B35 LH and B130 RH terminal 5 (B) and ground.

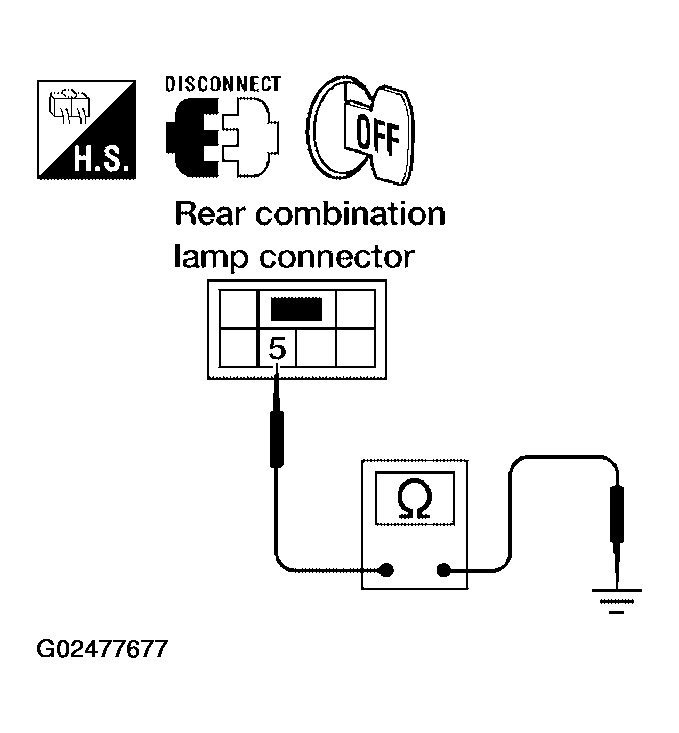

Fig 2: Checking Continuity Between Rear Combination Lamp Harness Connector B35 LH And B105 RH Terminal 5 (B) & Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

5 (B) - Ground: Continuity should exist.

OK or NG
- OK: Check rear combination lamp connector for proper connection. Repair as necessary.
- NG: Repair harness or connector.
