Bulb Replacement, Removal And Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove back door upper finisher. Refer to "BACK DOOR UPPER FINISHER ".
  2. Remove rear washer nozzle.
  3. Disconnect connector.
  4. Remove 2 nuts and remove high-mounted stop lamp.
  5. Turn bulb socket counterclockwise to remove it from the high-mounted stop lamp housing.
  6. Pull bulb from socket.

Installation is in the reverse order of removal.

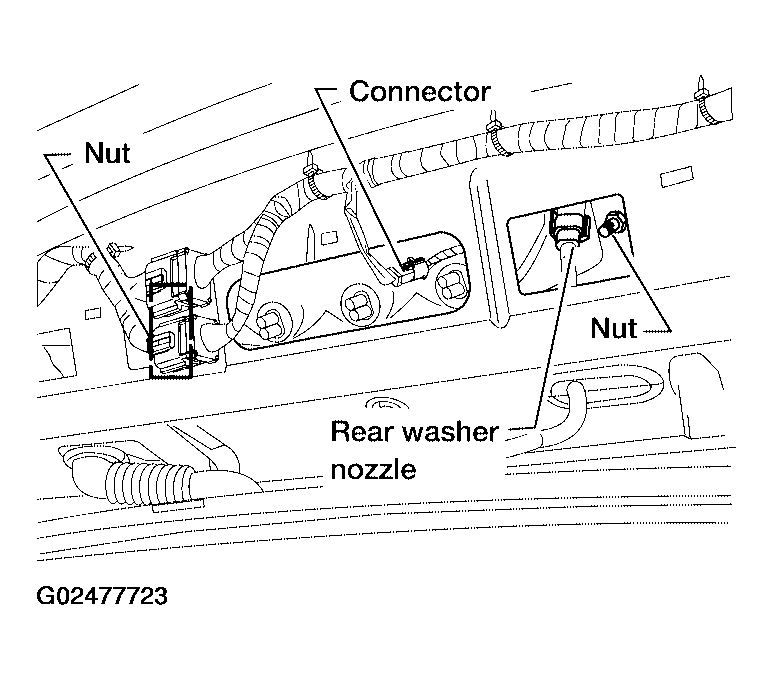

Fig 1: Removing Nuts & High-Mounted Stop Lamp
G02477723Courtesy of NISSAN MOTOR CO., U.S.A.
