All Interior Room Lamps Do Not Operate
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK POWER SUPPLY CIRCUIT
- All interior room lamps switch are OFF.
- Turn ignition switch ON.

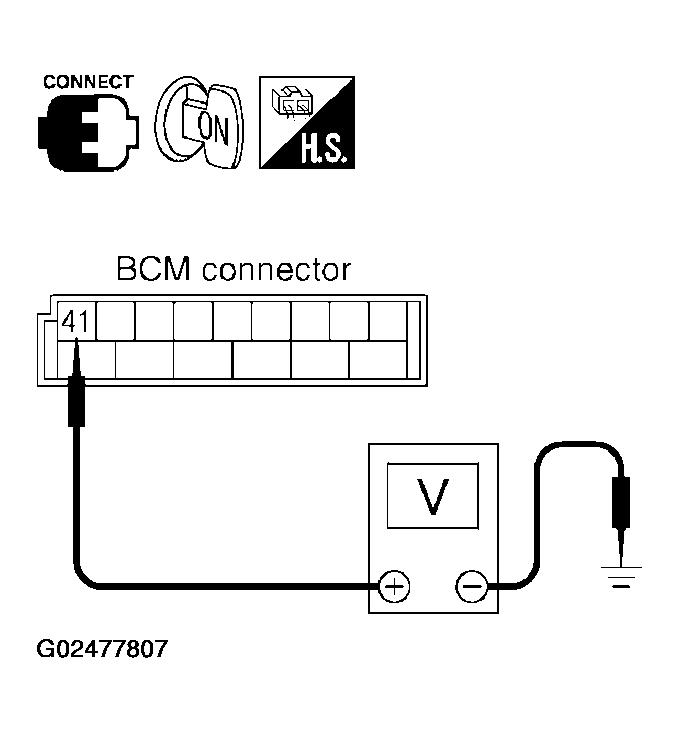

- Check voltage between BCM harness connector M19 terminal 41 (R/G) and ground.
Courtesy of NISSAN MOTOR CO., U.S.A.
41 (R/G) - Ground: Battery voltage should exist.
OK or NG
- OK: Repair harness or connector. In a case of making a short circuit, be sure to disconnect battery negative cable after repairing harness and then reconnect.
- NG: Replace BCM. Refer to "REMOVAL AND INSTALLATION OF BCM ".
