Wiring Diagram - ILL -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

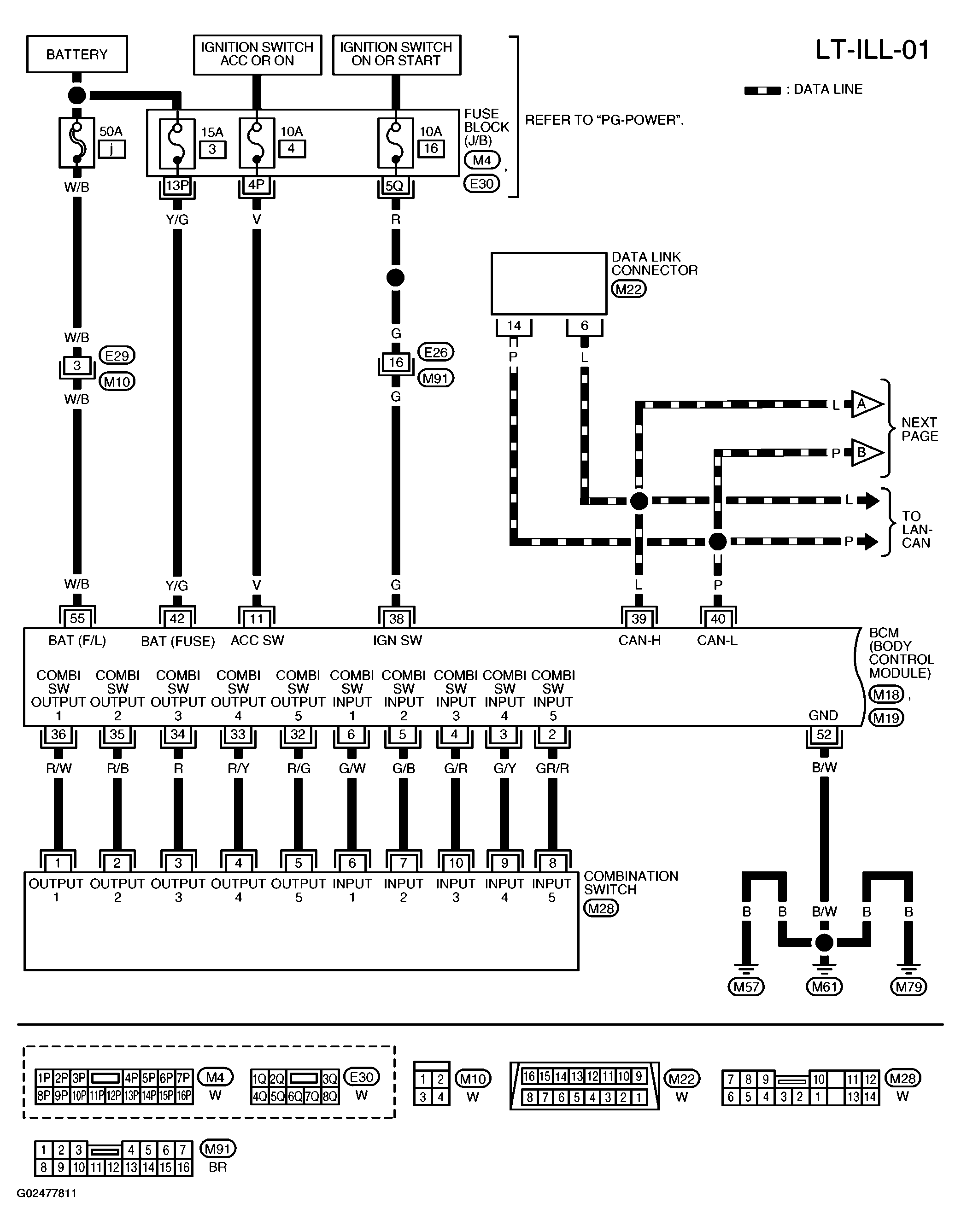

Fig 1: Illumination - Wiring Diagram - LT-ILL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

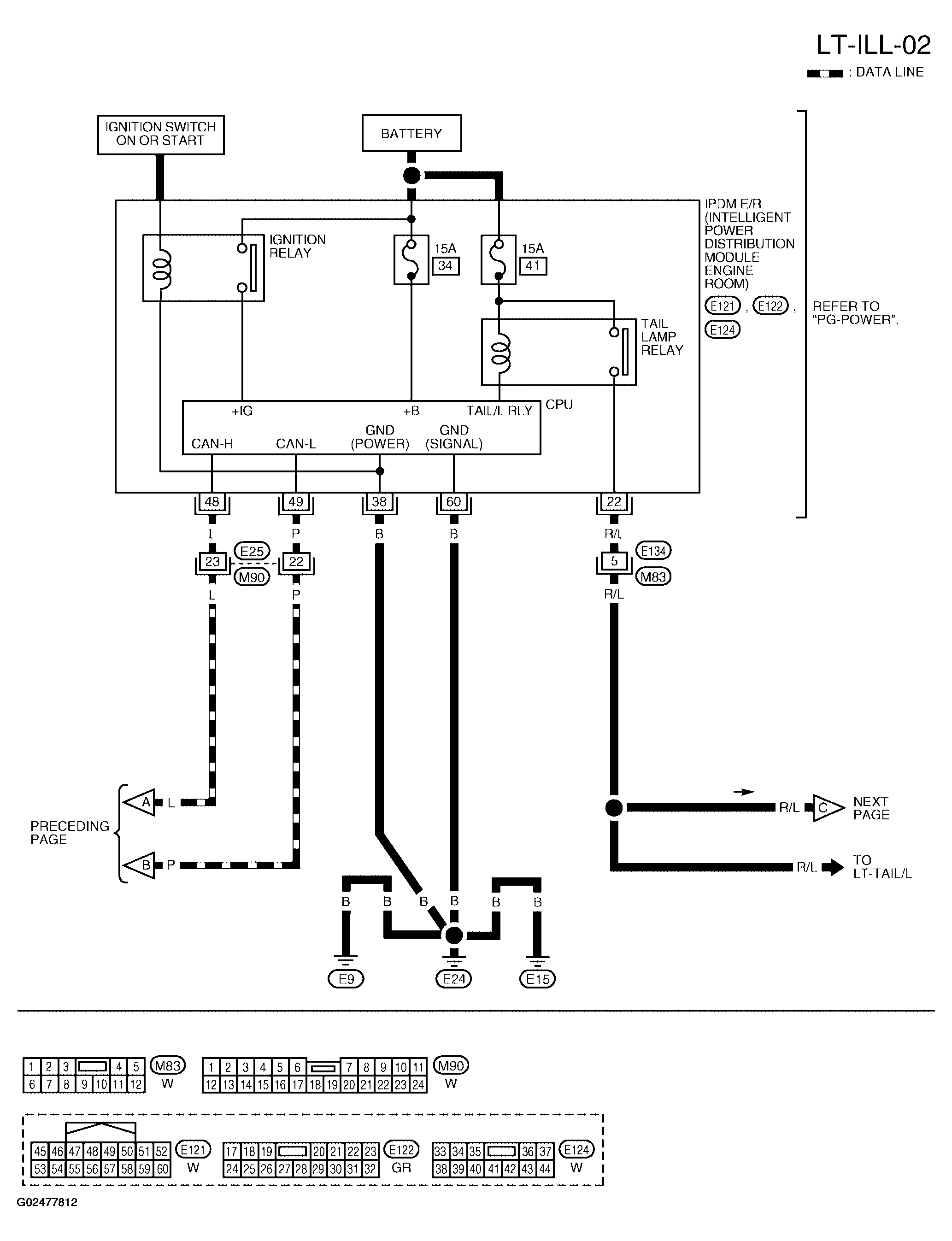

Fig 2: Illumination - Wiring Diagram - LT-ILL-02

Courtesy of NISSAN MOTOR CO., U.S.A.

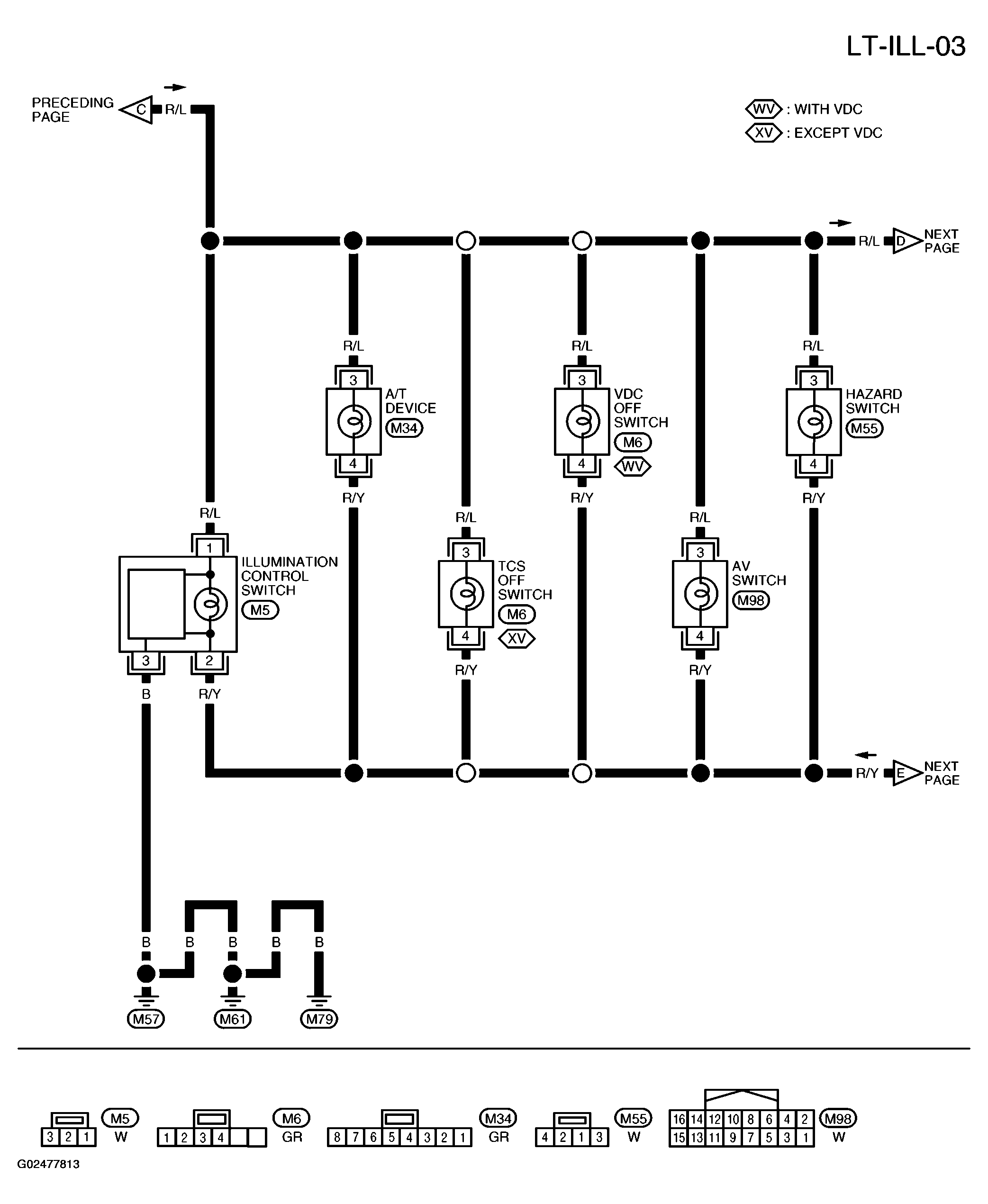

Fig 3: Illumination - Wiring Diagram - LT-ILL-03

Courtesy of NISSAN MOTOR CO., U.S.A.

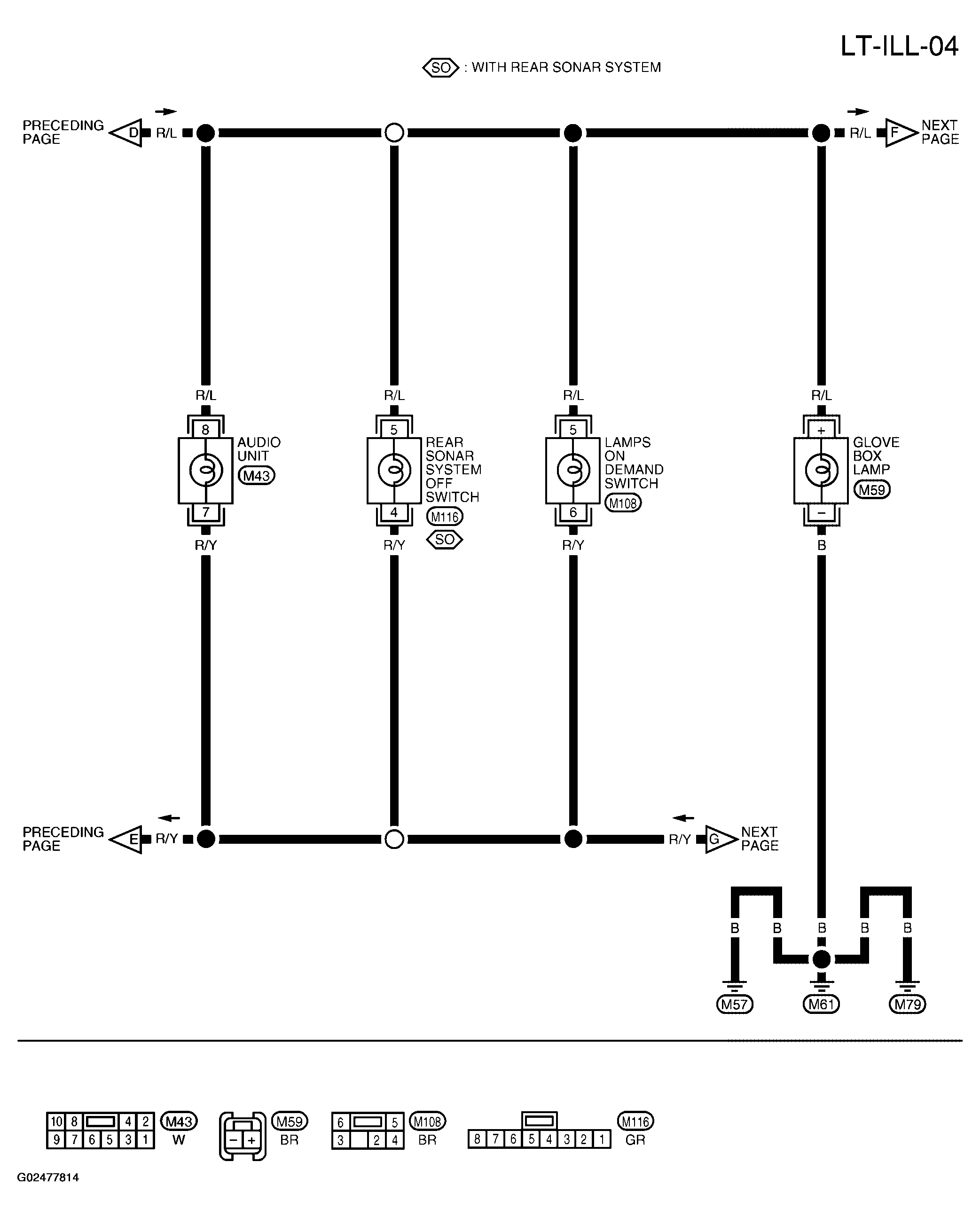

Fig 4: Illumination - Wiring Diagram - LT-ILL-04

Courtesy of NISSAN MOTOR CO., U.S.A.

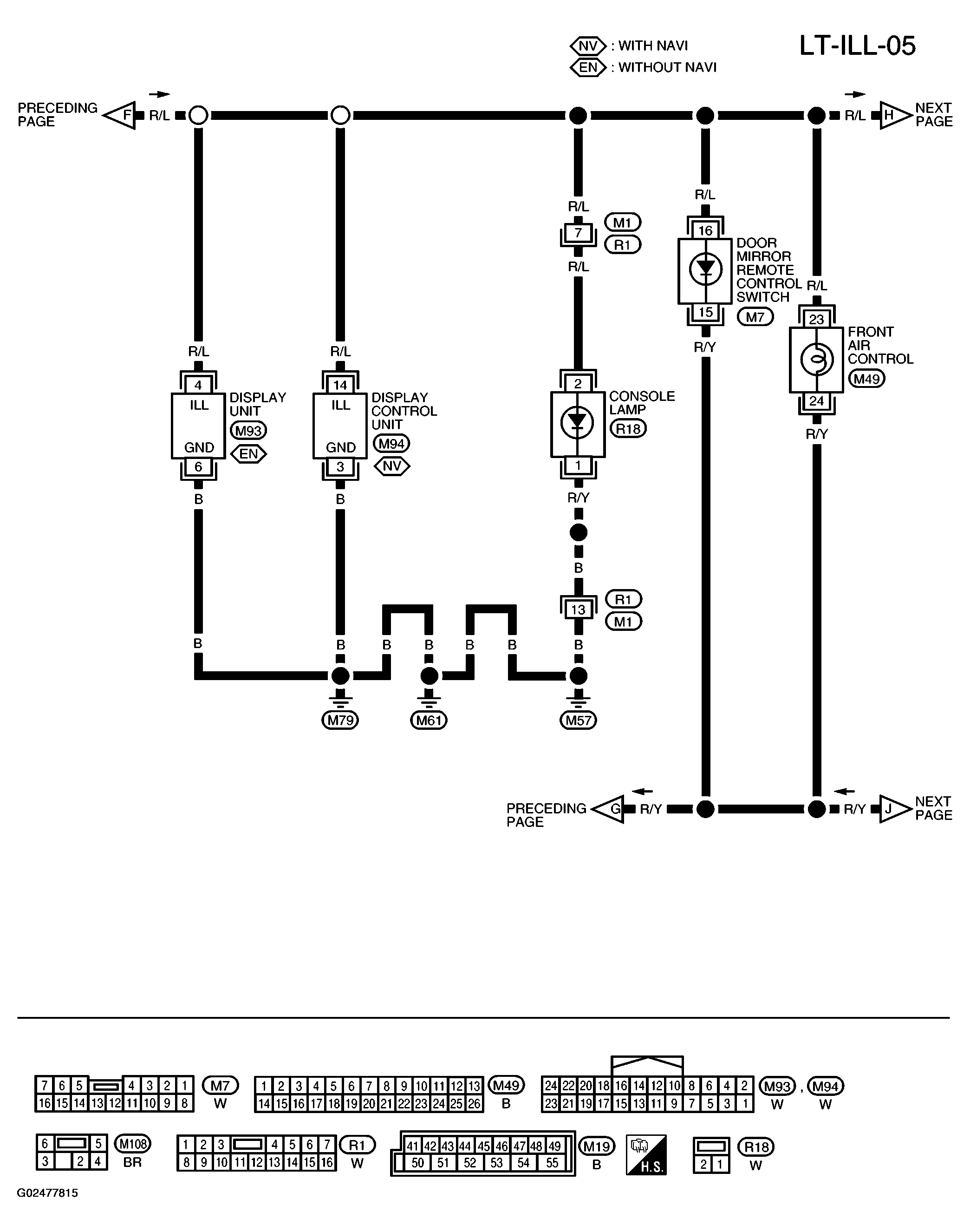

Fig 5: Illumination - Wiring Diagram - LT-ILL-05

Courtesy of NISSAN MOTOR CO., U.S.A.

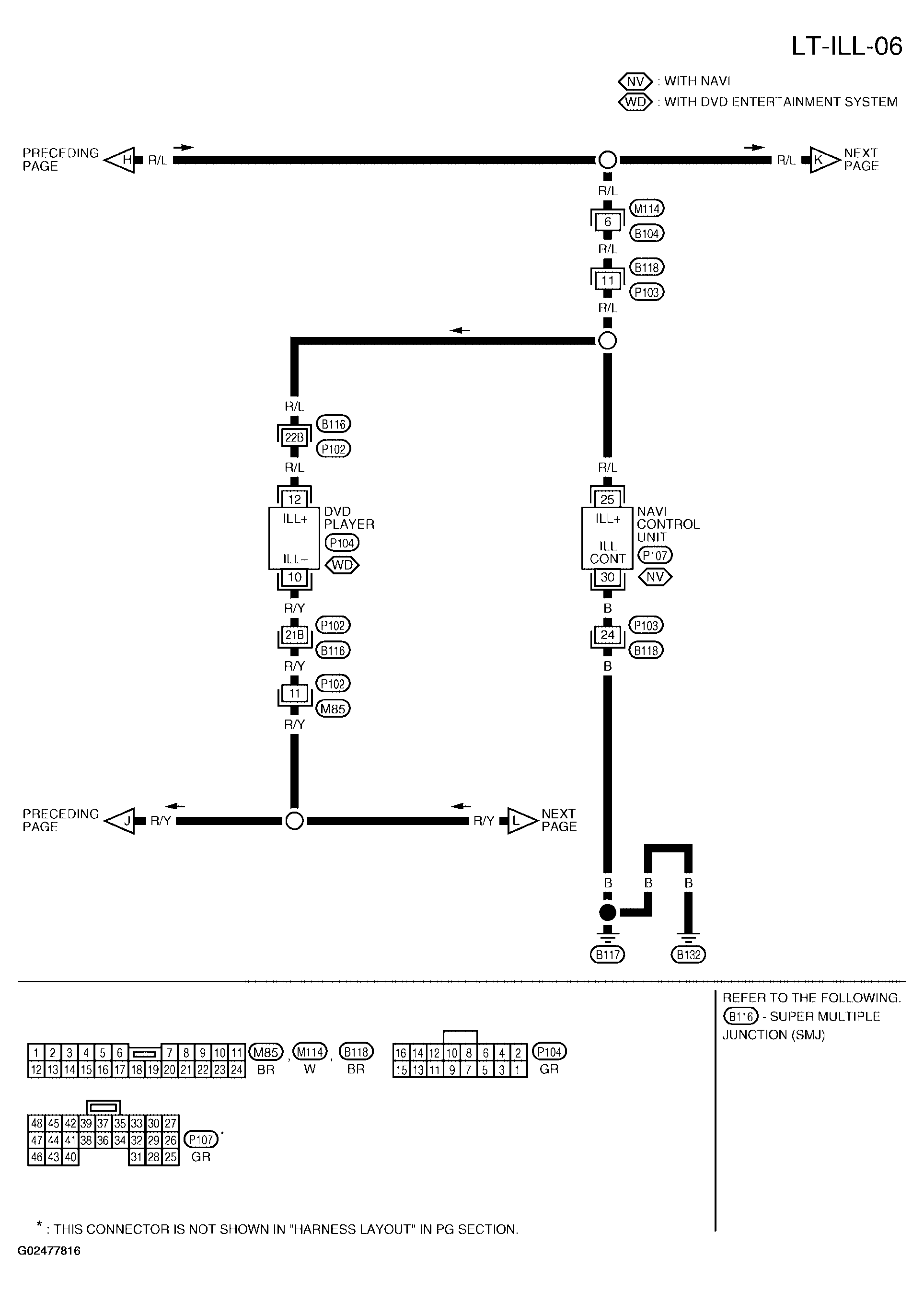

Fig 6: Illumination - Wiring Diagram - LT-ILL-06

Courtesy of NISSAN MOTOR CO., U.S.A.

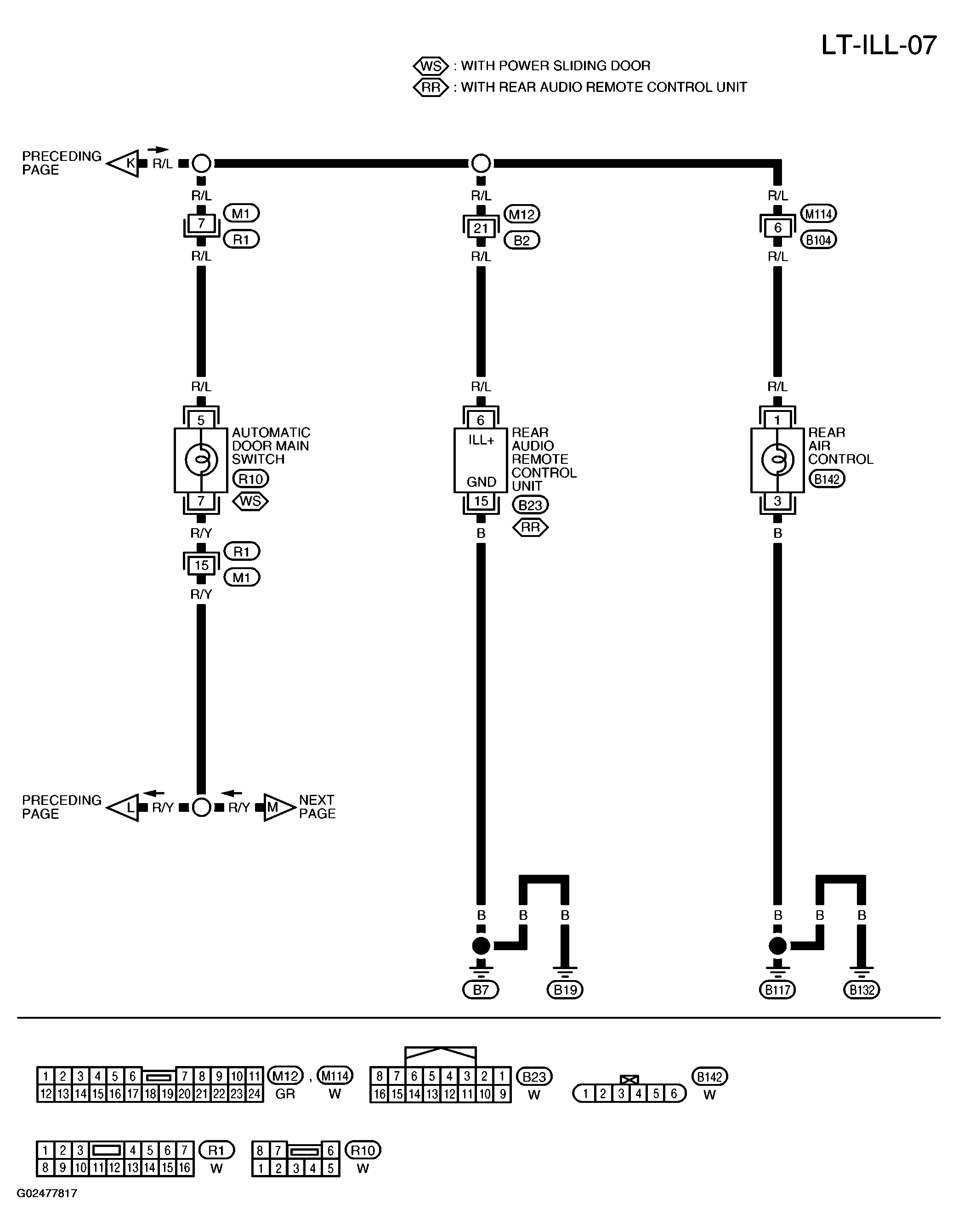

Fig 7: Illumination - Wiring Diagram - LT-ILL-07

Courtesy of NISSAN MOTOR CO., U.S.A.

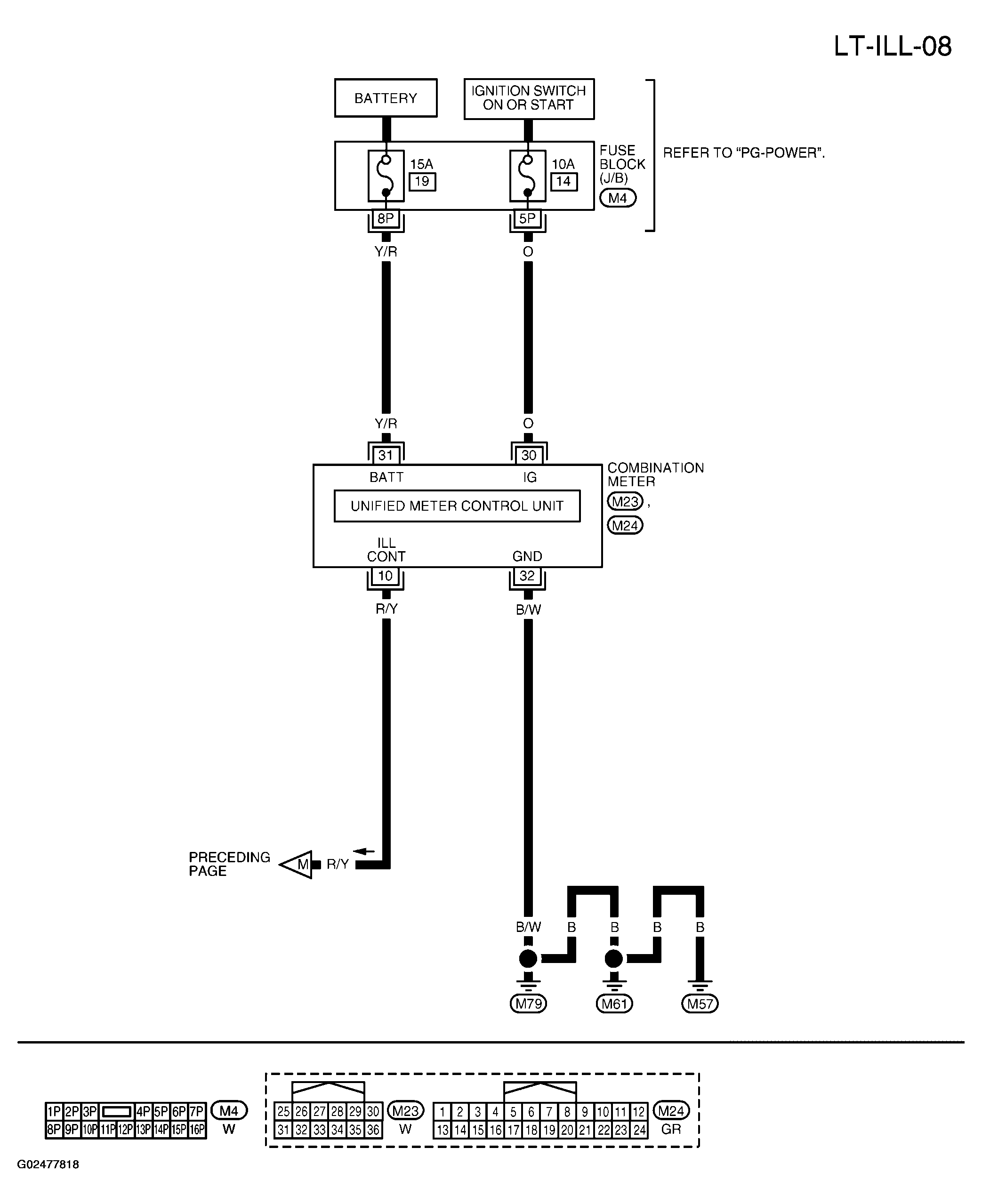

Fig 8: Illumination - Wiring Diagram - LT-ILL-08

Courtesy of NISSAN MOTOR CO., U.S.A.

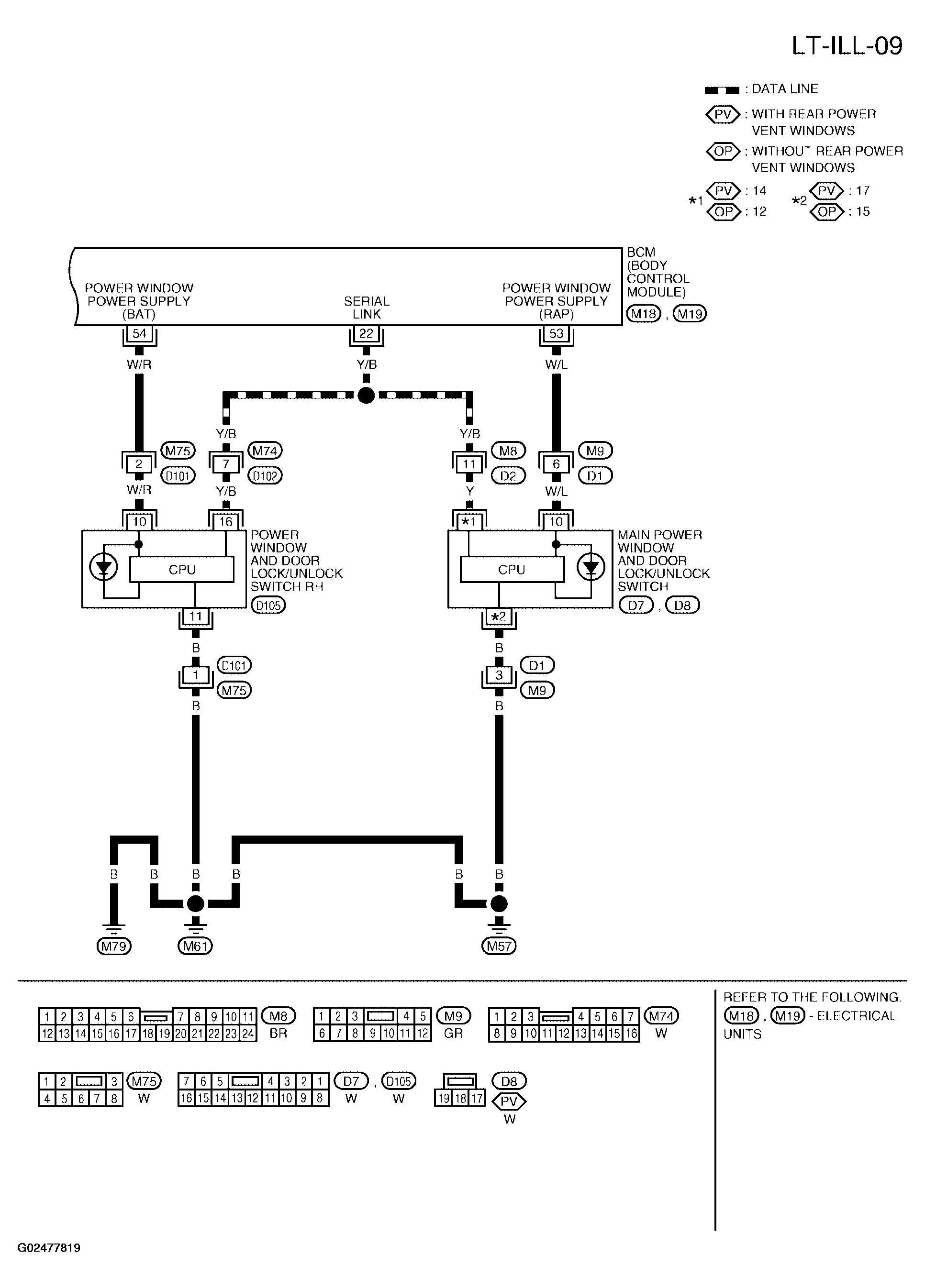

Fig 9: Illumination - Wiring Diagram - LT-ILL-09

Courtesy of NISSAN MOTOR CO., U.S.A.
