Illumination Control Switch

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Remove lower driver instrument panel. Refer to "INSTRUMENT LOWER PANEL LH ".
Carefully lift tabs and pull illumination control switch out of lower driver instrument panel.

Installation is in the reverse order of removal.

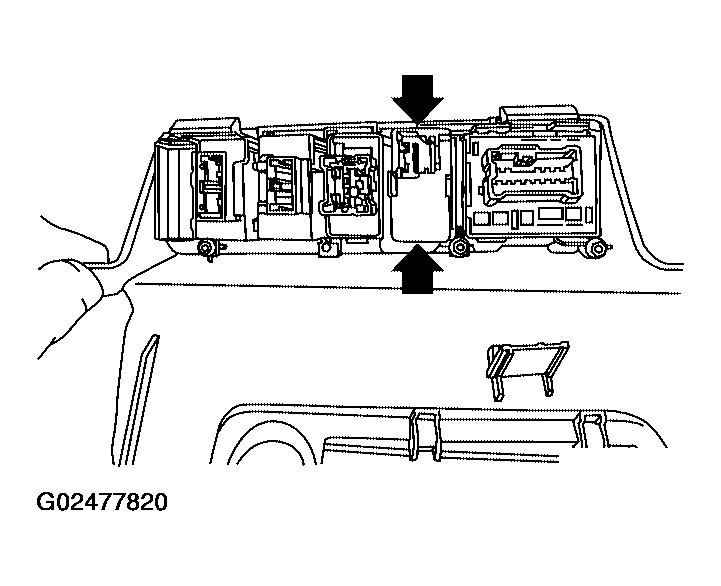

Fig 1: Removing Illumination Control Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
