Removal and Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove steering column cover.
  2. While pressing tabs, pull lighting and turn signal switch toward driver door and disconnect from the base.

Installation is in the reverse order of removal.

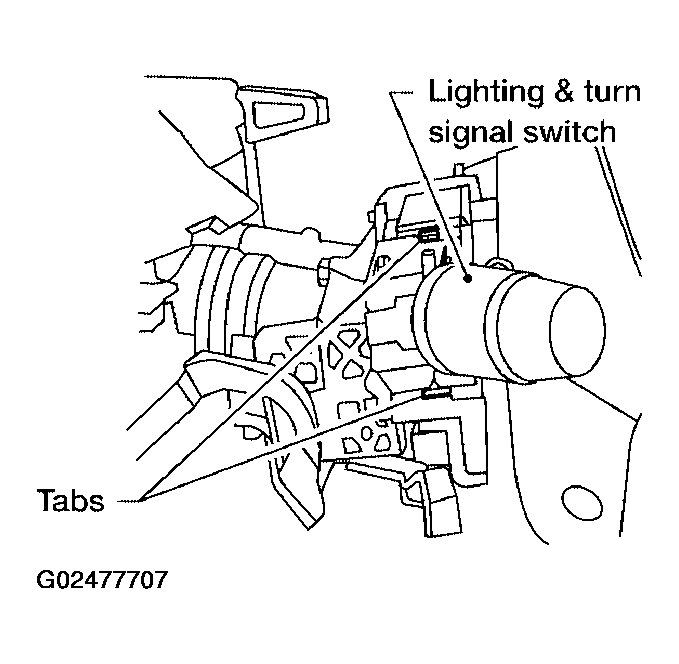

Fig 1: Identifying Lighting & Turn Signal Switch
G02477707Courtesy of NISSAN MOTOR CO., U.S.A.
