Wiring Diagram - H/LAMP -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

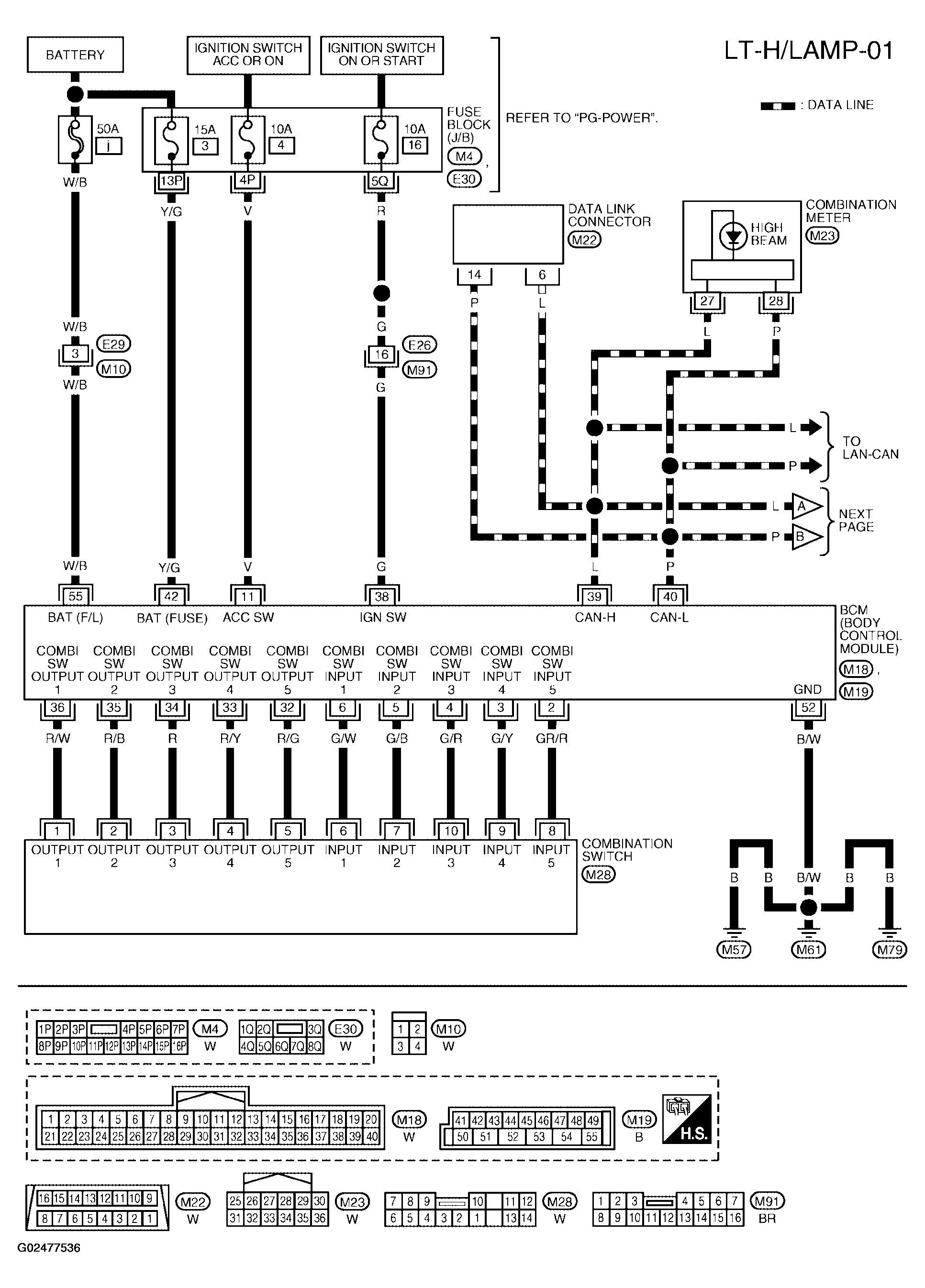

Fig 1: Headlamp Wiring Diagram - LT-H/LAMP-01

Courtesy of NISSAN MOTOR CO., U.S.A.

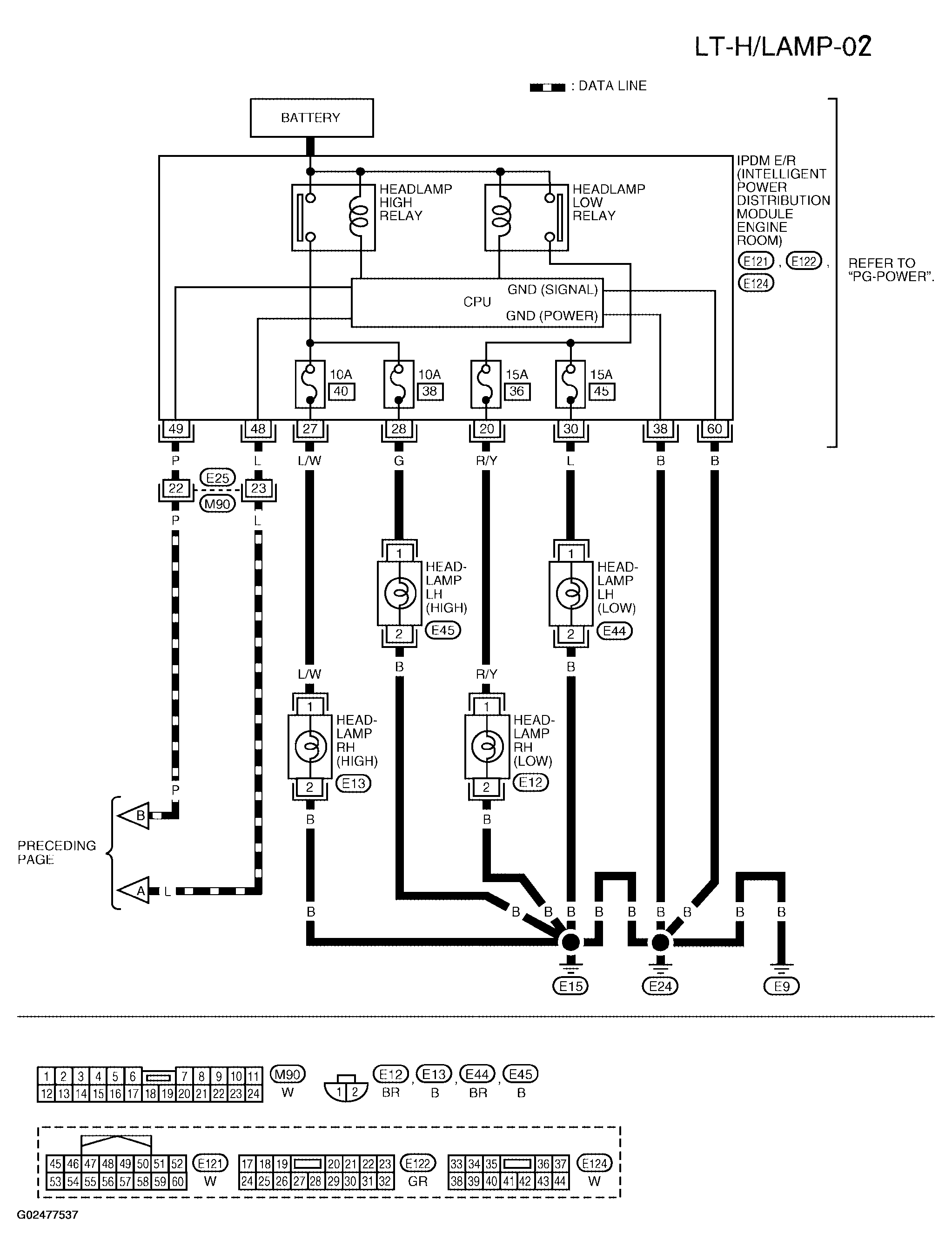

Fig 2: Headlamp Wiring Diagram - LT-H/LAMP-02

Courtesy of NISSAN MOTOR CO., U.S.A.
