Aiming Adjustment: Notes

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

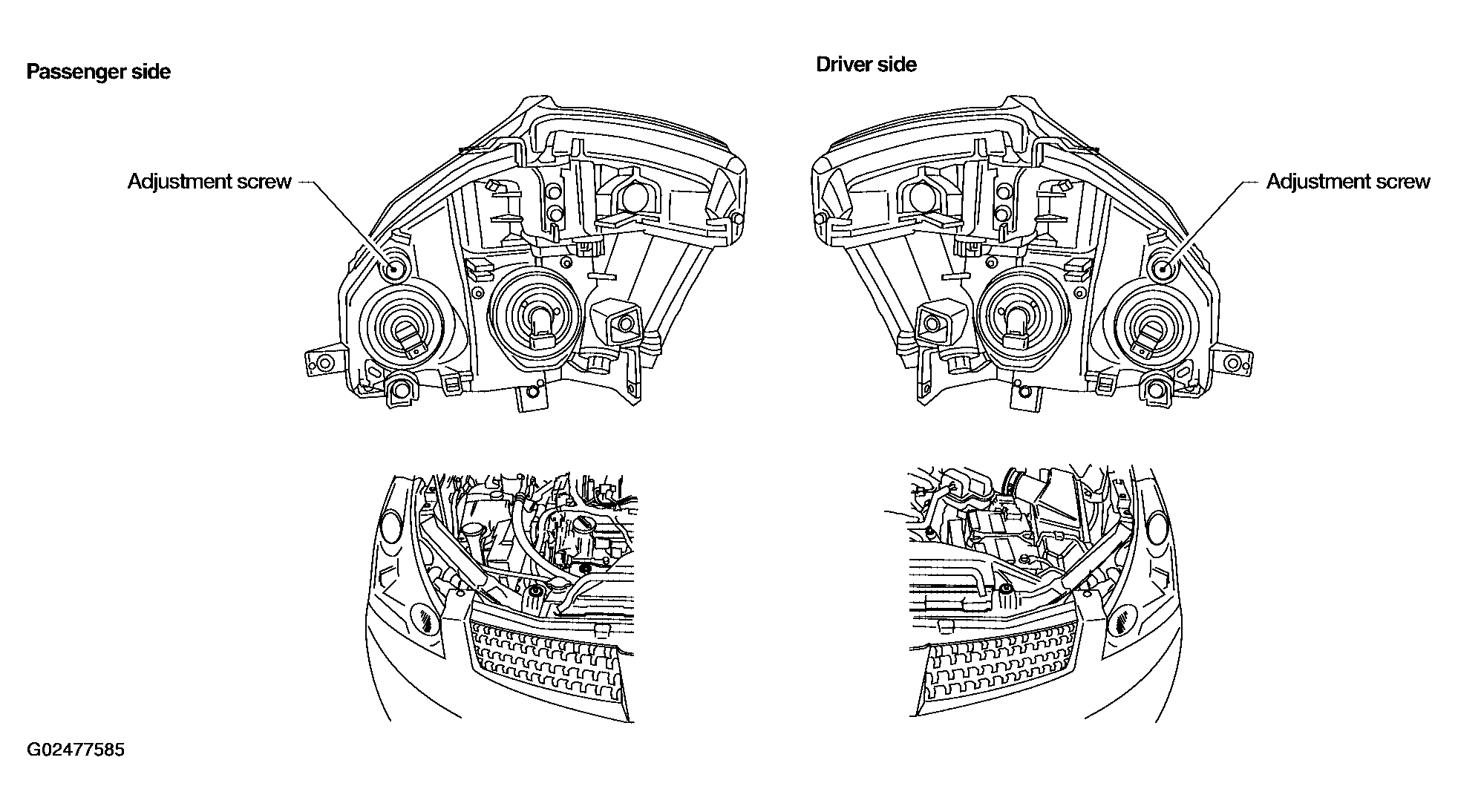

Fig 1: Identifying Head Lamp Aiming Adjustment

Courtesy of NISSAN MOTOR CO., U.S.A.

For details, refer to the regulations in state in which vehicle is registered.

Before performing aiming adjustment, check the following.

Ensure all tires are inflated to correct pressure.
Place vehicle and screen on level surface.
Ensure there is no load in vehicle other than the driver (or equivalent weight placed in driver's position). Coolant and engine oil filled to correct level and fuel tank full.
Confirm spare tire, jack and tools are properly stowed.
