Low Beam And High Beam

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Aim each headlamp individually and ensure other headlamp beam pattern is blocked from screen.

Turn headlamp low beam on.
Use adjusting screw to perform aiming adjustment.

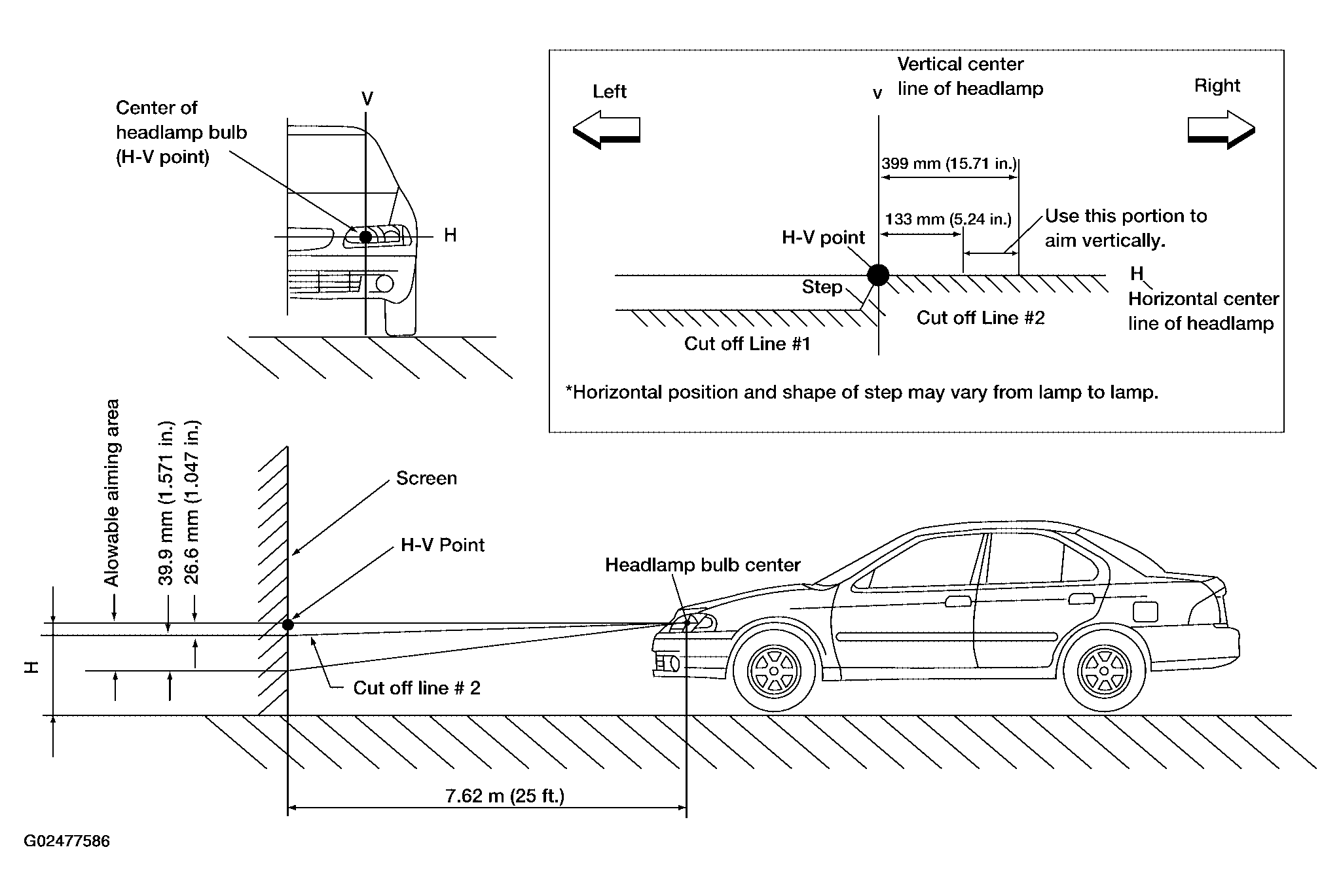

Fig 1: Head Lamp Aiming Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

If the vehicle front body has been repaired and/or the headlamp assembly has been replaced, check aiming. Use the aiming chart shown in the figure.

Basic illuminating area for adjustment should be within the range shown on the aiming chart. Adjust headlamps accordingly.
