Wiring Diagram - DTRL -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

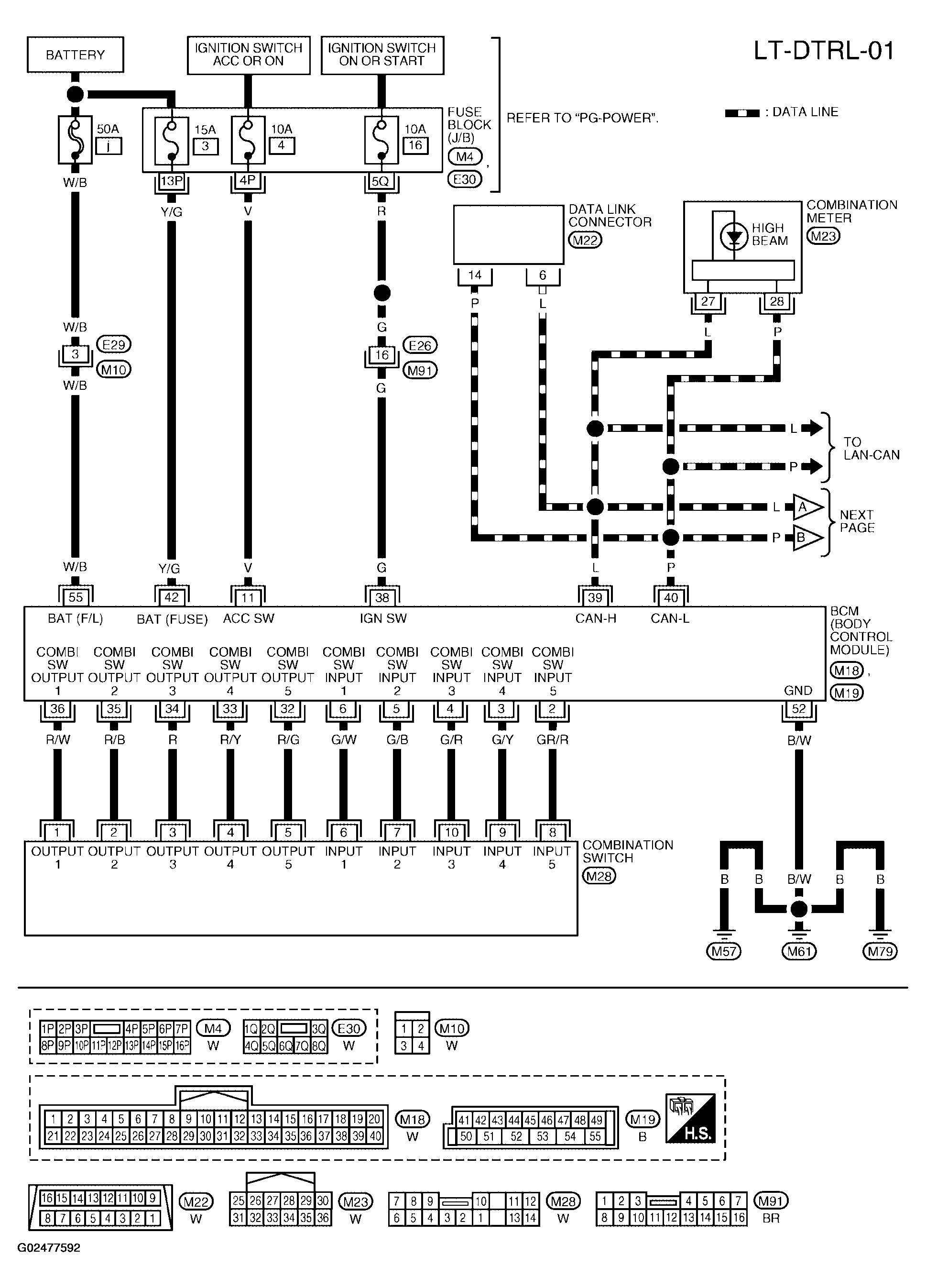

Fig 1: Daytime Light System Headlamp (For Canada) - Wiring Diagram - LT-DTRL-01

Courtesy of NISSAN MOTOR CO., U.S.A.

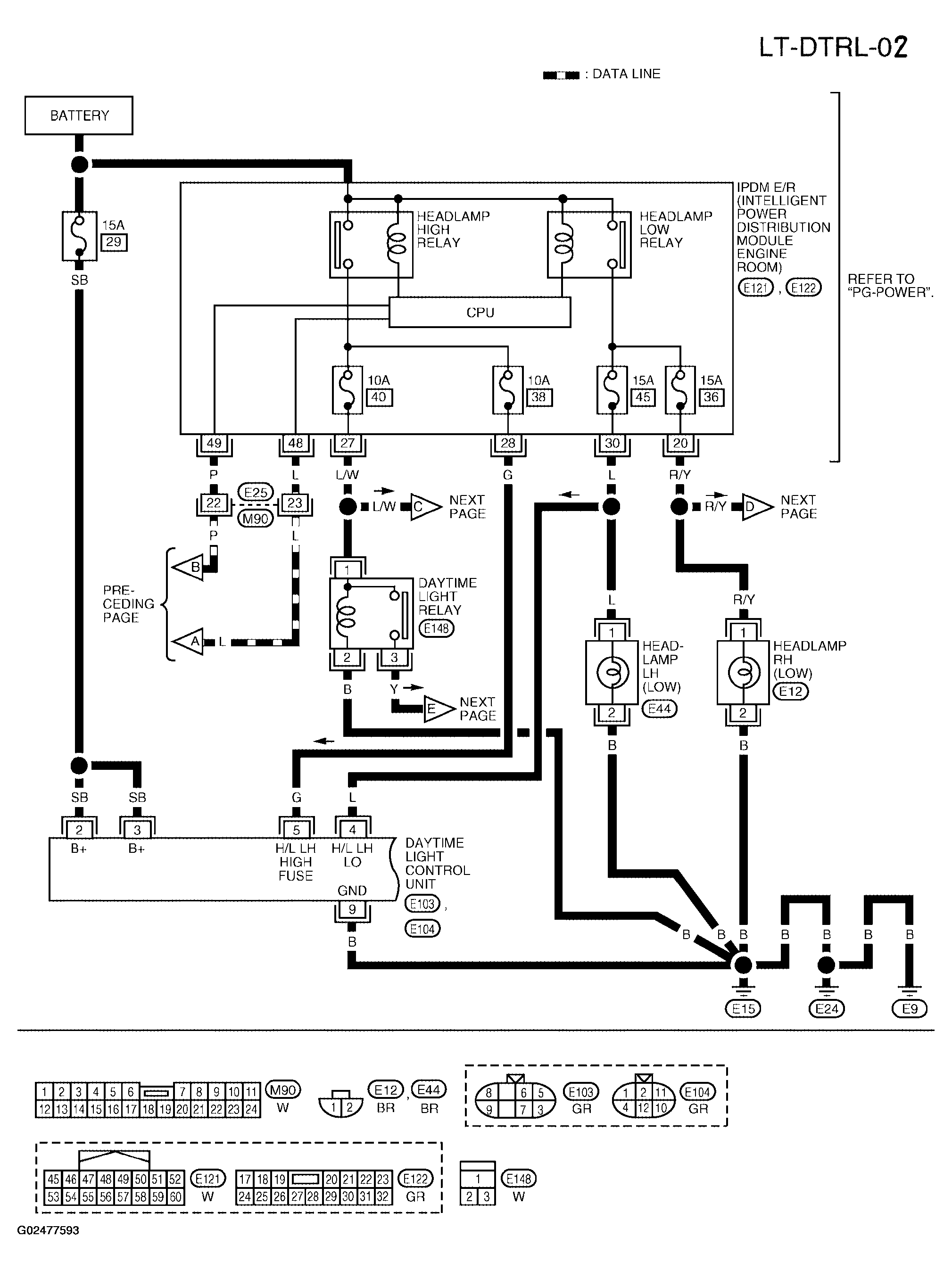

Fig 2: Daytime Light System Headlamp (For Canada) - Wiring Diagram - LT-DTRL-02

Courtesy of NISSAN MOTOR CO., U.S.A.

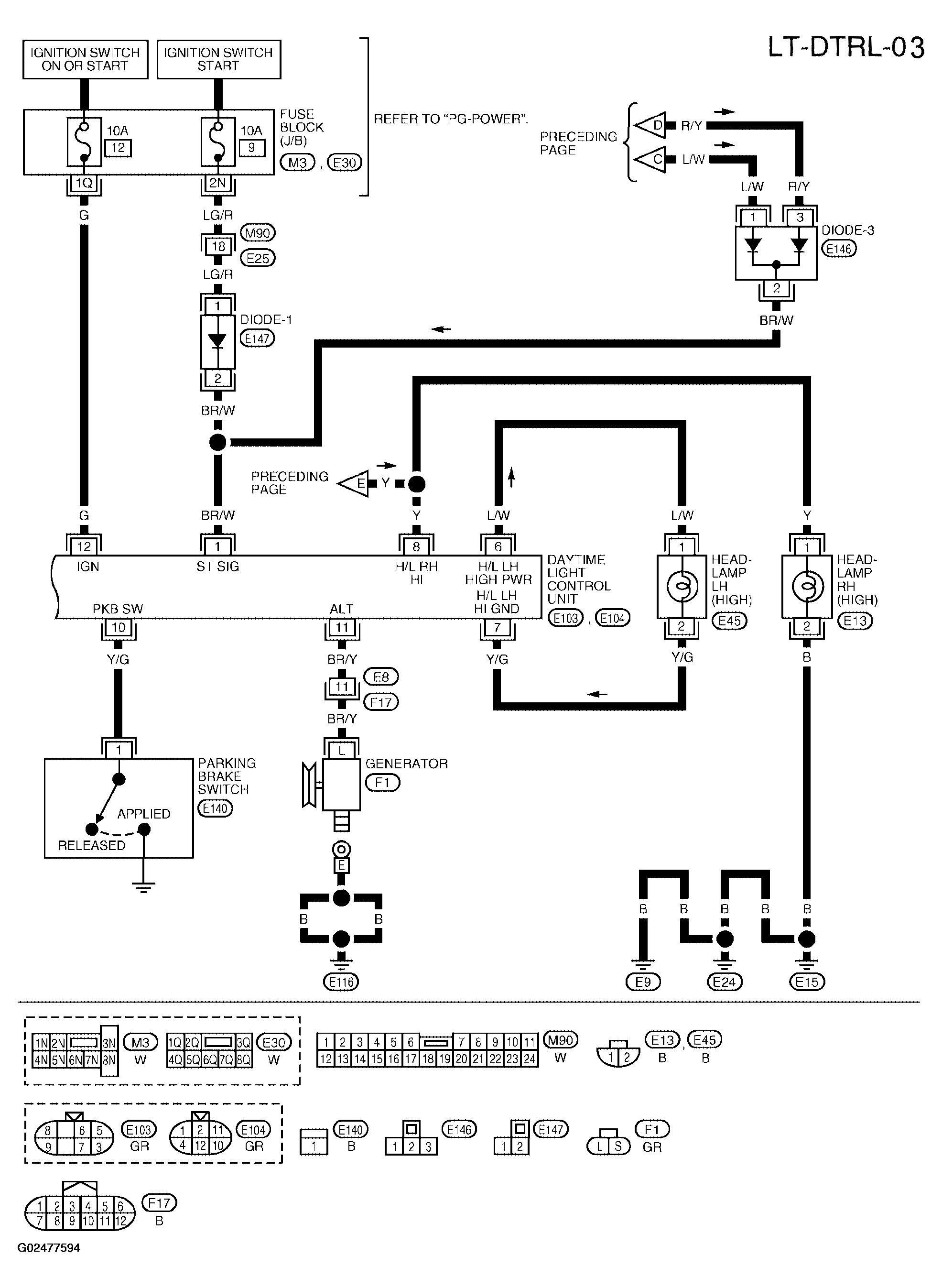

Fig 3: Daytime Light System Headlamp (For Canada) - Wiring Diagram - LT-DTRL-03

Courtesy of NISSAN MOTOR CO., U.S.A.
