Removal and Installation of Daytime Light Relay
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

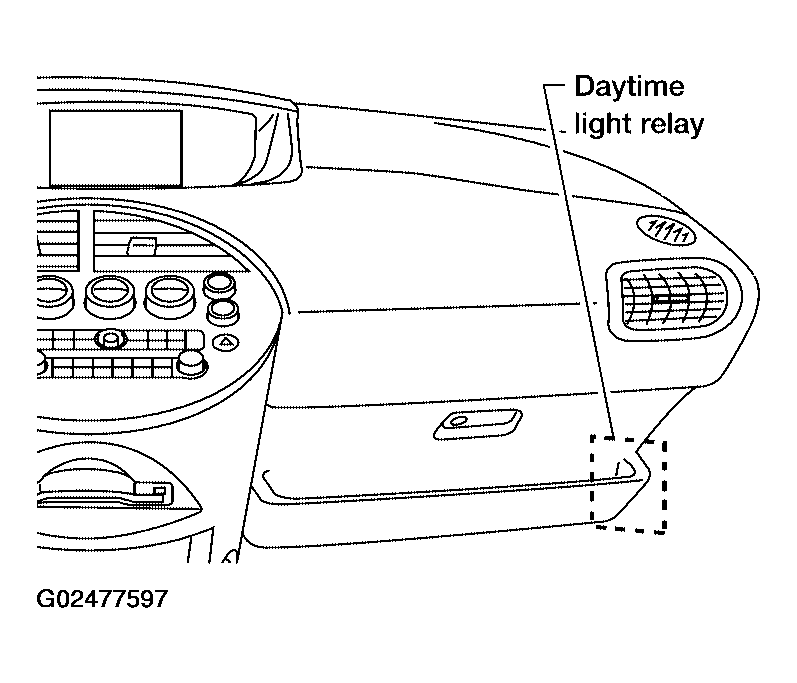

The daytime light relay is taped to the main wiring harness near the lower dash side finisher RH.
- Remove the glove box assembly. Refer to "INSTRUMENT PANEL ASSEMBLY ".
- Carefully remove the tape holding the daytime light relay to the main harness.
- Disconnect the connector.
Installation is in the reverse order of removal.
