Wiring Diagram - VDC -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

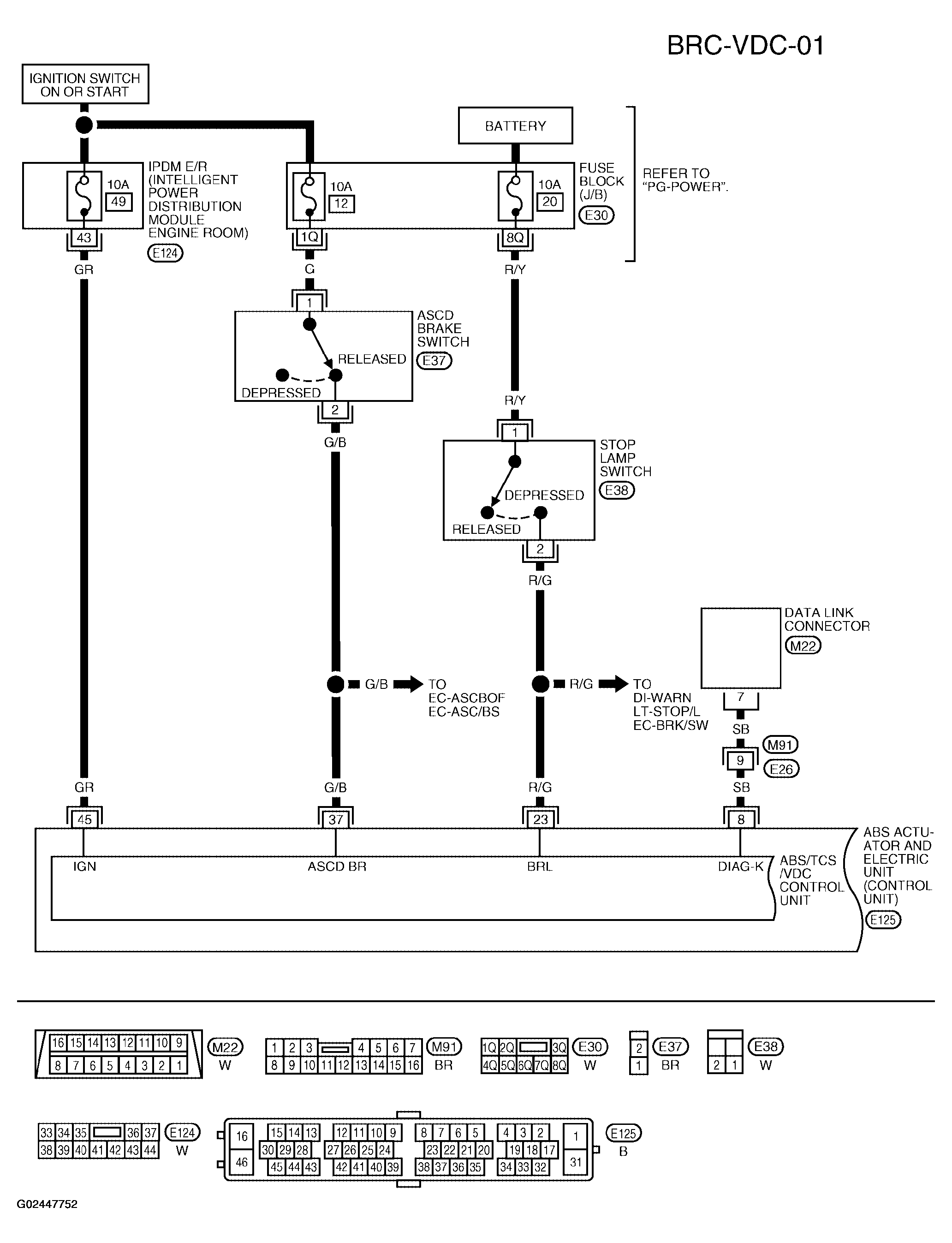

Fig 1: Wiring Diagram - (BRC-VDC-01)

Courtesy of NISSAN MOTOR CO., U.S.A.

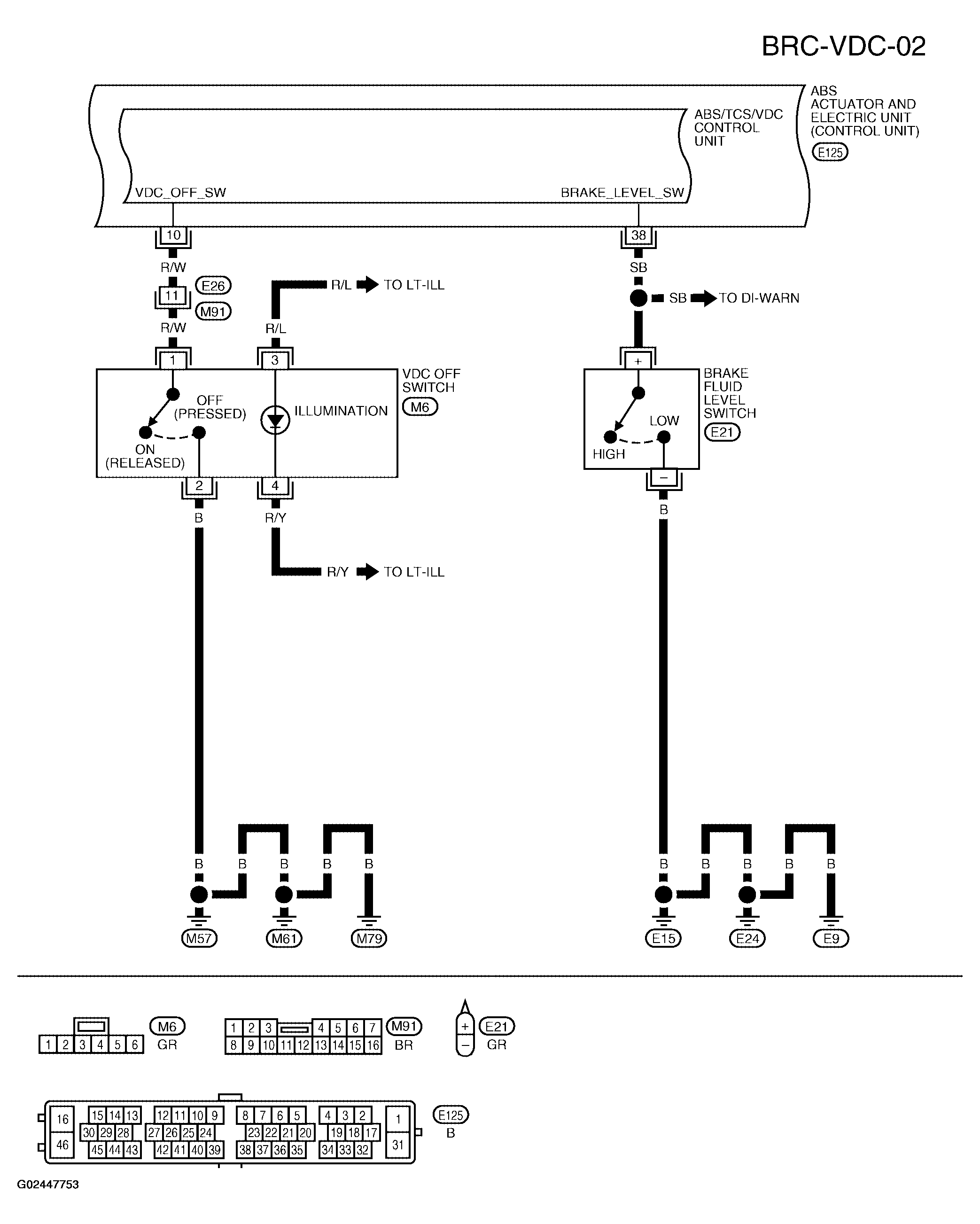

Fig 2: Wiring Diagram - (BRC-VDC-02)

Courtesy of NISSAN MOTOR CO., U.S.A.

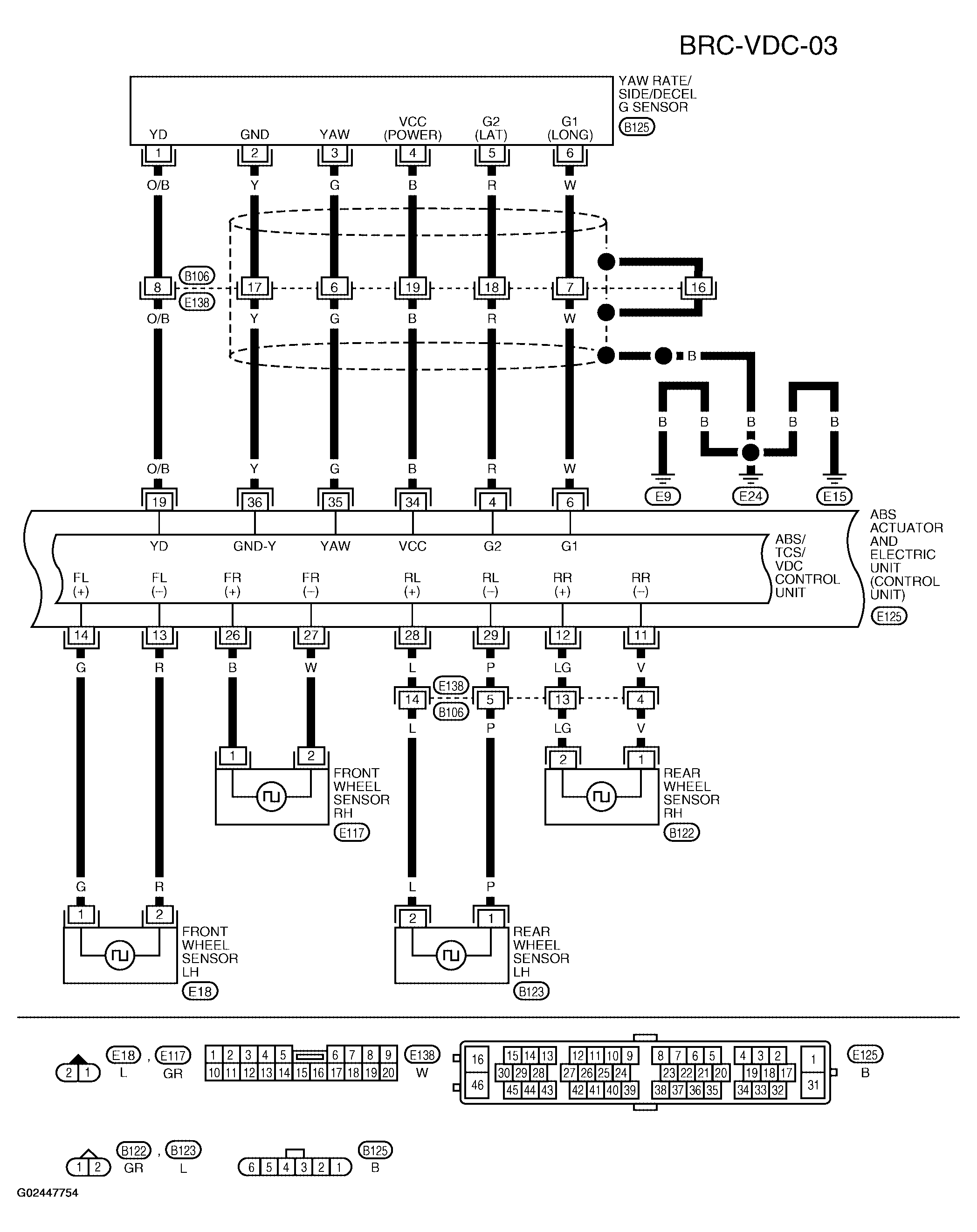

Fig 3: Wiring Diagram - (BRC-VDC-03)

Courtesy of NISSAN MOTOR CO., U.S.A.

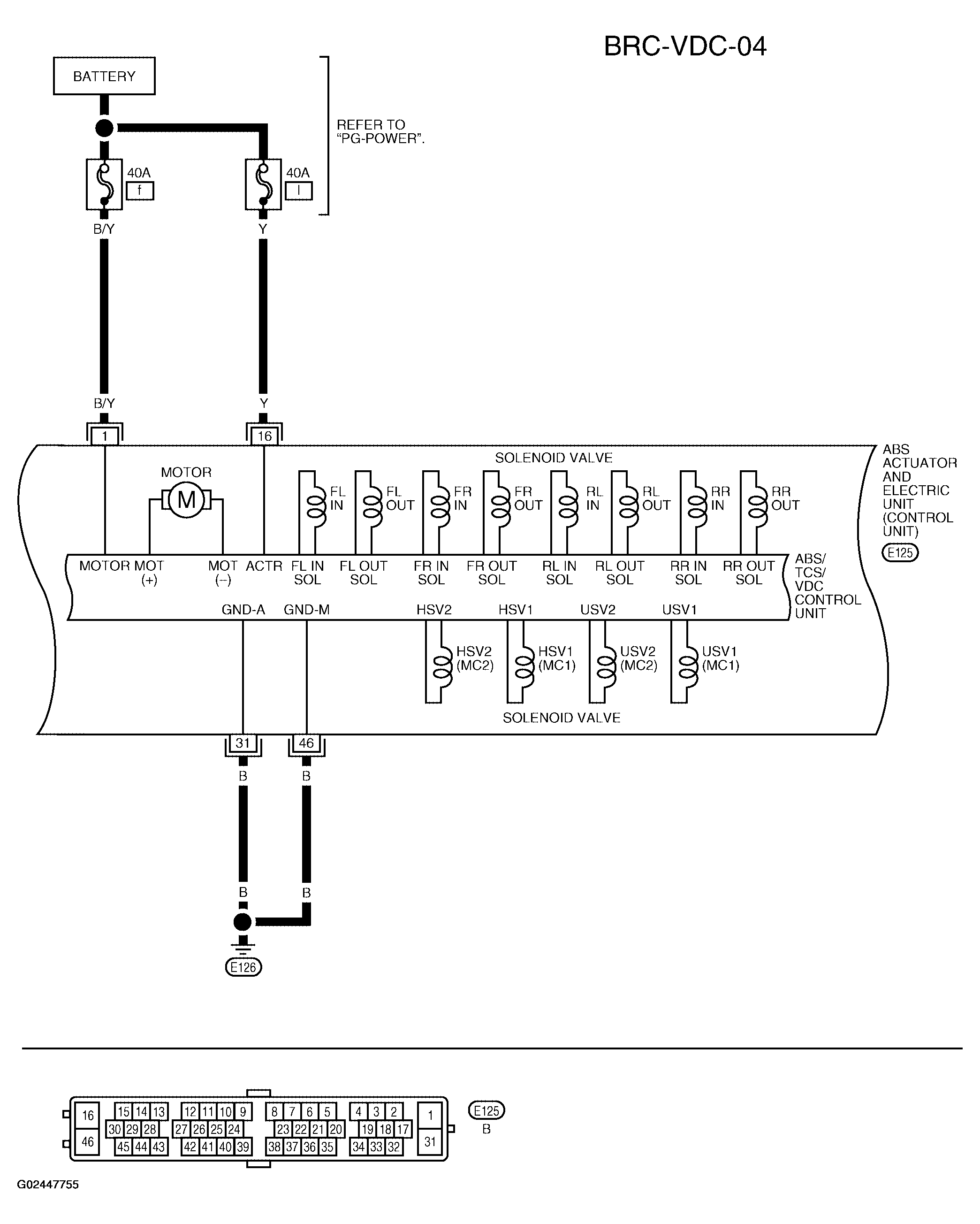

Fig 4: Wiring Diagram - (BRC-VDC-04)

Courtesy of NISSAN MOTOR CO., U.S.A.

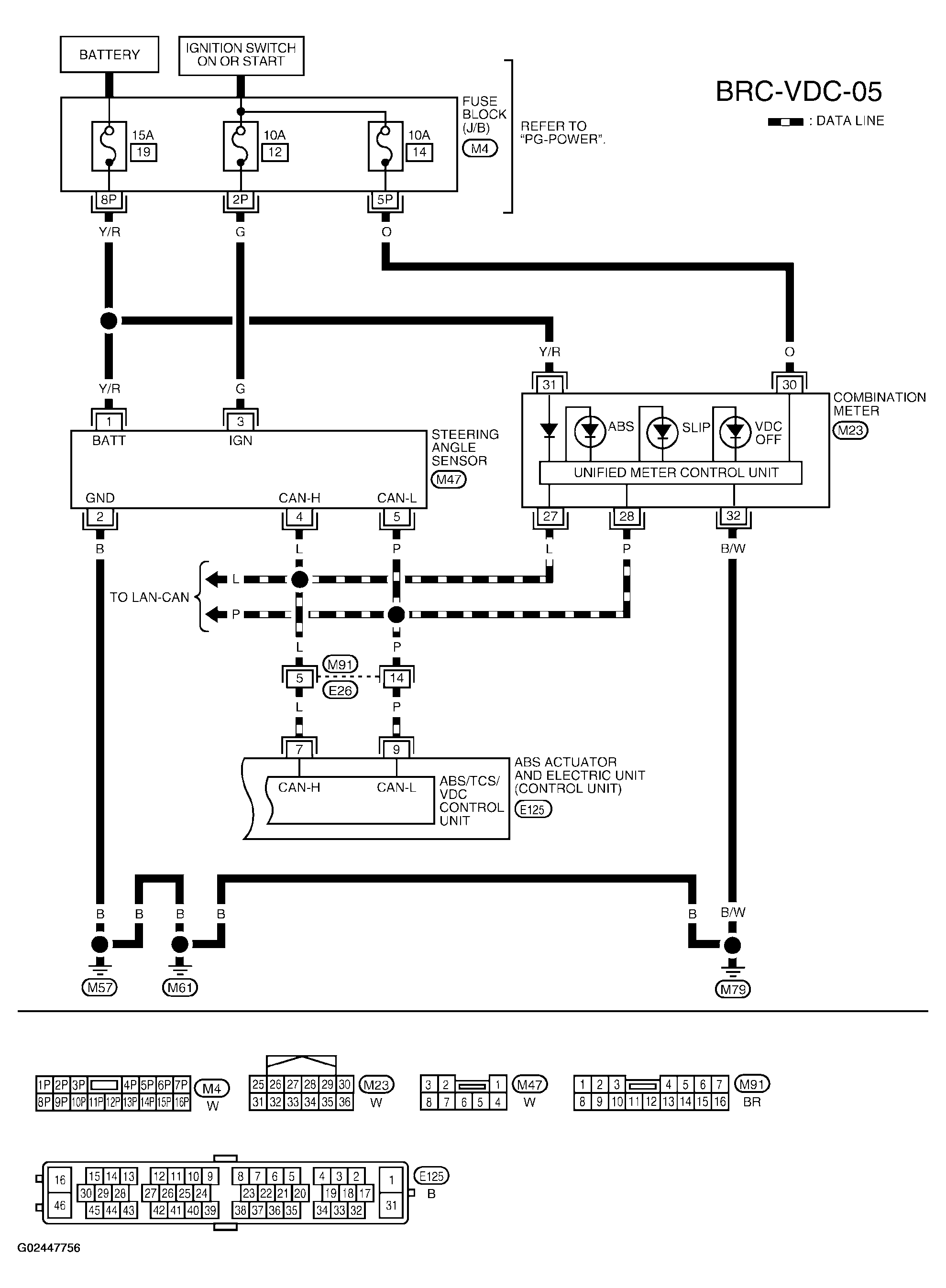

Fig 5: Wiring Diagram - (BRC-VDC-05)

Courtesy of NISSAN MOTOR CO., U.S.A.
