Inspection Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

SELF-DIAGNOSIS RESULT CHECK

Check self-diagnosis results.

SELF-DIAGNOSIS RESULTS TABLE

Self-diagnosis results
FR LH IN ABS SOL
FR LH OUT ABS SOL
RR RH IN ABS SOL
RR RH OUT ABS SOL
FR RH IN ABS SOL
FR RH OUT ABS SOL
RR LH IN ABS SOL
RR LH OUT ABS SOL
CV 1
CV 2
SV 1
SV 2

Is the above displayed in the self-diagnosis display items?

YES: GO TO 2.
NO: Inspection End.

CONNECTOR INSPECTION
1. Disconnect ABS actuator and electric unit (control unit) connector E125.
2. Check the terminals for deformation, disconnection, looseness or damage.
OK or NG
- OK: GO TO 3.
- NG: Repair or replace as necessary.

CHECKING SOLENOID POWER AND GROUND

Check voltage between ABS actuator and electric unit (control unit) connector E125 terminal 16 and ground.

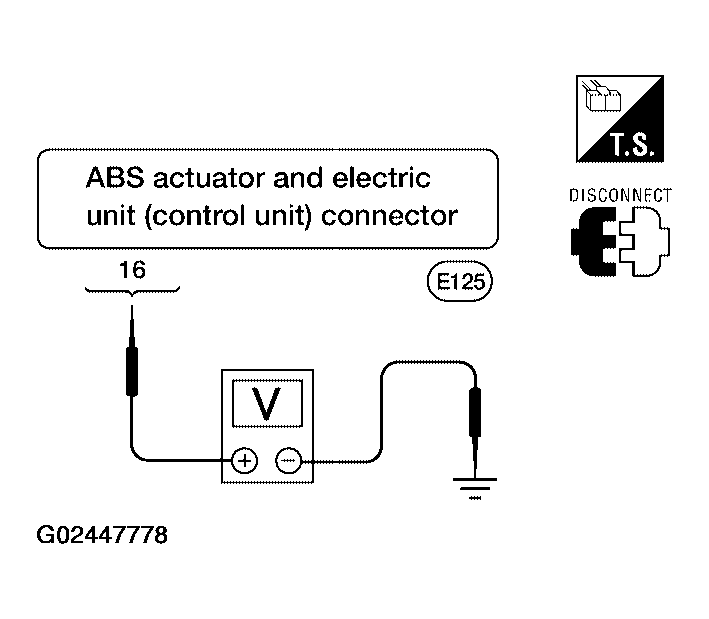

Fig 1: Checking Voltage Between ABS Actuator & Electric Unit Connector E125 Terminal 16 & Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE SPECIFICATION TABLE

ABS actuator and electric unit (control unit) connector E125	Body ground	Measured value (Approx.)
16 (Y)	-	12V

Check resistance between ABS actuator and electric unit (control unit) connector E125 terminals 31, 46 and body ground.

Fig 2: Checking Resistance Between ABS Actuator & Electric Unit Connector E125 Terminals 31, 46 & Body Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

RESISTANCE SPECIFICATION TABLE

ABS actuator and electric unit (control unit) connector E125	Body ground	Measured value Ω (Approx.)
31 (B)	-	0Ω
46 (B)	-	0Ω

OK or NG

OK: Perform self-diagnosis again. If the same results appear, replace ABS actuator and electric unit (control unit). Refer to "REMOVAL AND INSTALLATION ".
NG: Repair the circuit.
