Pad Wear Inspection
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

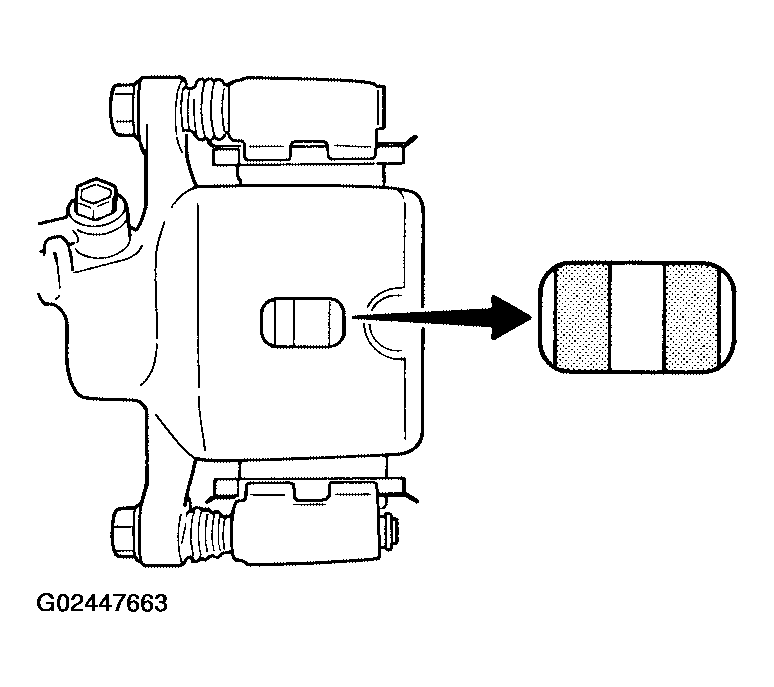

- Inspect the thickness of the pad through the cylinder body inspection hole. Use a scale for inspection if necessary.
Courtesy of NISSAN MOTOR CO., U.S.A.
- Standard pad thickness: 8.5 mm (0.335 in)
- Pad wear limit: 2.0 mm (0.079 in)
