Thickness Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, check thickness of the disc rotor. If thickness is not within specification, replace disc rotor.

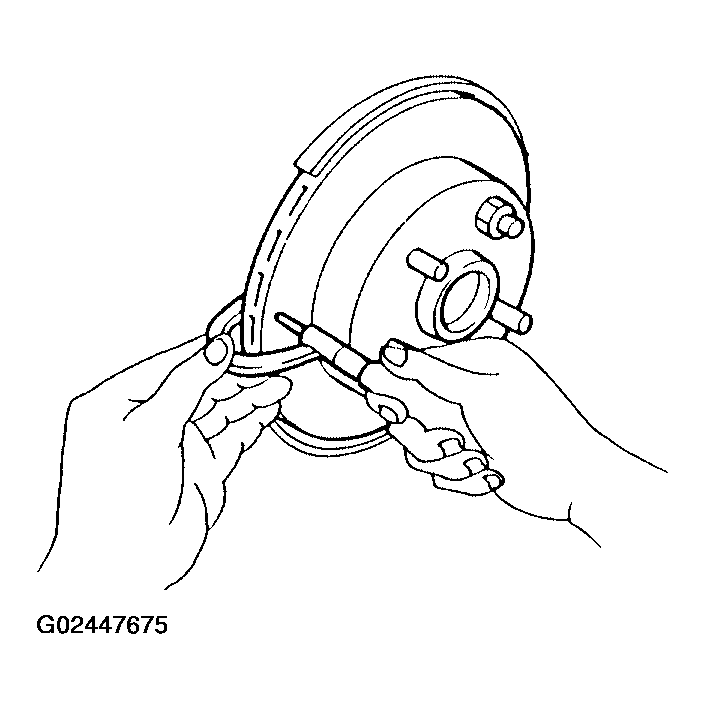

Fig 1: Inspecting Thickness Of Disc Rotor

Courtesy of NISSAN MOTOR CO., U.S.A.

Standard thickness: 16.0 mm (0.630 in)
Minimum thickness: 14.0 mm (0.551 in)
Maximum thickness variation (measured at 8 positions): 0.015 mm (0.0006 in) or less
