Runout Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Using wheel nuts, secure disc rotor to the wheel hub in 2 or more positions.
Inspect runout using a dial gauge.

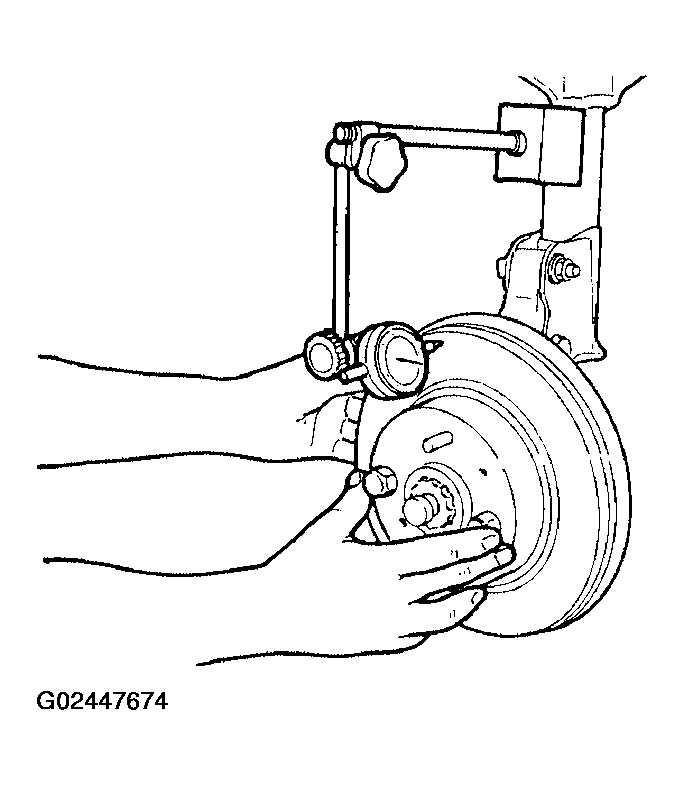

Fig 1: Inspecting Runout Of Disc Rotor
Courtesy of NISSAN MOTOR CO., U.S.A.
- Measurement point: At a point 10 mm (0.39 in) from outer edge of the disc
- Runout limit (with it attached to the vehicle): 0.05 mm (0.0020 in) or less
CAUTION: Before measuring, make sure the axle end play is 0 mm (0 in). Refer to "ON-VEHICLE INSPECTION AND SERVICE ".
If runout is outside the limit, find the minimum runout point by shifting mounting positions of the disc rotor and wheel hub by one hole.
