Thickness Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Using a micrometer, check thickness of the disc rotor. If thickness does not meet specification, replace disc rotor.

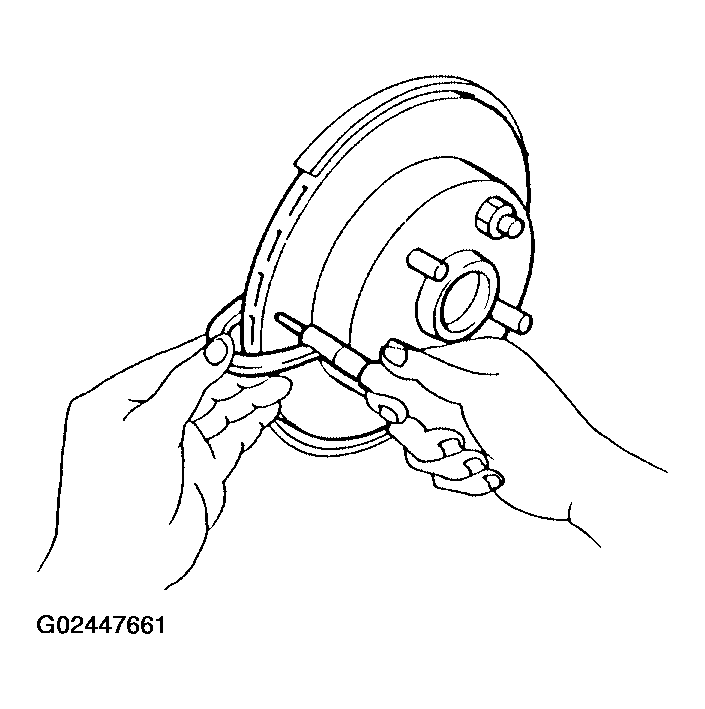

Fig 1: Inspecting Thickness Of Disc Rotor
Courtesy of NISSAN MOTOR CO., U.S.A.
Standard thickness: 28 mm (1.10 in)
Minimum thickness: 26 mm (1.02 in)
Maximum thickness variation (measured at 8 positions): 0.015 mm (0.0006 in) or less
