Rear Brake Piping and Hose: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be careful not to splash brake fluid on painted areas; it may cause paint damage. If brake fluid is splashed on painted areas, wash it away with water immediately.
  • All hoses must be free from excessive bending, twisting and pulling.
  • Cover the open end of lines and hoses when disconnecting to prevent entrance of dirt.
  1. Connect vinyl tube and container to air bleeder valve.
  2. Drain brake fluid from each air bleeder valve by depressing brake pedal.

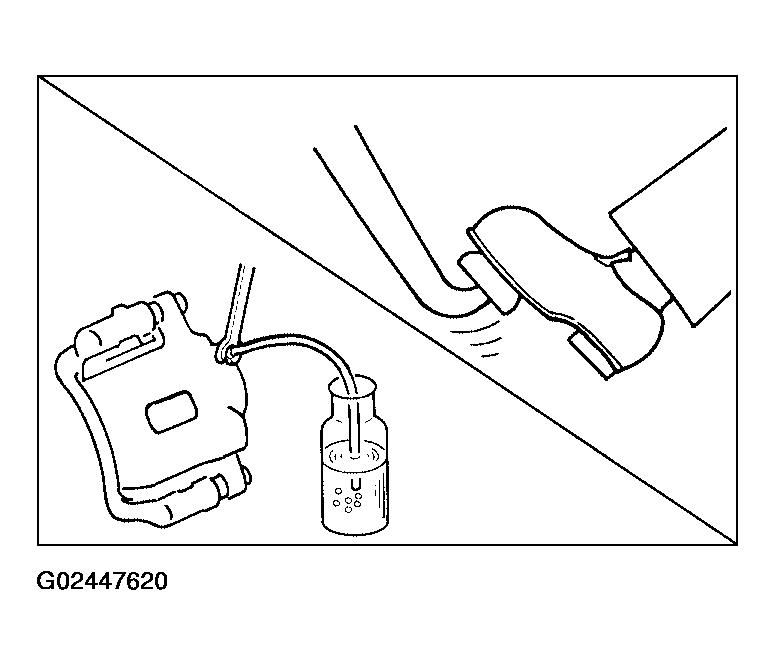

    Fig 1: Bleeding Air From Brake System
    G02447620Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Remove the flare nut connecting the brake tube and hose, then withdraw the lock spring.
  4. Remove the connecting bolt and disconnect the brake hose from the caliper assembly.

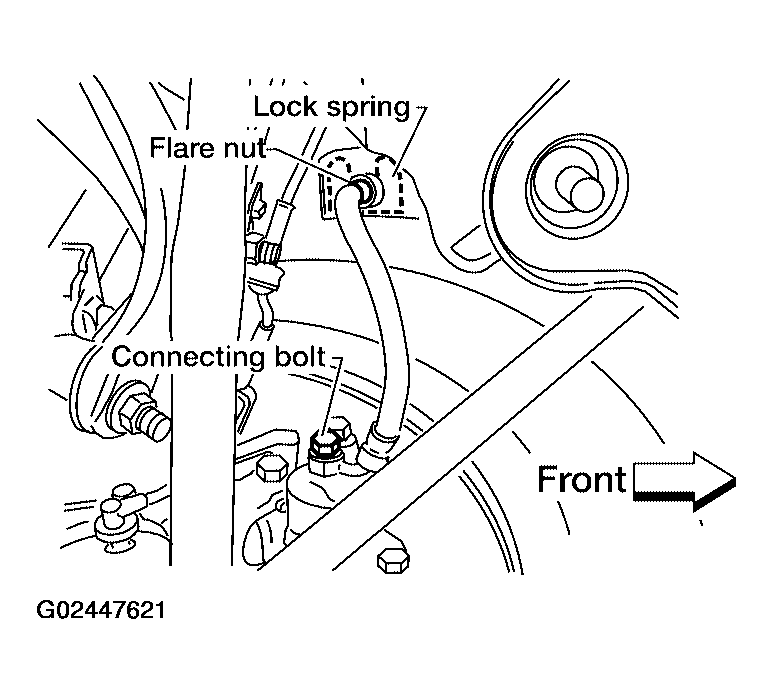

    Fig 2: Removing Connecting Bolt
    G02447621Courtesy of NISSAN MOTOR CO., U.S.A.
