Removal and Installation: Removal
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the lower driver instrument panel. Refer to "INSTRUMENT LOWER PANEL LH ".
- Remove the stop lamp switch and ASCD cancel switch from the brake pedal assembly by turning 45° degrees.
- If equipped with the adjustable pedal, disconnect the adjustable brake pedal cable from the adjustable pedal electric motor.

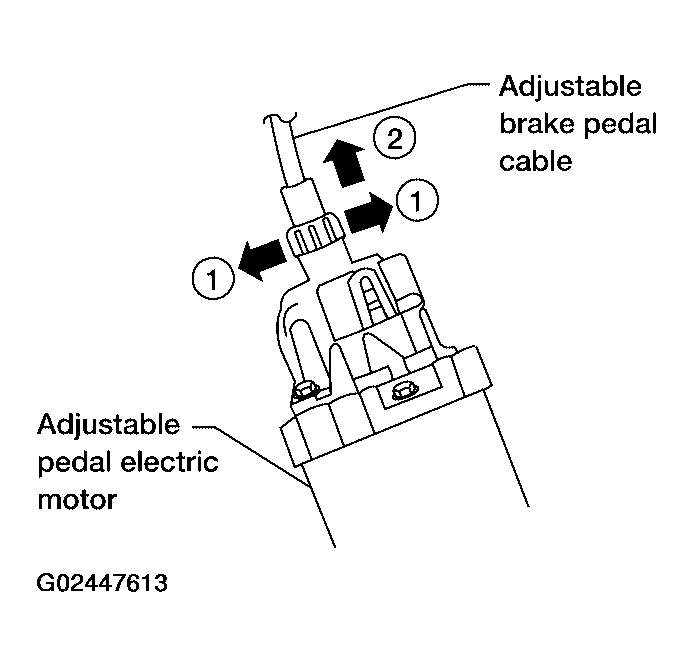

- Unlock (1) then pull (2) the adjustable brake pedal cable to disconnect it from the adjustable pedal electric motor as shown.
- Remove snap pin and clevis pin from the brake booster clevis.
- Remove mounting nuts and the brake pedal assembly. Support the brake booster and master cylinder at the bulkhead so as not to damage the brake tubes.CAUTION:
- Before removal and installation, the accelerator and brake pedals must be in the forward most position (closest to the floor). This is to align the base position of the accelerator and brake pedals (adjustable type only) for installation.
- Do not disassemble the brake pedal adjusting mechanism (adjustable type only).
- Avoid damage from dropping the brake pedal assembly during handling.
- Keep the brake pedal assembly away from water.
