Inspection and Adjustment: Inspection

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

If equipped with adjustable pedals, move the brake pedal to the forward most position (closest to the floor).

Inspect the brake pedal height, play, and switch clearance from the dash lower panel as shown.

CAUTION: When equipped with adjustable pedals, the brake pedal must be set in the forward most position (closest to the floor) for checking the brake pedal specifications.

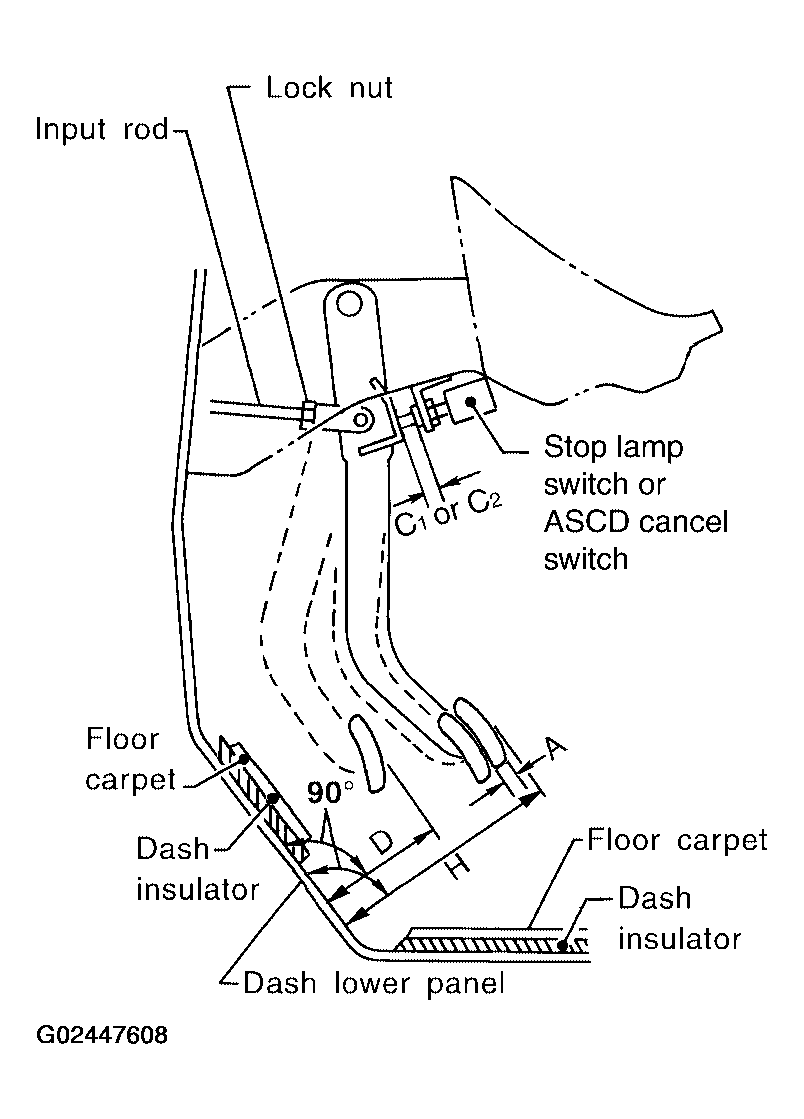

Fig 1: Inspecting Brake Pedal Height, Play & Switch Clearance From Dash Lower Panel

Courtesy of NISSAN MOTOR CO., U.S.A.

Tool number: - (J-46532)

BRAKE PEDAL ADJUSTMENT SPECIFICATIONS TABLE

Item	Specification
Free height "H"	156.3-166.3 mm (6.15-6.55 in)
Depressed pedal height "D" under a force of 490 N (50 kg, 110 lb) with engine running	More than 90.3 mm (3.55 in)
Clearance between pedal stopper and threaded end of stop lamp switch and ASCD cancel switch "C1" or "C2"	0.74 - 1.96 mm (0.029 - 0.077 in)
Pedal play "A"	3-11 mm (0.12-0.43 in)

Adjust the brake pedal as necessary. Refer to "INSPECTION AND ADJUSTMENT ".
