Removal and Installation: Installation
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

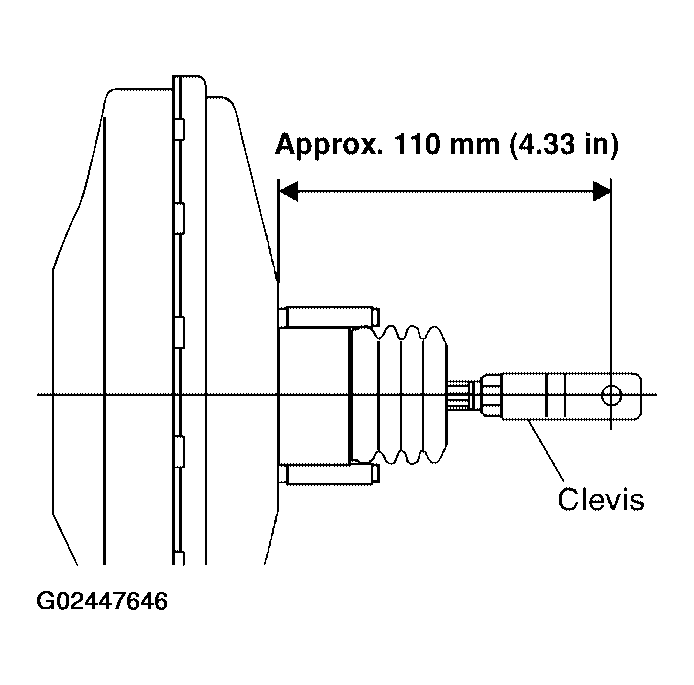

- Loosen the lock nut to adjust the input rod length so that the dimension shown satisfies the specified value.
- Standard value: 110 mm (4.33 in)
- After adjusting, temporarily tighten the lock nut to install the booster assembly to the vehicle. At this time, make sure to install a gasket between the booster assembly and the vehicle.
- Connect the brake pedal with the clevis of the input rod.
- Install the brake pedal assembly nuts and tighten them to the specified torque.
- Brake pedal: 14.2 N.m (1.4 kg-m, 10 ft-lb) assembly nuts
- Install the brake piping from the brake master cylinder to ABS actuator. Refer to "HYDRAULIC CIRCUIT "
- Install the brake master cylinder to the brake booster. Refer to "REMOVAL AND INSTALLATION ".
- Adjust the height and play of the brake pedal.
- Tighten the lock nut of the input rod to the specified torque.
- Input rod lock nut: 18.5 N.m (1.9 kg-m, 14 ft-lb)
- Adjust brake pedal. Refer to "INSPECTION AND ADJUSTMENT ".
- Refill new brake fluid and bleed air. Refer to "BLEEDING BRAKE SYSTEM ".
