Inspection After Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Lining Thickness Inspection

Check thickness of lining.

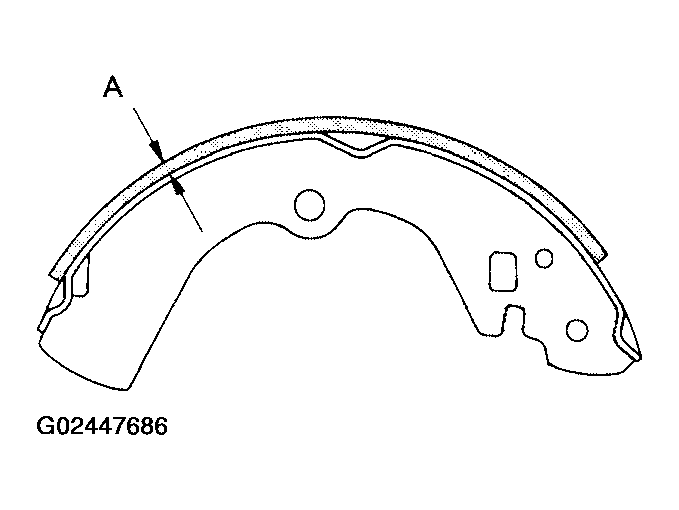

Fig 1: Checking Parking Brake Lining Thickness
Courtesy of NISSAN MOTOR CO., U.S.A.
- Standard thickness (new) "A": 3.2 mm (0.126 in)
- Repair limit thickness "A": 1.5 mm (0.059 in)
Drum Inner Diameter Inspection
Check drum inner diameter.

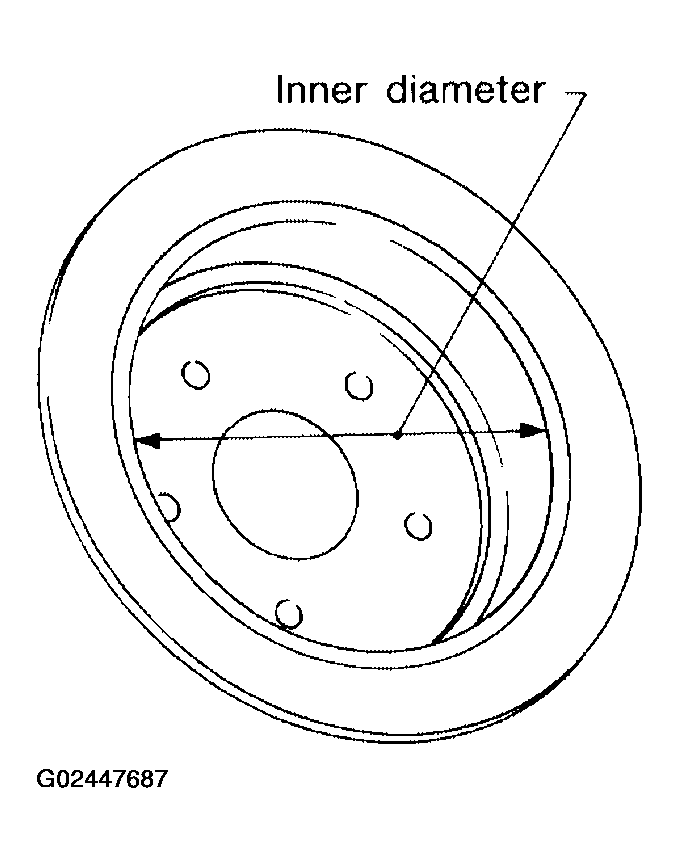

Fig 2: Checking Parking Brake Drum Inner Diameter
Courtesy of NISSAN MOTOR CO., U.S.A.
- Standard inner diameter (new): 190 mm (7.48 in)
- Wear limit of inner diameter: 191 mm (7.52 in)
Other Inspections
Check shoe sliding surface for excessive wear and damage.
Check anti-rattle pin for excessive wear and corrosion.
Check return spring for sagging.
Check that adjuster moves smoothly.
Check either visually or with a vernier caliper to see if there is any excessive wear, cracks, or damage inside the drum.
