Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove lower driver instrument panel using power tool. Refer to REMOVAL AND INSTALLATION - LOWER DRIVER INSTRUMENT PANEL .
  2. Disconnect parking brake switch electrical connector.
  3. Remove adjusting nut.
  4. Remove parking brake pedal assembly mounting nuts.
  5. Disconnect front cable from parking brake pedal assembly.
  6. Remove parking brake pedal assembly.

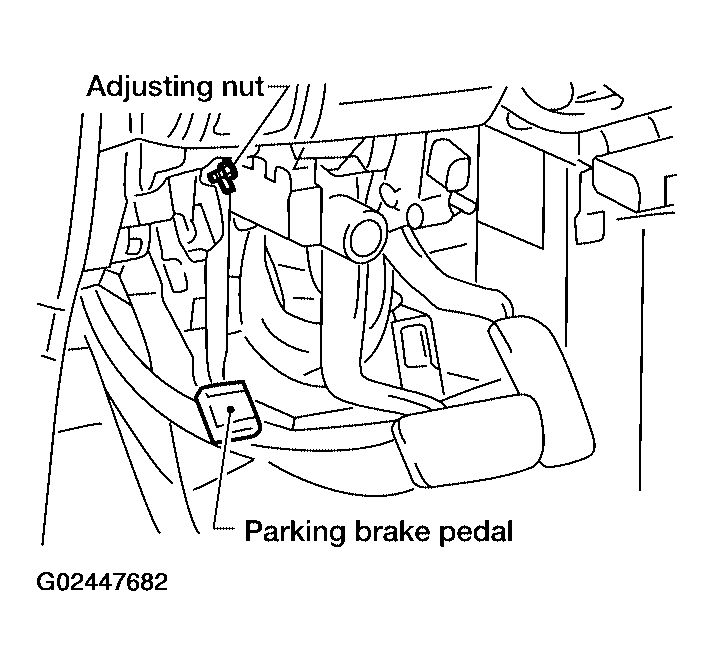

    Fig 1: Locating Parking Brake Pedal
    G02447682Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Remove center console. Refer to REMOVAL AND INSTALLATION - CENTER CONSOLE .
  8. Remove front cable mounting bolts, then remove front cable from vehicle.
  9. Remove rear disc rotors. Refer to REMOVAL AND INSTALLATION OF CALIPER ASSEMBLY AND DISC ROTOR .
  10. Remove rear cables from toggle levers.

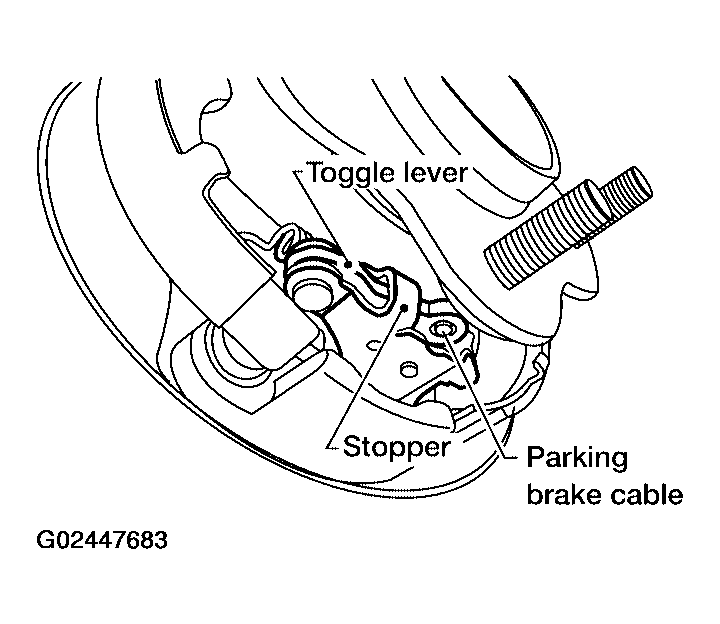

    Fig 2: Removing Rear Cables From Toggle Levers
    G02447683Courtesy of NISSAN MOTOR CO., U.S.A.
  11. Remove right and left rear cables mounting nuts and bolts, then remove right and left cable assemblies from vehicle.
