SRT Item

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

See Fig 1 for required self-diagnostic items to set the SRT to "CMPLT".

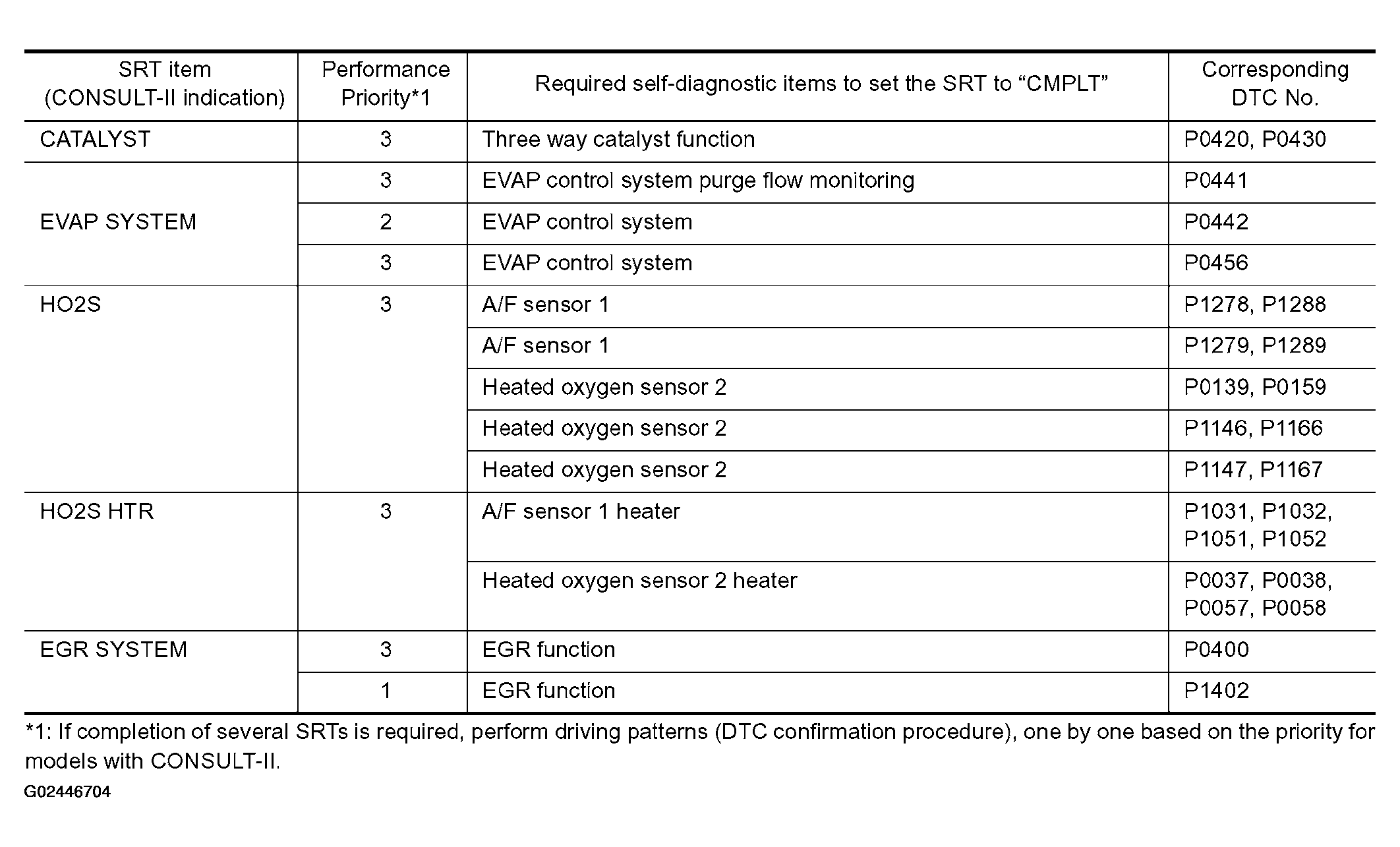

Fig 1: SRT Items Chart
G02446704Courtesy of NISSAN MOTOR CO., U.S.A.
