EVAP Canister

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Tighten EVAP canister as shown in the figure.

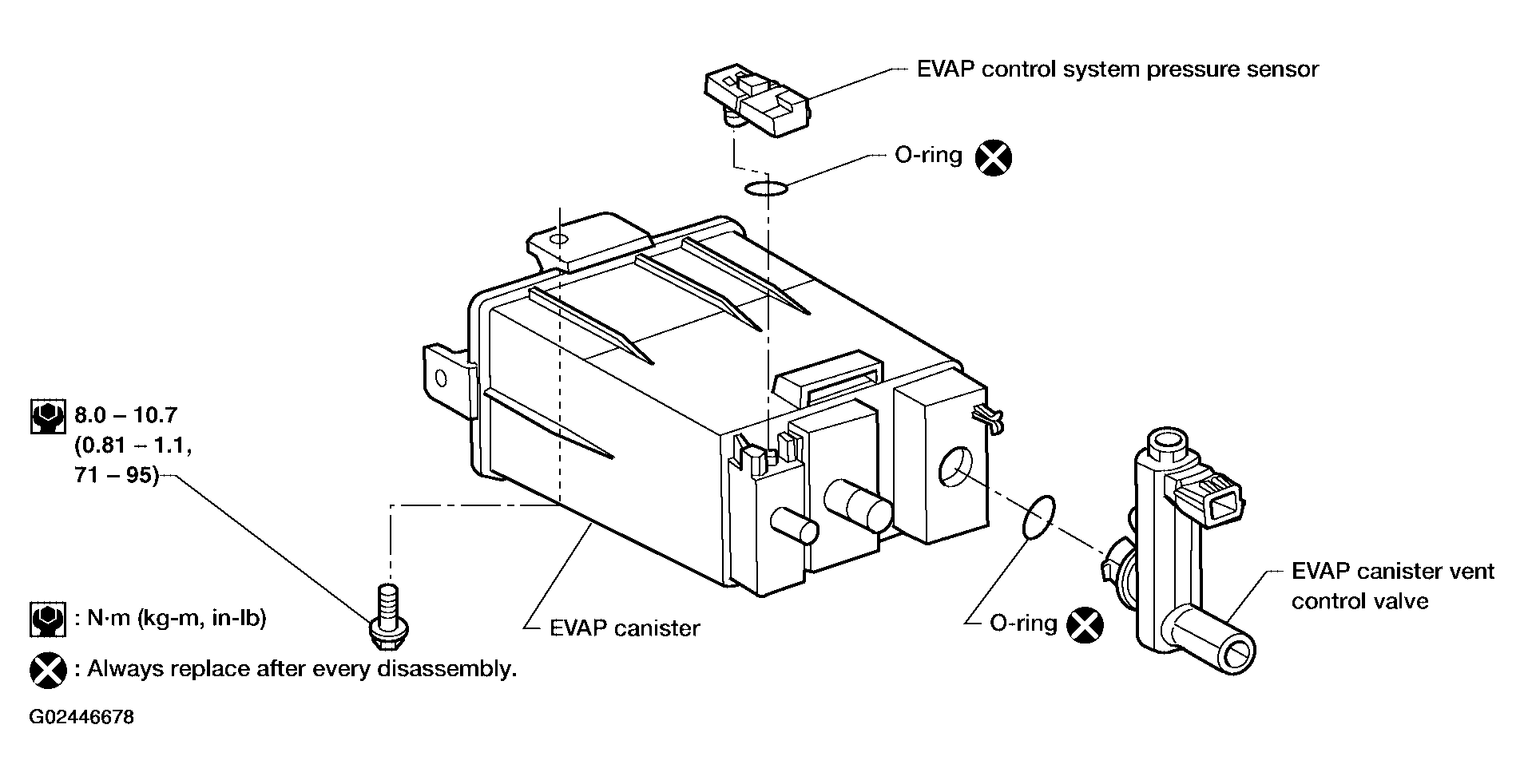

Fig 1: Identifying Tightening Torque Of EVAP Canister
G02446678Courtesy of NISSAN MOTOR CO., U.S.A.
