On Board Diagnosis Logic

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

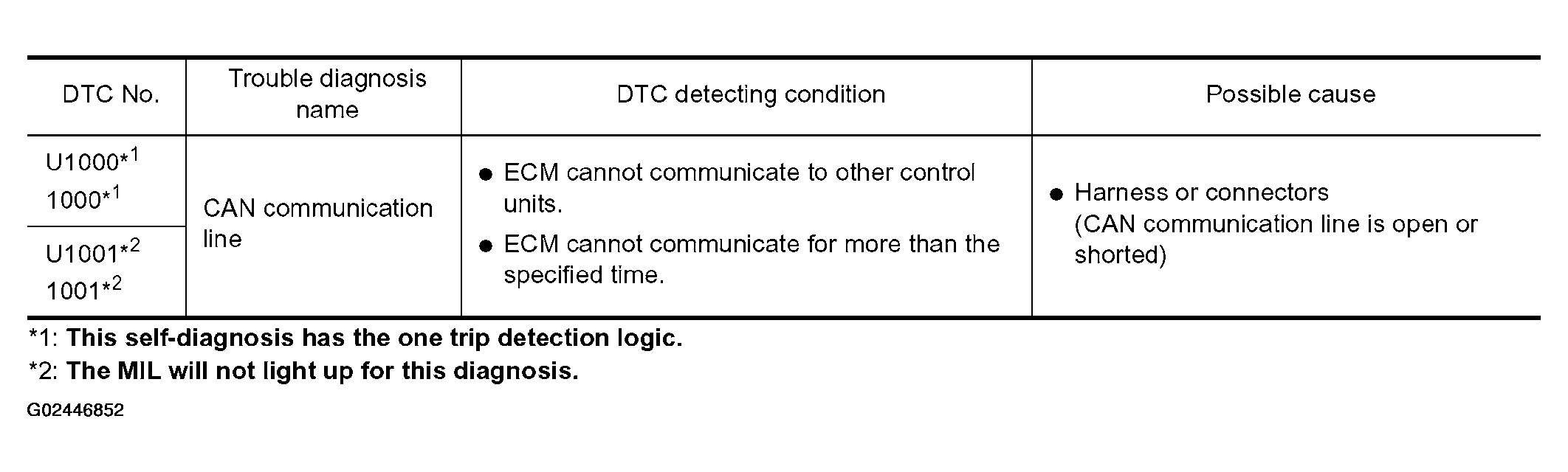

Fig 1: DTC Detecting Condition - Possible Cause Chart
G02446852Courtesy of NISSAN MOTOR CO., U.S.A.

*1 : This self-diagnosis has the one trip detection logic.

*2 : The MIL will no light up for this diagnosis.
