Without CONSULT-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

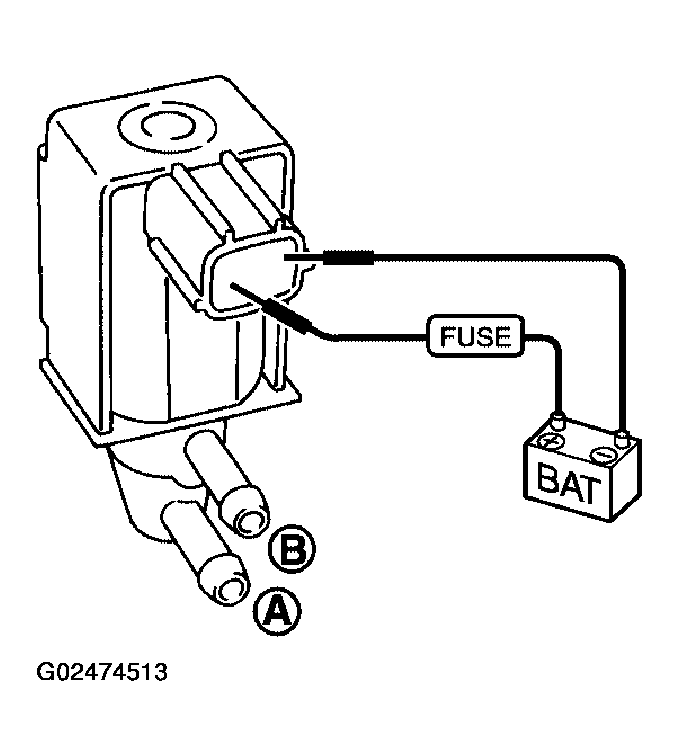

Check air passage continuity of EVAP canister purge volume control solenoid valve under the following conditions.
Courtesy of NISSAN MOTOR CO., U.S.A. AIR PASSAGE CONTINUITY TABLE
| Condition |
Air passage continuity between A and B |
| 12V direct current supply between terminals 1 and 2 |
Yes |
| No supply |
No |
