With CONSULT-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

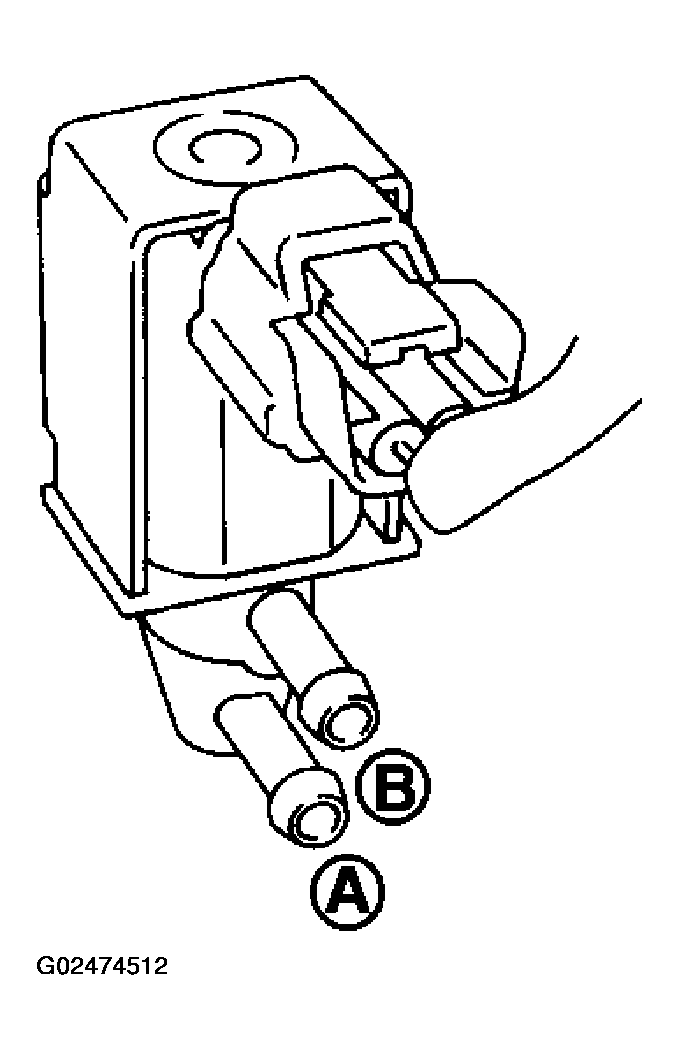

Check air passage continuity of EVAP canister purge volume control solenoid valve using "PURG VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II under the following conditions.
AIR PASSAGE CONTINUITY TABLE
| Condition (PURG VOL CONT/V value) | Air passage continuity between A and B |
|---|---|
| 100% | Yes |
| 0% | No |
