With Consult-II
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Start engine and warm it up to normal operating temperature.
- Turn ignition switch OFF and wait at least 10 seconds.
- Start engine and keep the engine speed between 3, 500 and 4, 000 RPM for at least 1 minute under no load.
- Let engine idle for 1 minute.
- Select "A/F SEN1(B1) P1278/P1279" or "A/F SEN1(B1) P1288/P1289" of "A/F SEN1" in "DTC WORK SUPPORT" mode with CONSULT-II.
- Touch "START".

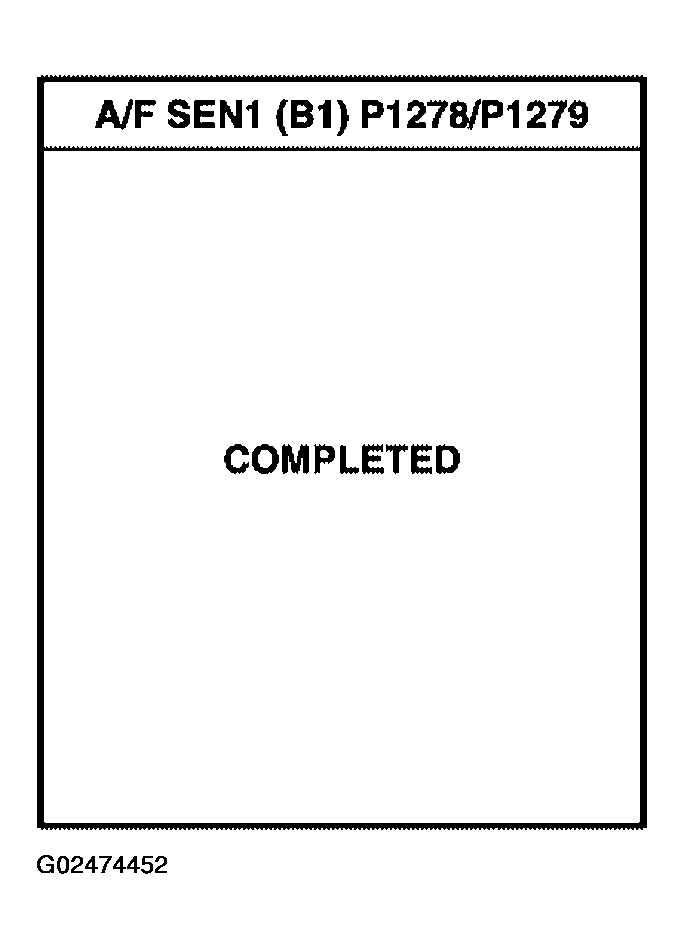

If "COMPLETED" appears on CONSULT-II screen, go to step 10.
If "COMPLETED" does not appear on CONSULT-II screen, go to the following step.

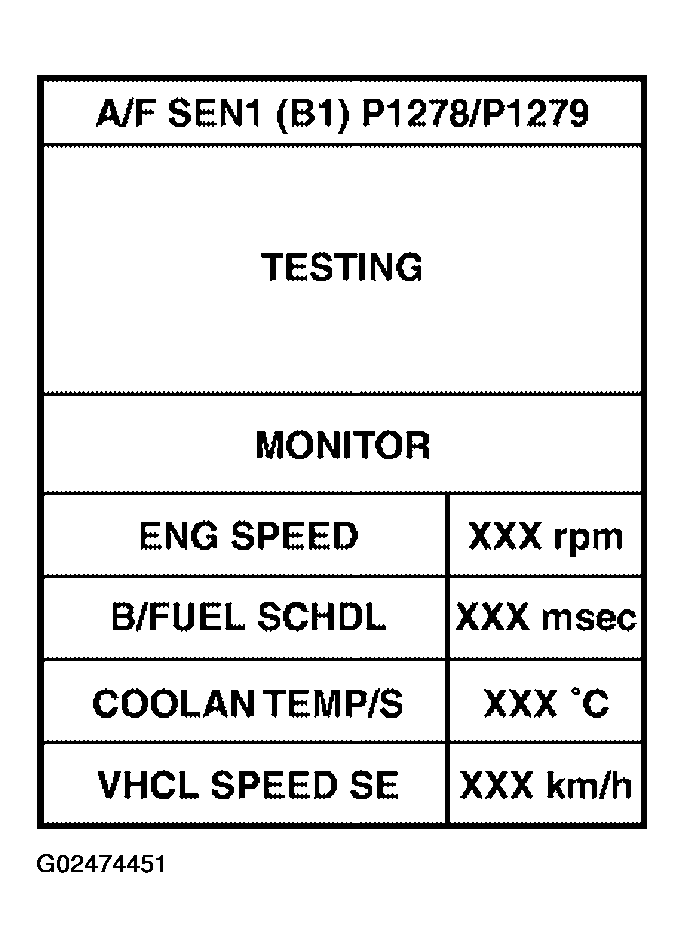

- After perform the following procedure, "TESTING" will be displayed on the CONSULT-II screen.
- Increase the engine speed up to 4, 000 to 5, 000 RPM and keep it for 10 seconds.
- Fully release accelerator pedal and then let engine idle for about 10 seconds.
If "TESTING" is not displayed after 10 seconds, refer to " TROUBLE DIAGNOSIS - SPECIFICATION VALUE " .
- Wait for about 20 seconds at idle at under the condition that "TESTING" is displayed on the CONSULT-II screen.
- Make sure that "TESTING" changes to "COMPLETED".

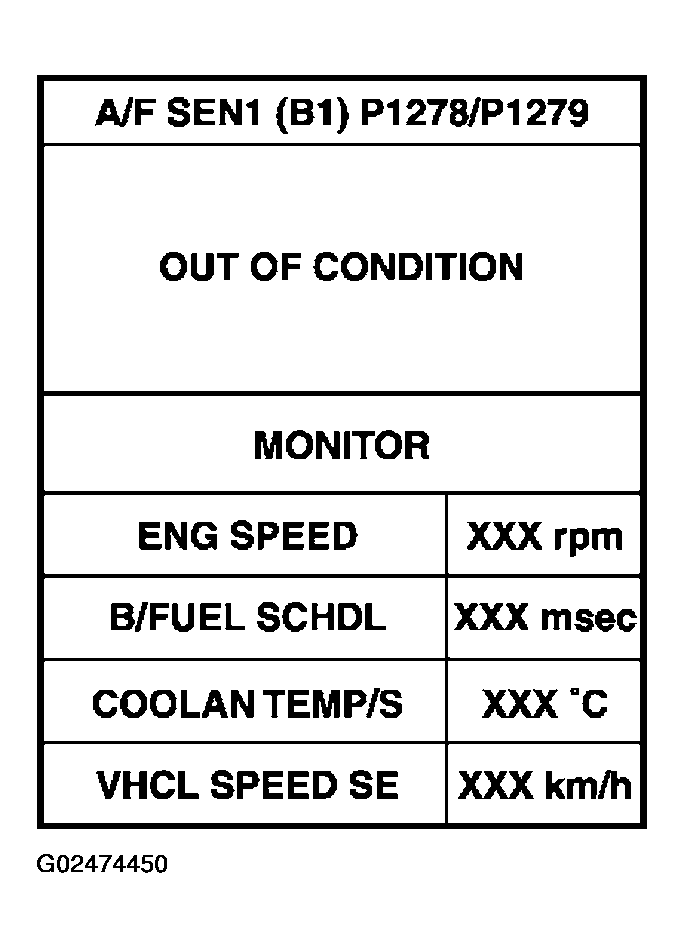

If "TESTING" changed to "OUT OF CONDITION", refer to " TROUBLE DIAGNOSIS - SPECIFICATION VALUE " .
- Make sure that "OK" is displayed after touching "SELF-DIAG RESULT".
If "NG" is displayed, go to "DIAGNOSTIC PROCEDURE ".
