Cooling Fan Motors-1 And -2

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect cooling fan motor harness connectors.
Supply cooling fan motor terminals with battery voltage and check operation.

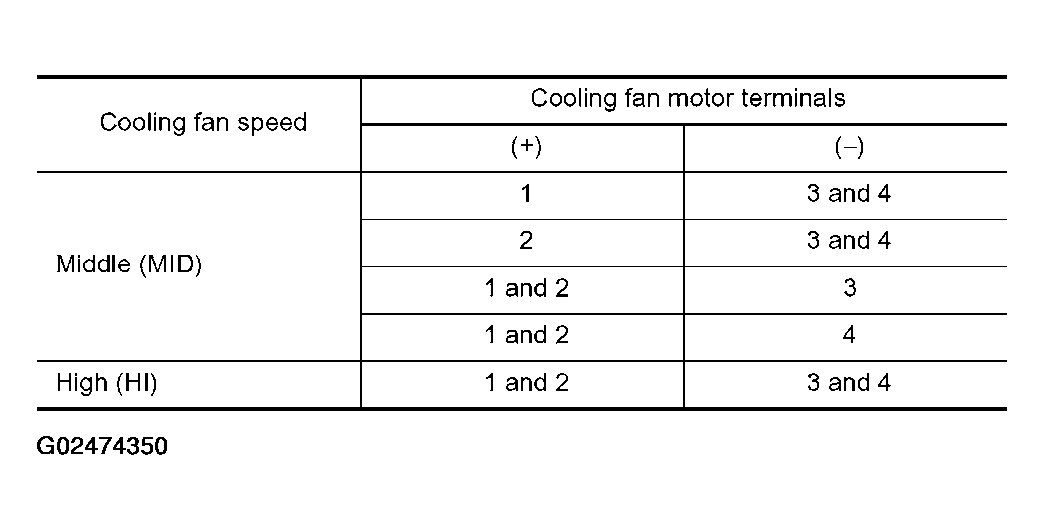

Fig 1: Cooling Fan Motor Terminals Reference
Courtesy of NISSAN MOTOR CO., U.S.A.

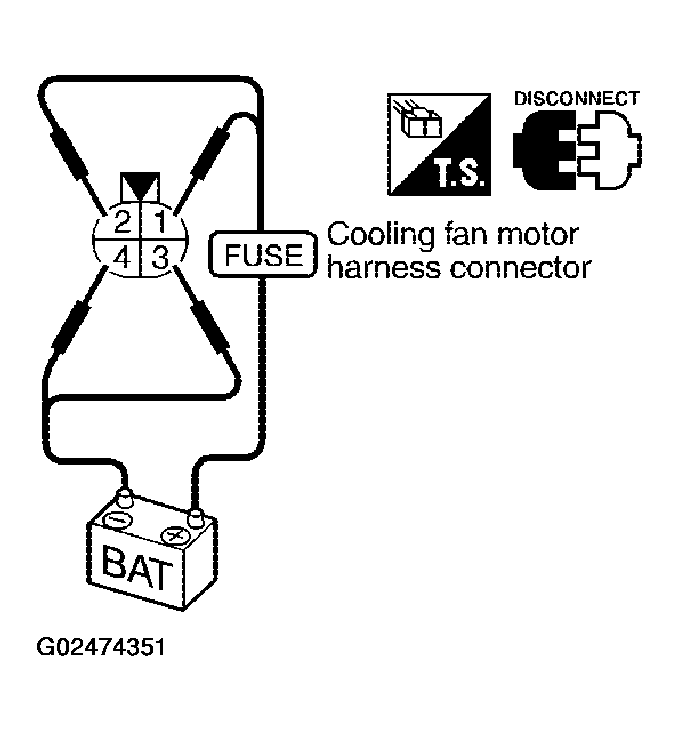

Fig 2: Checking Fan Operation
Courtesy of NISSAN MOTOR CO., U.S.A.

Cooling fan motor should operate.

If NG, replace cooling fan motor.
