With CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON and wait at least 1 second.
  2. Select "DATA MONITOR" mode with CONSULT-II.

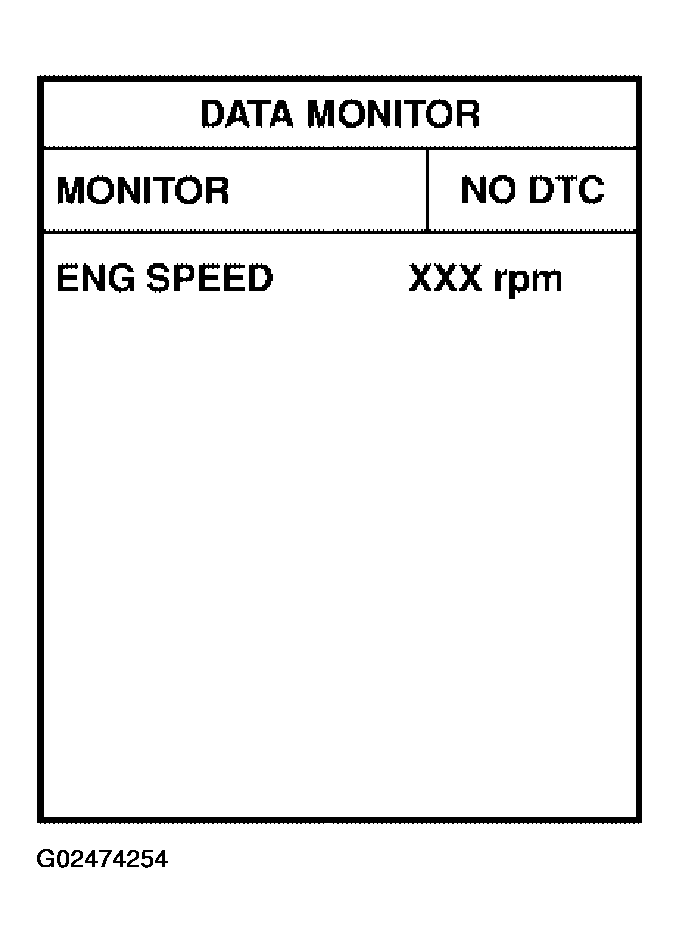

    Fig 1: CONSULT-II Data Monitor Display
    G02474254Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Shift selector lever to D position and wait at least 3 seconds.
  4. Shift selector lever to N, P position.
  5. Start engine and let it idle for 3 seconds.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".
