With CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Start engine and warm it up to normal operating temperature.
Select "EGR VOL CONT/V" in "ACTIVE TEST" mode with CONSULT-II.

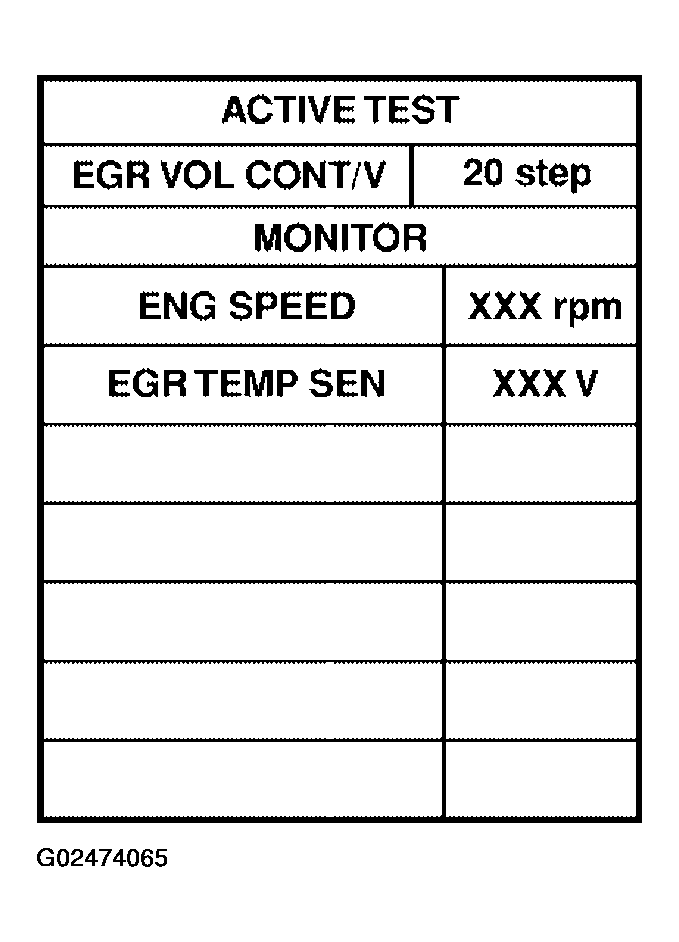

Fig 1: CONSULT-II Active Test Screen Display

Courtesy of NISSAN MOTOR CO., U.S.A.

Hold engine speed at 1, 500 RPM.
Touch "Qu" and set the EGR volume control valve opening to 50 step and check "EGR TEMP SEN" indication.
"EGR TEMP SEN" indication should decrease to less than 1.0V.

If the check result is NG, go to "DIAGNOSTIC PROCEDURE ".

If the check result is OK, go to the following step.
Turn ignition switch OFF and wait at least 10 seconds.
Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

Start engine and maintain the following conditions for at least 5 consecutive seconds.

SPECIFIED CONDITIONS TABLE

ENG SPEED	1, 200 - 2, 800 RPM
VHCL SPEED SE	10 km/h (6 MPH) or more
B/FUEL SCHDL	1.6 - 6.4 msec
Selector lever	Suitable position

If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

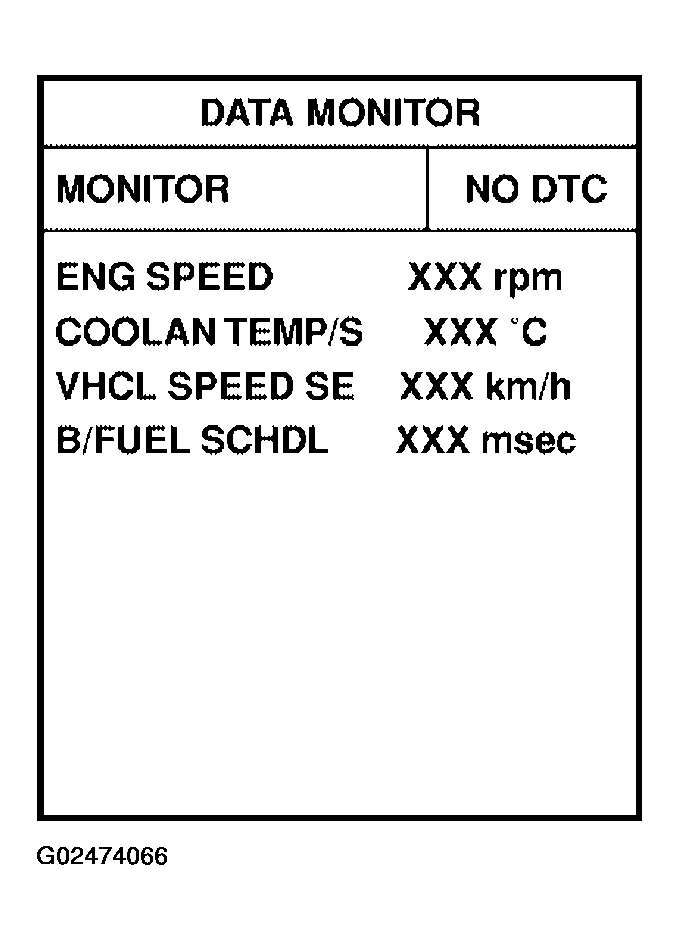

Fig 2: CONSULT-II Data Monitor Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
