With CONSULT-II

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Wait at least 5 seconds.
  4. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ". If DTC is not detected, go to next step.
  5. Start engine and wait at least 5 seconds.
  6. If DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

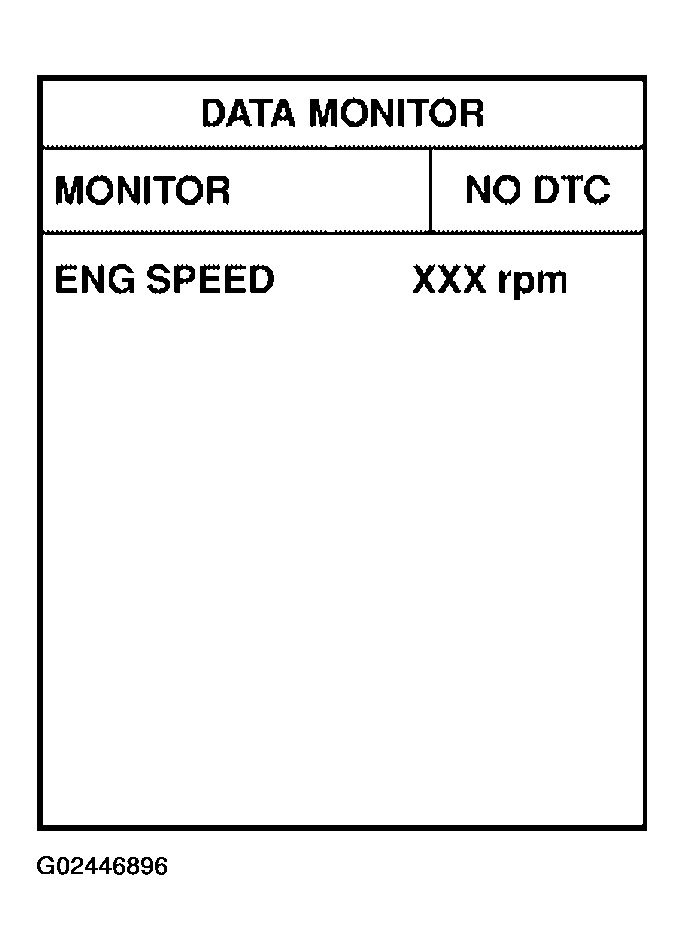

    Fig 1: CONSULT-II Data Monitor Screen Display
    G02446896Courtesy of NISSAN MOTOR CO., U.S.A.
