Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Set the front wheels in the straight-ahead position
  2. Remove the driver air bag module. Refer to "REMOVAL AND INSTALLATION - DRIVER AIR BAG MODULE ".
  3. Remove the steering wheel center nut.
  4. Remove the steering wheel using Tools.

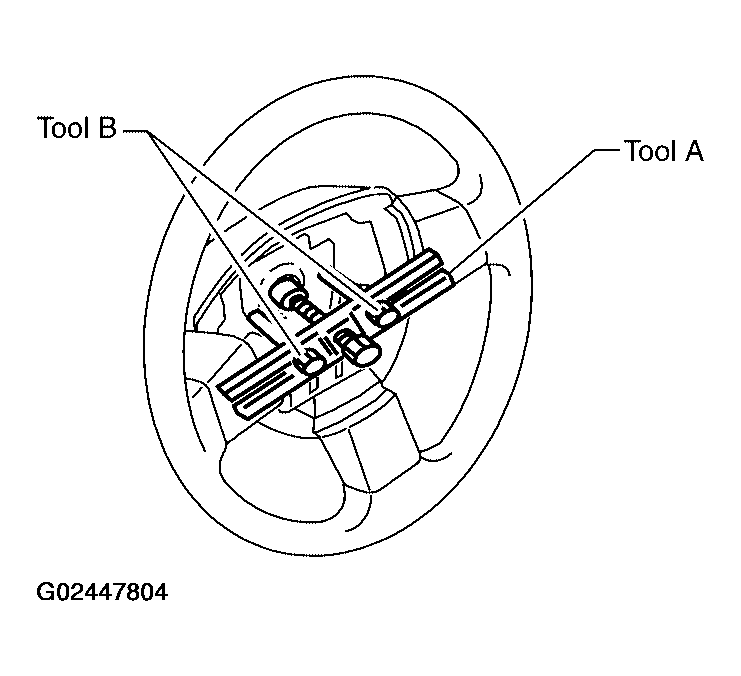

    Fig 1: Removing Steering Wheel Using Tools
    G02447804Courtesy of NISSAN MOTOR CO., U.S.A.
    • Tool number A: J-1859-A B: J-42578
  5. Place a piece of tape across the spiral cable so it will not be rotated out of position.
  6. Inspect the steering wheel near the puller holes for damage. If damaged, replace the steering wheel
