Front Wheel Turning Angle

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate steering wheel all the way right and left; measure turning angle. Refer to "GENERAL SPECIFICATIONS (FRONT) ".
  2. If it is not within specifications, check rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

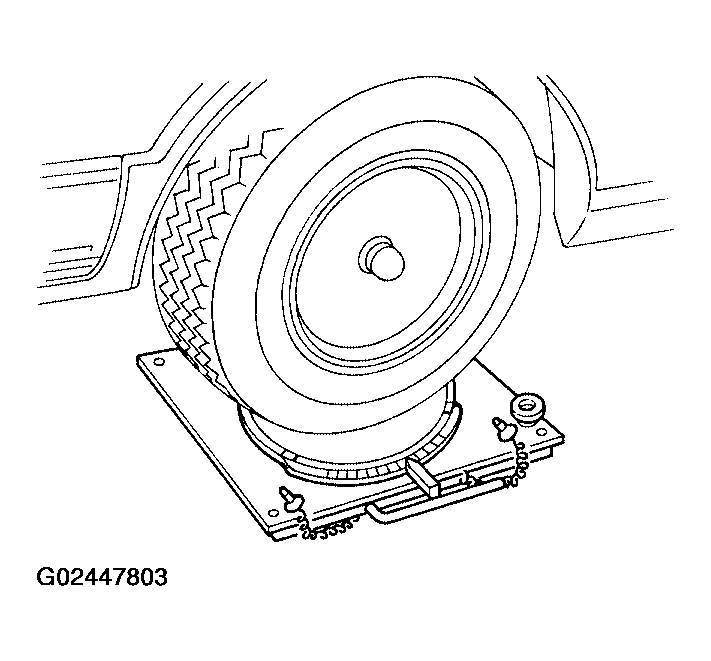

    Fig 1: Measuring Turning Angle
    G02447803Courtesy of NISSAN MOTOR CO., U.S.A.
