Checking Steering Wheel Play

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

With wheels in a straight-ahead position, check steering wheel play.

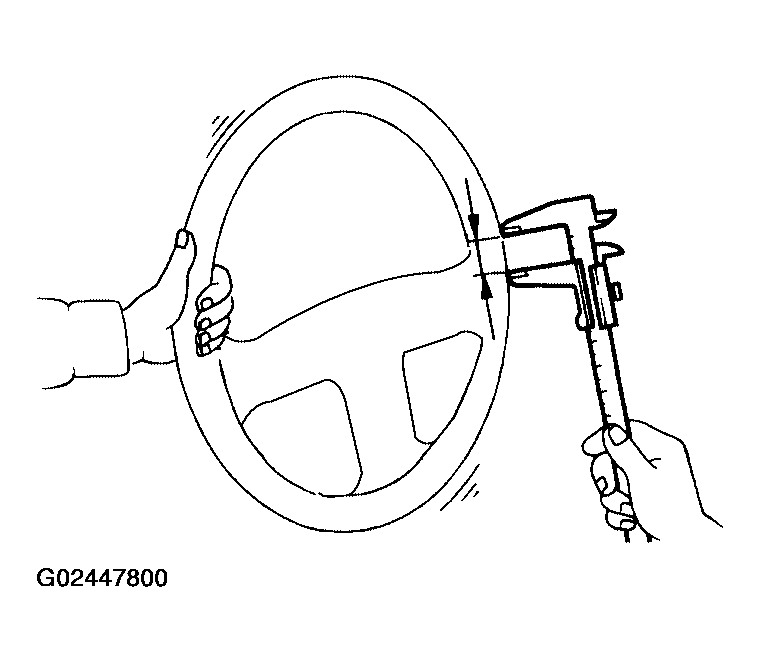

Fig 1: Checking Steering Wheel Play
Courtesy of NISSAN MOTOR CO., U.S.A.
- Steering wheel play: 35 mm (1.38 in) or less
If it is not within specification, check the following for looseness or worn components:
- Steering gear assembly
- Steering column
- Front suspension and axle
- Check steering system for looseness while moving the steering wheel in all directions.
  - Axial end play: 0 mm (0 in)
