Checking Neutral Position On Steering Wheel: Checking

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

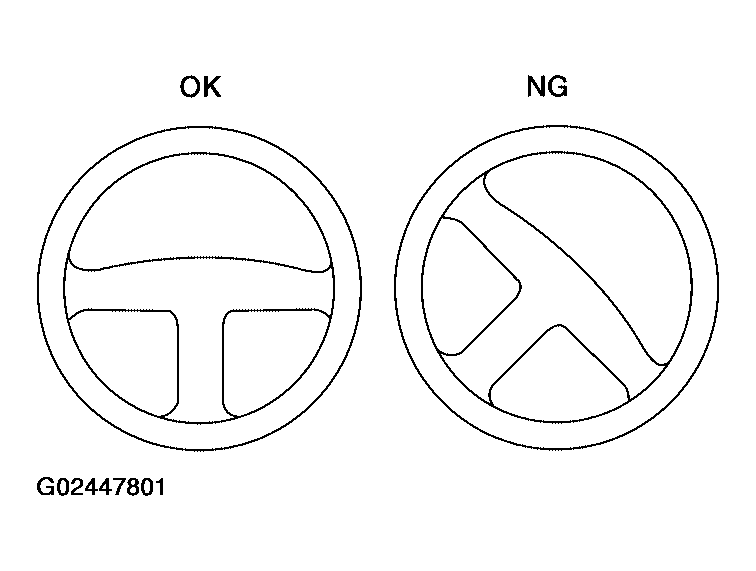

Fig 1: Checking Steering Wheel Positions
G02447801Courtesy of NISSAN MOTOR CO., U.S.A.
  1. Check that the steering wheel is in neutral position when driving straight ahead.
  2. If it is not in neutral position, remove the steering wheel and reinstall it correctly.
  3. If the neutral position is between two teeth, loosen tie-rod lock nuts. Turn the tie-rods by the same amount in opposite directions on both left and right sides.
