Disassembly and Assembly: Assembly

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Install the inner tie-rods.

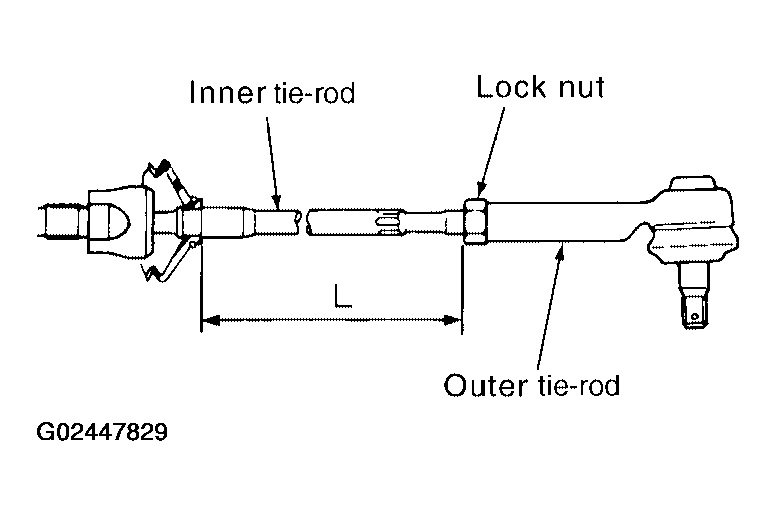

Fig 1: Installing Outer Tie-Rods
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the outer tie-rods to the specified length and tighten the outer tie-rod lock nut. Refer to "STEERING GEAR AND LINKAGE ".
Use Genuine High Temperature, High Strength Thread Locking Sealant (Red) or equivalent. Refer to "RECOMMENDED CHEMICAL PRODUCTS AND SEALANTS ".
- Outer tie-rod lock nut: 41.5 N.m (4.2 kg-m, 31 ft-lb)
Measure rack stroke. Refer to "STEERING GEAR AND LINKAGE ".

Fig 2: Measuring Rack Stroke
Courtesy of NISSAN MOTOR CO., U.S.A.
Before installing the dust boot, coat the contact surfaces between the boot and the inner tie-rod with grease.

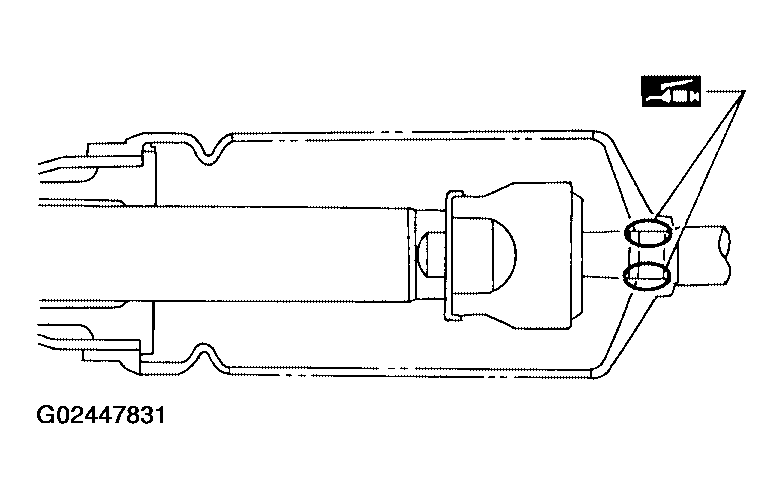

Fig 3: Coating Contact Surfaces Between Boot & Inner Tie-Rod With Grease
Courtesy of NISSAN MOTOR CO., U.S.A.
Install the boot clamps and boot bands securely.

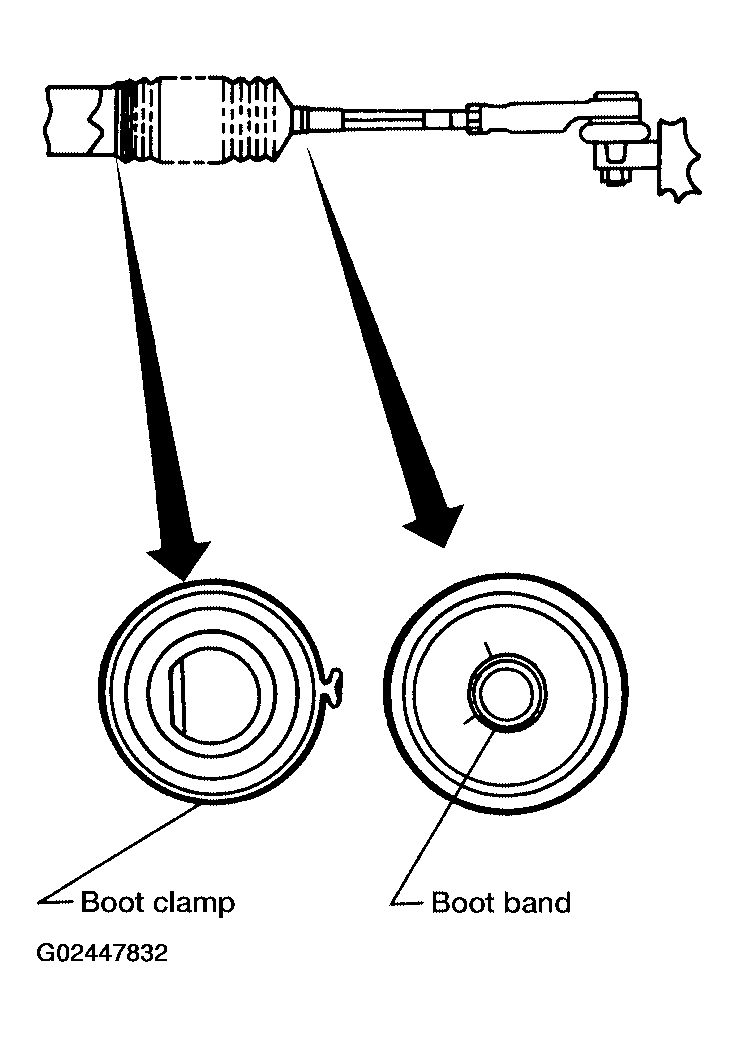

Fig 4: Installing Boot Clamps & Boot Bands Securely
Courtesy of NISSAN MOTOR CO., U.S.A.
