Wiring Diagram - T/WARN -

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

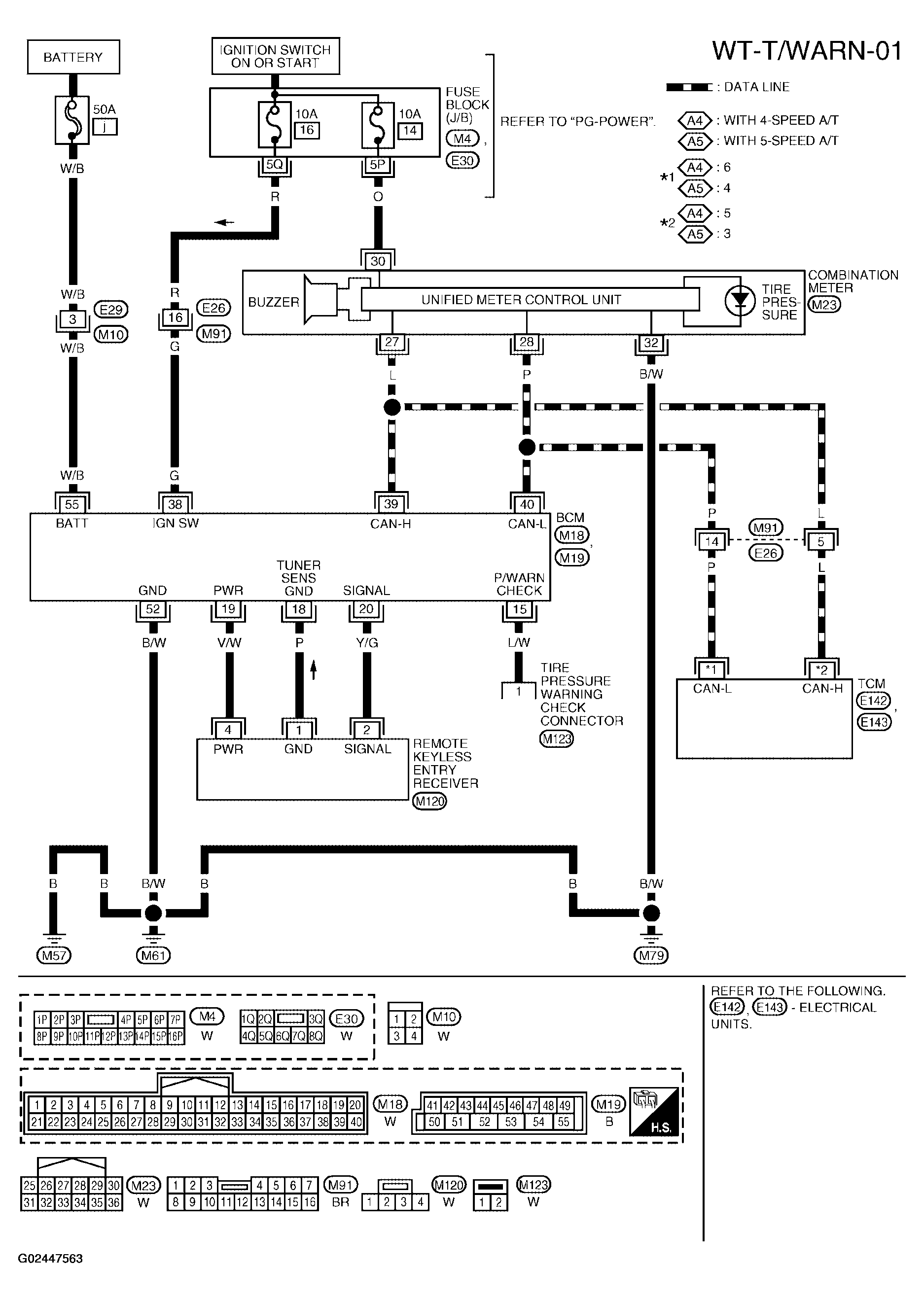

Fig 1: Wiring Diagram - Tire Pressure Warning System (WT-T/WARN-01)

Courtesy of NISSAN MOTOR CO., U.S.A.
