With Transmitter Activation Tool

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

With the transmitter activation tool pushed against the front left transmitter, press the button for 5 seconds.

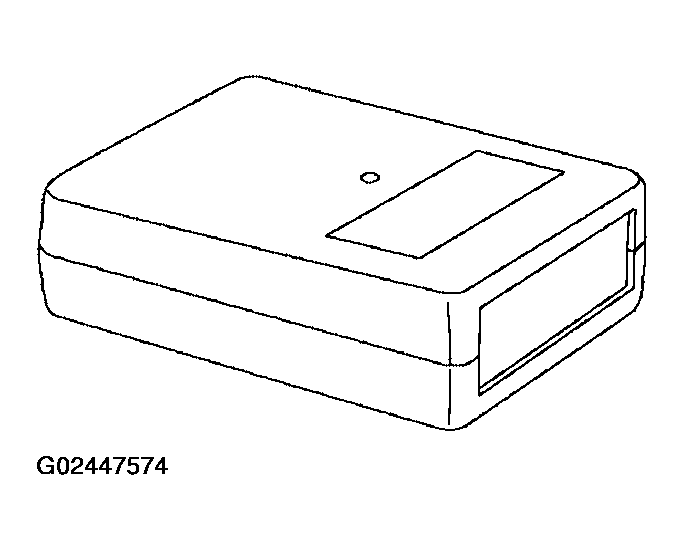

Fig 1: Identifying Transmitter Activation Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
- Tool number: (J-45295)
- With ignition switch ON, as the hazard warning lamp flashes per the follow diagram, the respective transmitter then must be woken up.
When the BCM finishes assigning each tire ID, the BCM flashes the hazard warning lamps and trailer flasher lamps (if equipped) and sends flashing indicator status by CAN according to the time chart in Fig 2. Please see trailer flasher specification details of trailer flashing lamps since the BCM controls trailer flasher lamps as brake lamps. Refer to TRAILER TOW .

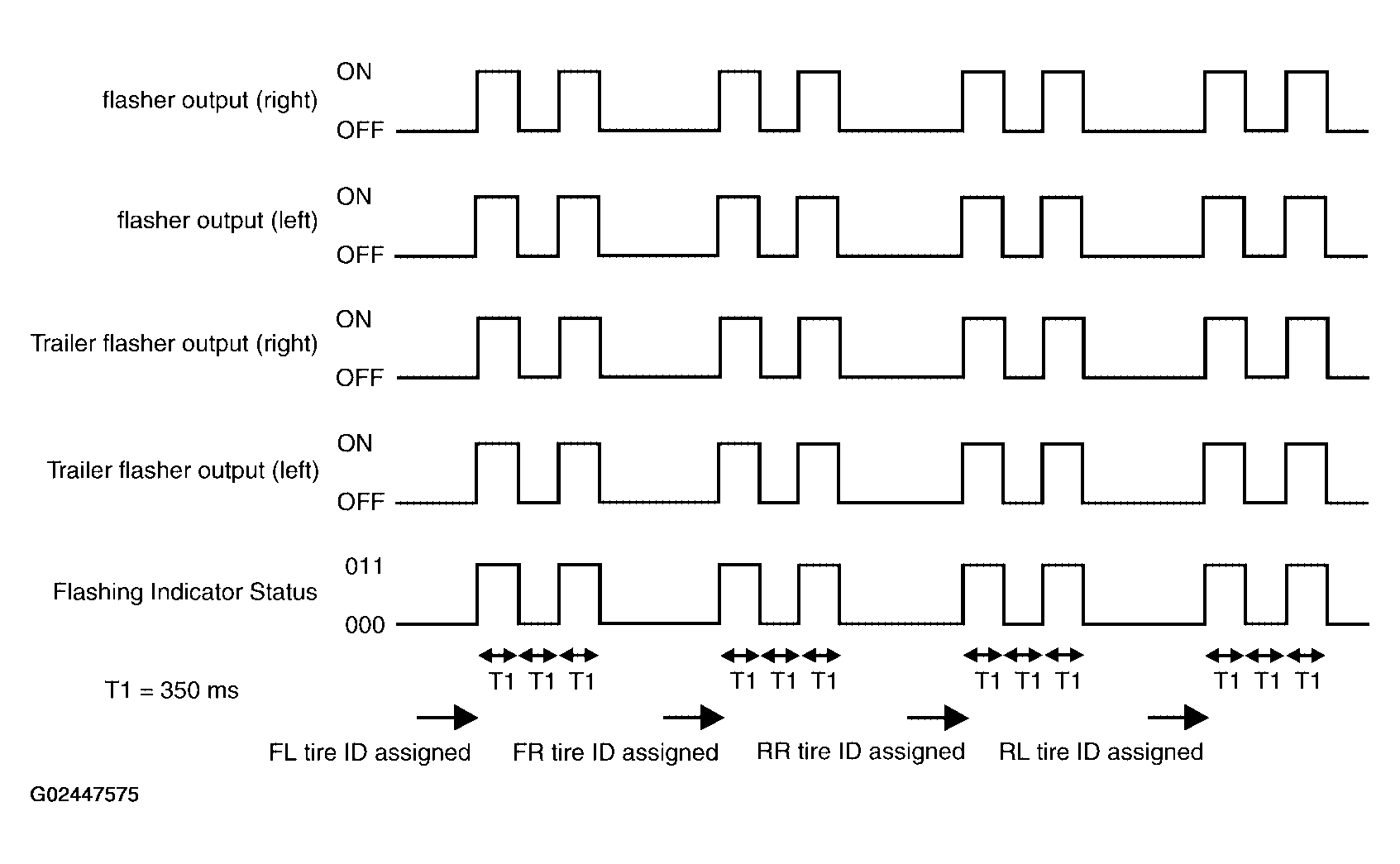

Fig 2: Flashing Indicator Status Time Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
After completing wake up of all transmitters, make sure low tire pressure warning lamp goes out.
