Terminals and Reference Value for BCM

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

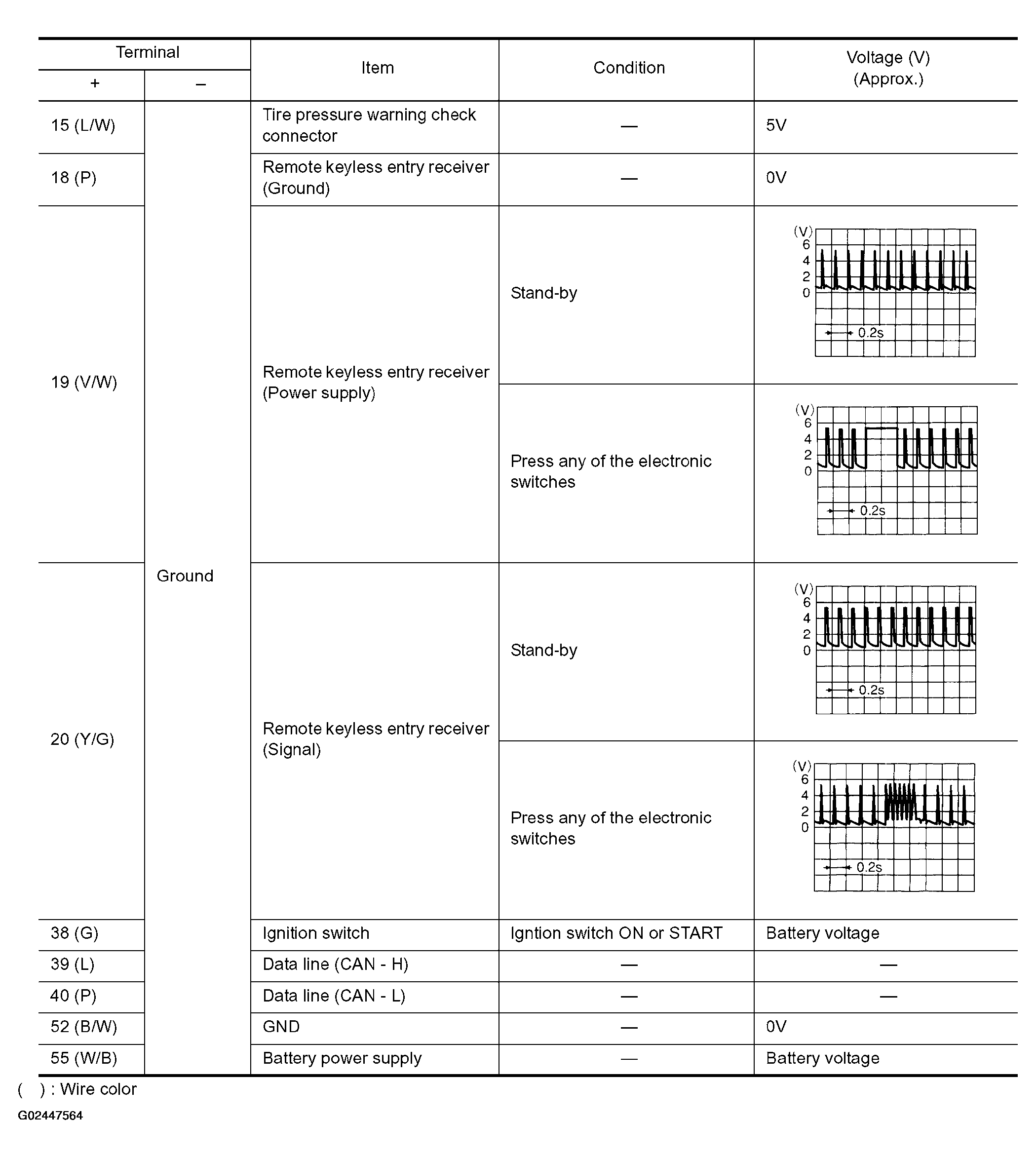

Fig 1: BCM Terminals & Reference Value Chart - Tire Pressure Warning & Remote Keyless Entry
G02447564Courtesy of NISSAN MOTOR CO., U.S.A.
