Data Monitor Mode

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

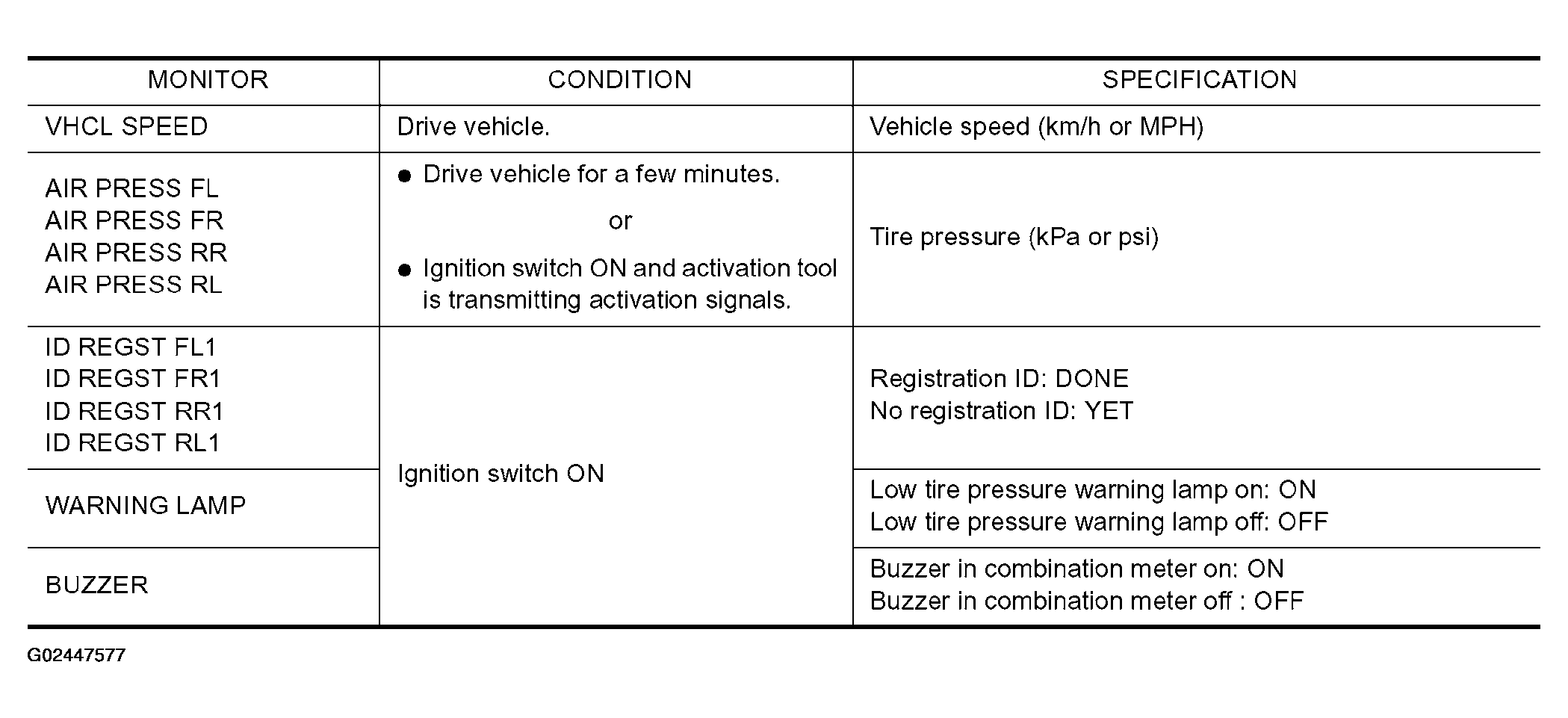

Fig 1: Data Monitor Mode Reference Chart - Tire Pressure Monitor System
G02447577Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE: Before performing the self-diagnosis, be sure to register the ID, or else the actual malfunction location may be different from that displayed on CONSULT-II.
