Id Registration Without Transmitter Activation Tool

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.
Select "START (NISSAN BASED VHCL)".

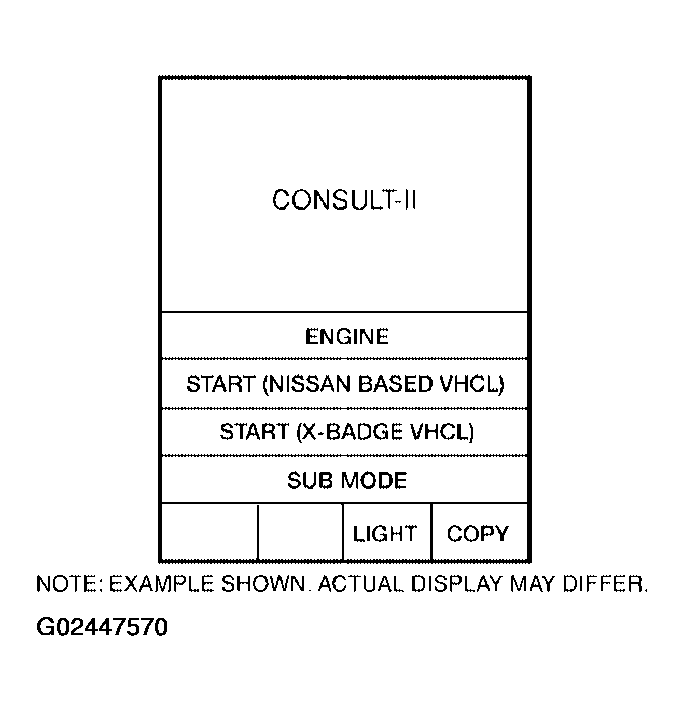

Fig 1: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
NOTE: If "BCM" is not indicated, go to CAN COMMUNICATION .

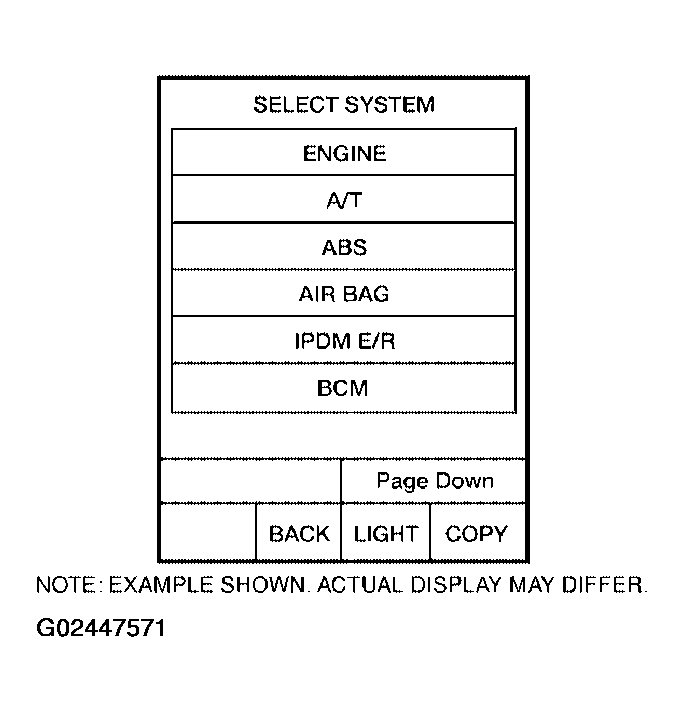

Fig 2: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "AIR PRESSURE MONITOR" on "SELECT WORK ITEM" screen.
Select "WORK SUPPORT" on "SELECT DIAG MODE" screen, and select "ID REGIST".

Adjust the tire pressure to the values shown in the TIRE PRESSURE SPECIFICATION table below for ID registration, and drive the vehicle at 15 km/h (9.4 MPH) or more for a few minutes.

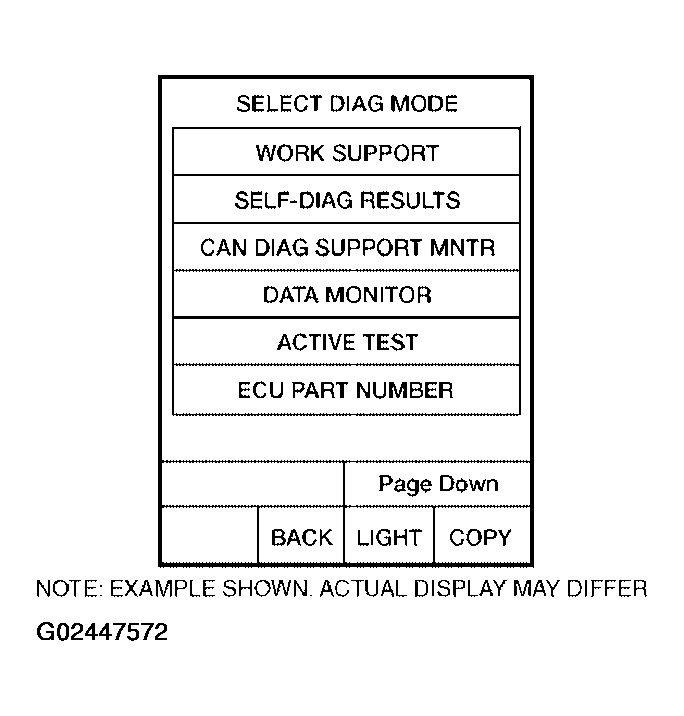

Fig 3: CONSULT-II Display - SELECT DIAG MODE

Courtesy of NISSAN MOTOR CO., U.S.A.

TIRE PRESSURE SPECIFICATIONS

Tire position	Tire pressure kPa (kg/cm² , psi)
Front - Left	250 (2.5, 36)
Front - Right	230 (2.3, 33)
Rear - Right	210 (2.1, 30)
Rear - Left	190 (1.9, 27)

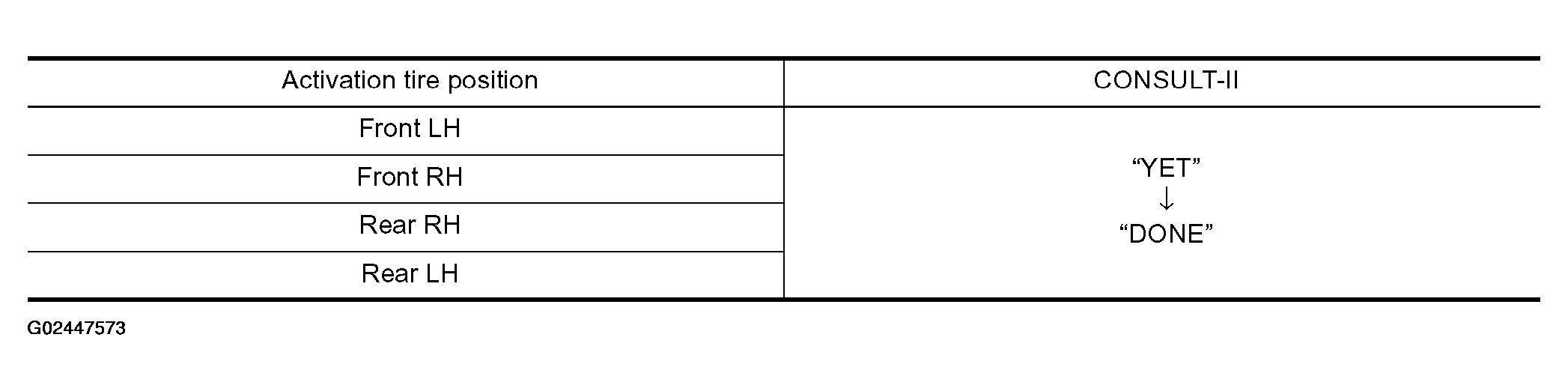

Fig 4: Tire ID Registration Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

After completing all ID registrations, press "END" to complete the procedure.
Inflate all tires to proper pressure.
Tire pressure

16 inch tire: 240 kPa (2.4 kg/cm ² , 35 psi)

17 inch tire: 240 kPa (2.4 kg/cm ² , 35 psi)
