Id Registration With Transmitter Activation Tool

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

This procedure must be done after replacement of a low tire pressure warning transmitter or BCM.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunction might be detected during self-diagnosis depending on control unit which carry out CAN communication.

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.
Select "START (NISSAN BASED VHCL)".

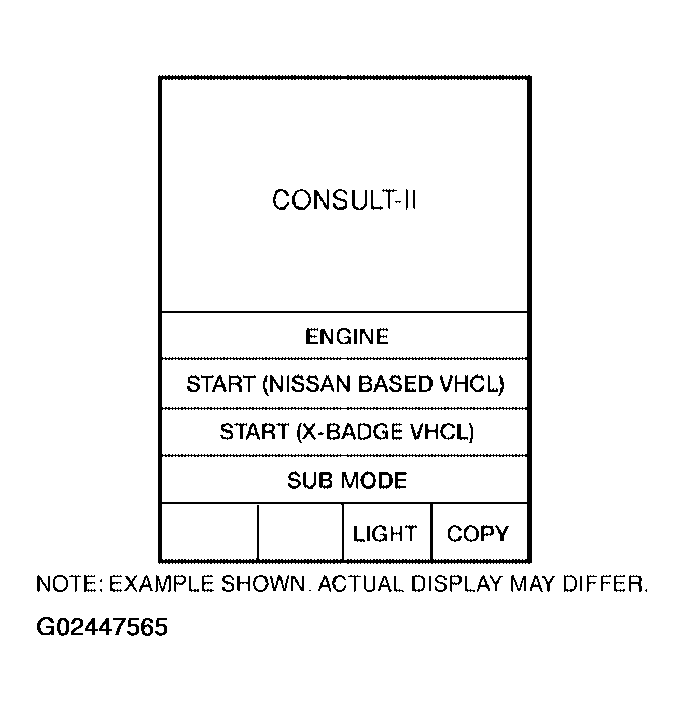

Fig 1: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
NOTE: If "BCM" is not indicated, go to CAN COMMUNICATION .

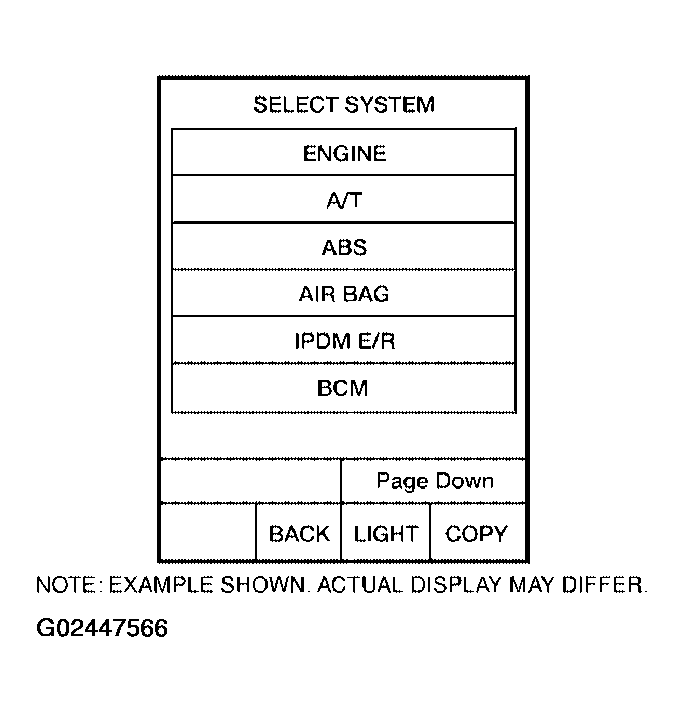

Fig 2: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Select "AIR PRESSURE MONITOR" on "SELECT WORK ITEM" screen.
Select "WORK SUPPORT" on "SELECT DIAG MODE" screen, and select "ID REGIST".

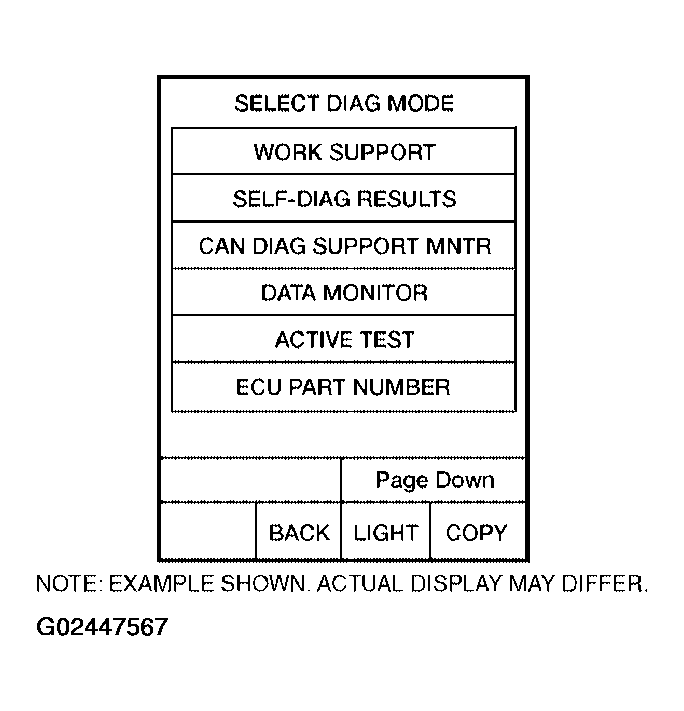

Fig 3: CONSULT-II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
With the transmitter activation tool pushed against the front left transmitter position of the tire air valve, press the button for 5 seconds.

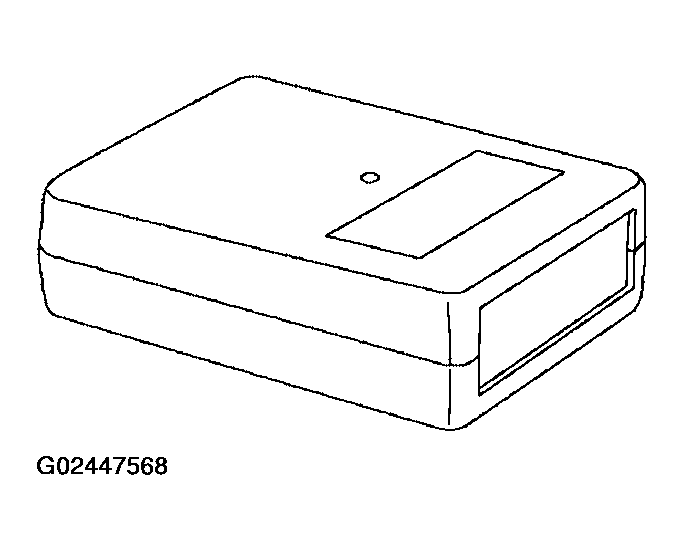

Fig 4: Identifying Transmitter Activation Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
- Tool number: (J-45295)
Register the IDs in order from FR LH, FR RH, RR RH and RR LH. When ID registration of each wheel has been completed, a buzzer sounds and the hazard warning lamps flash.

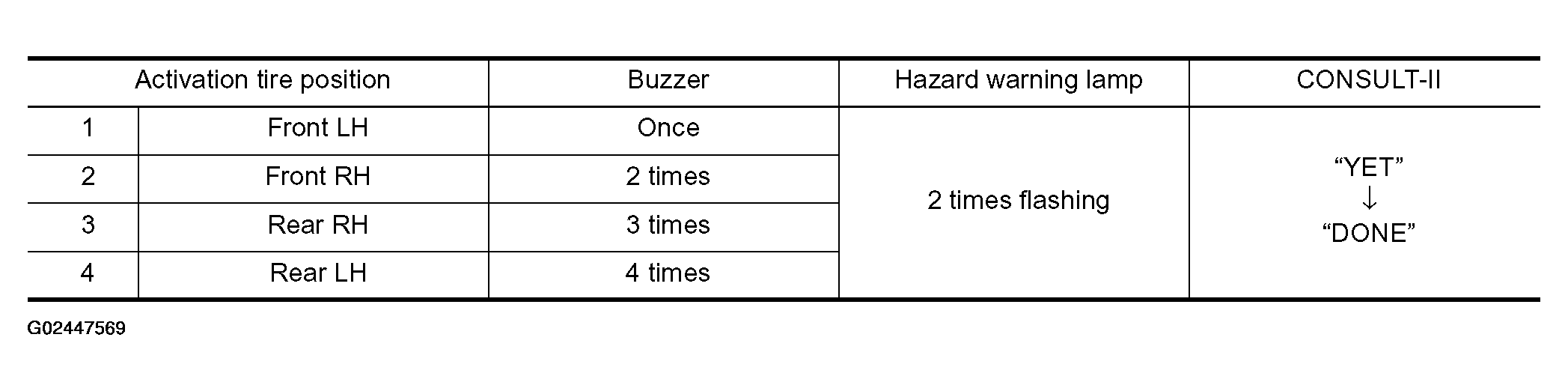

Fig 5: Tire ID Registration Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
After completing all ID registrations, press "END" to complete the procedure.
NOTE: Be sure to register the IDs in order from FR LH, FR RH, RR RH, to RR LH, or the self-diagnostic results display will not function properly.
