CONSULT-II Function (BCM)

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CONSULT-II can display each diagnostic item using the diagnostic test modes shown in Fig 1.

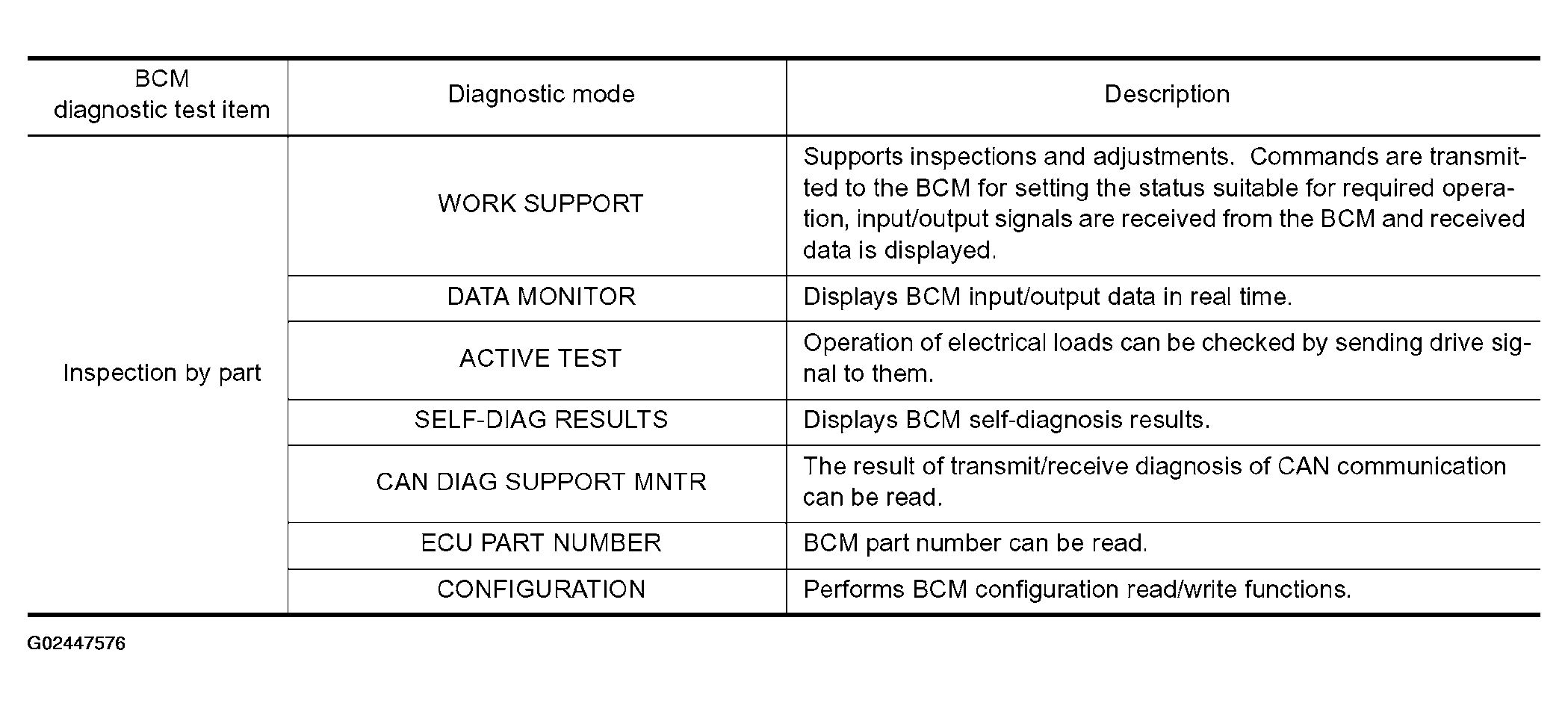

Fig 1: CONSULT-II Diagnostic Mode Function Chart
G02447576Courtesy of NISSAN MOTOR CO., U.S.A.
