Aluminum Wheel

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

Check tires for wear and improper inflation.
Check wheels for deformation, cracks and other damage. If deformed, remove wheel and check wheel runout.
1. Remove tire from aluminum wheel and mount on a tire balance machine.
2. Set dial indicator as shown in Fig 1.

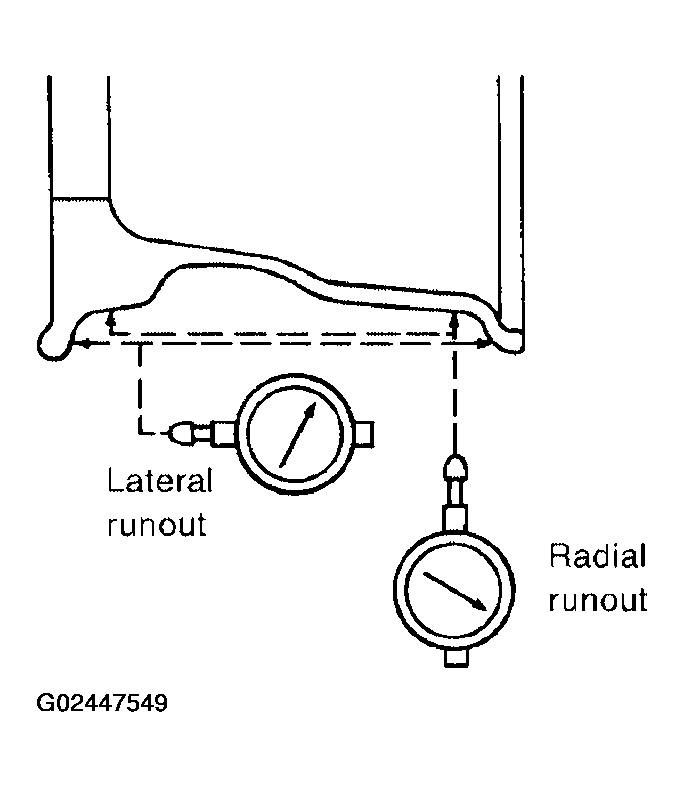

  Fig 1: Checking Wheel Lateral & Radial Runout
  Courtesy of NISSAN MOTOR CO., U.S.A.
  - Wheel runout (Dial indicator value): Refer to SERVICE DATA .
