Removal And Installation: Transmitter: Removal

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Deflate tire. Unscrew transmitter retaining nut and allow transmitter to fall into tire.
  2. Gently bounce tire so that transmitter falls to bottom of tire. Place on tire changing machine and break both tire beads ensuring that the transmitter remains at the bottom of the tire.

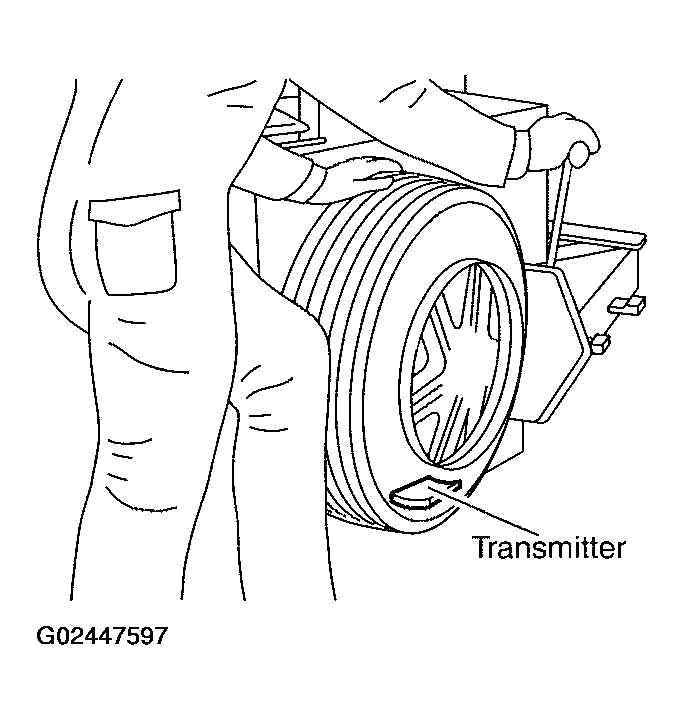

    Fig 1: Locating Transmitter Retaining Nut And Allow Transmitter To Fall Into Tire
    G02447597Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn tire so that valve hole is at bottom and bounce so that transmitter is near valve hole. Carefully lift tire onto turntable and position valve hole (and transmitter) 270 degrees from mounting/dismounting head.

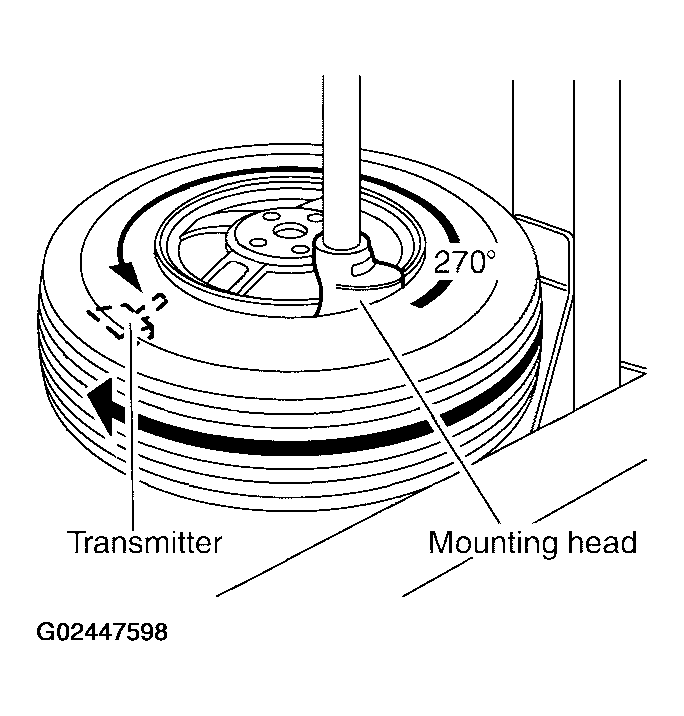

    Fig 2: Turning Tire To Adjust Transmitter Is Near Valve Hole
    G02447598Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Lubricate tire well and remove first side of the tire. Reach inside the tire and remove the transmitter.
