Removal And Installation: Transmitter: Installation

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Put first side of tire onto rim.

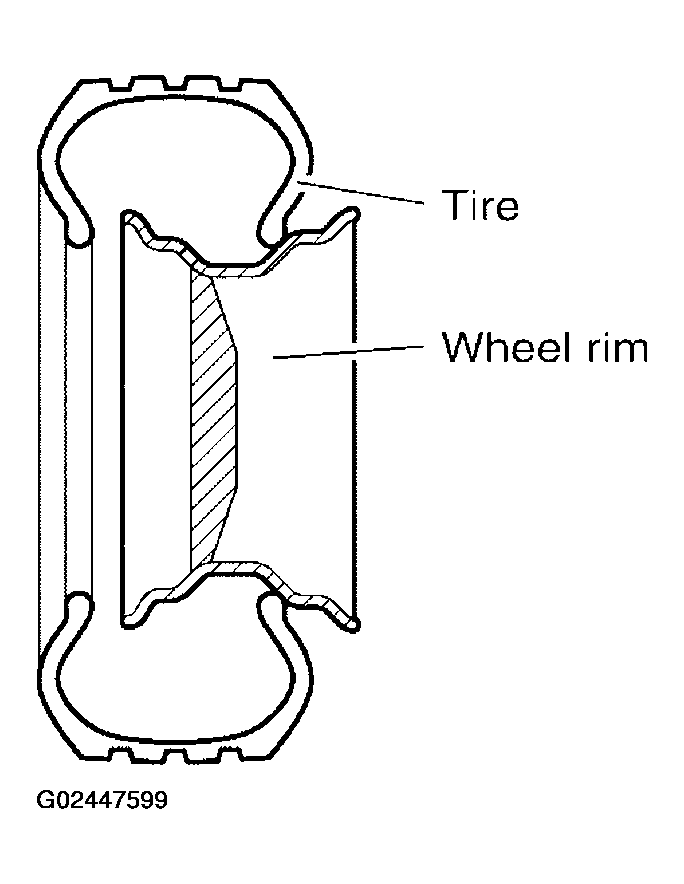

    Fig 1: Installing First Side Of Tire Onto Rim
    G02447599Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Mount transmitter on rim and tighten nut to the specification shown in Fig 2.

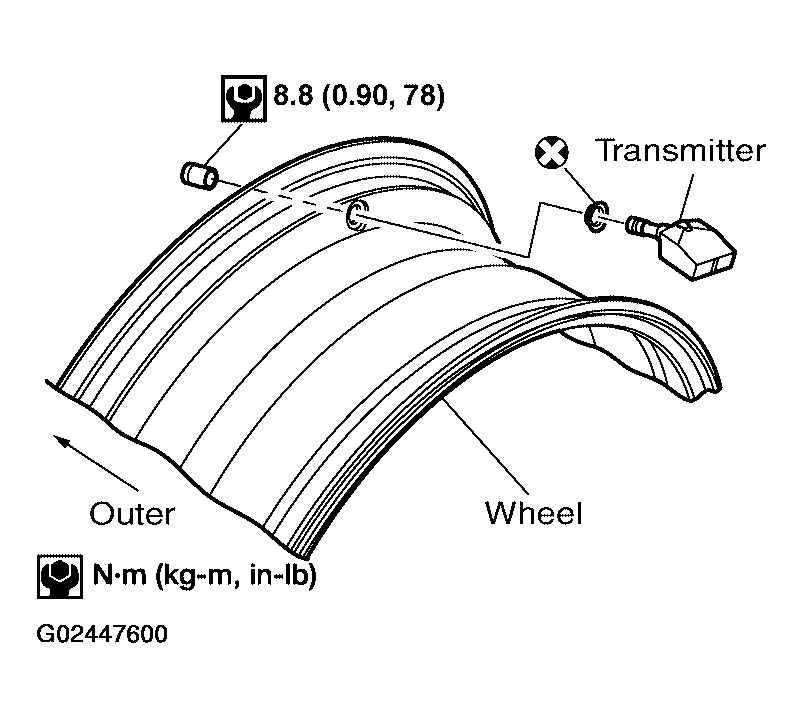

    Fig 2: Tightening Nut Mount Transmitter On Rim - With Torque Specifications
    G02447600Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Place wheel on turntable of tire machine. Ensure that transmitter is 270 degrees from mounting head when second side of tire is fitted.
    NOTE: Do not touch transmitter at mounting head.

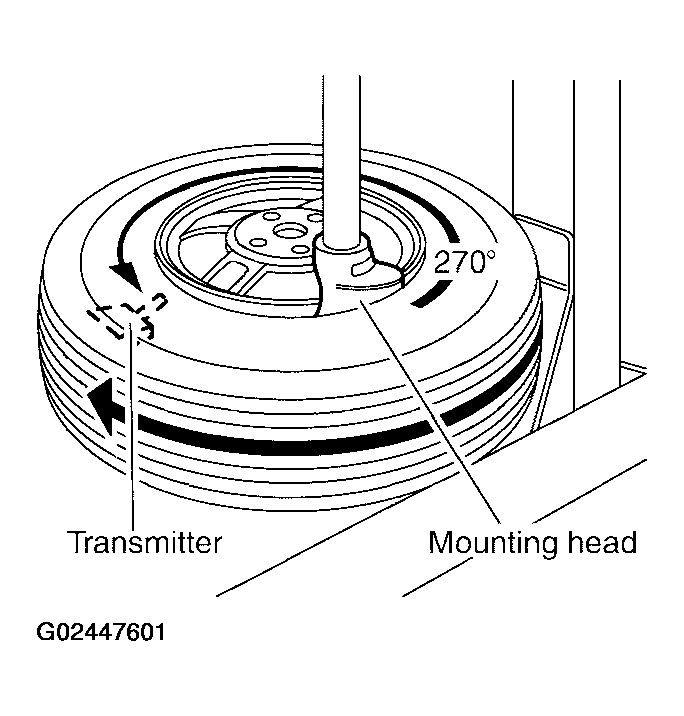

    Fig 3: Placing Wheel On Turntable Of Tire Machine
    G02447601Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Lubricate tire well and fit second side of tire as normal. Ensure that tire does not rotate relative to rim.
  5. Inflate tire and fit to appropriate wheel position.
